| Specification | Description |
|---|---|

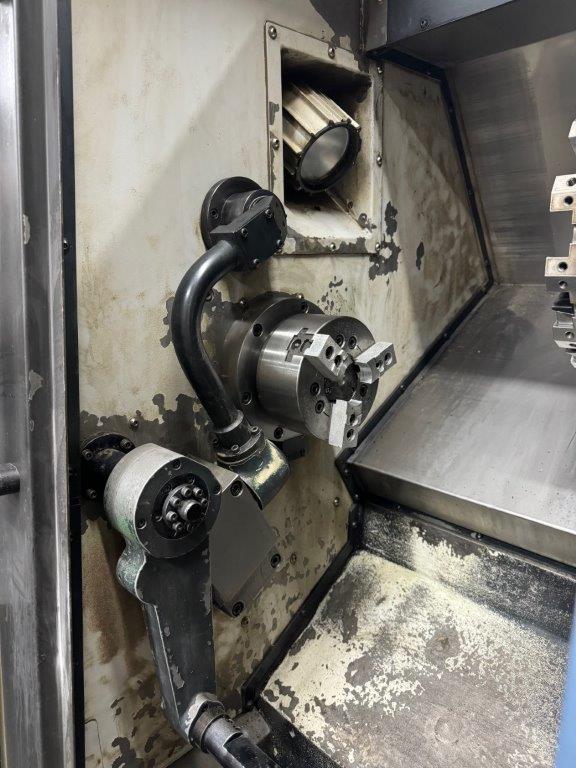

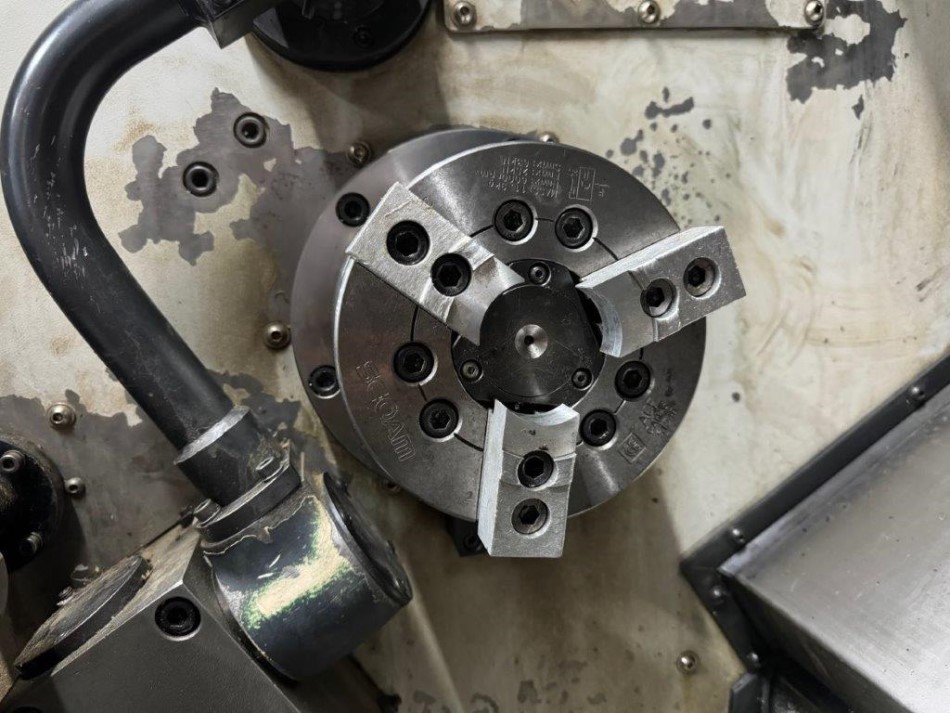

| CHUCK SIZE | 6 in. |
| MAXIMUM DIAMETER BAR CAPACITY | 1.81 in. |
| MAXIMUM SWING OVER BED | 20.1 in. |
| MAXIM SWING OVER CARRIAGE | 11.4 in. |
| MAXIMUM TURNING DIAMETER / STD | 12.6 in. / 6.69 in. |
| MAXIMUM MACHINING LENGTH | 12.7 in. |
| MAIN MOTOR | 20 HP |

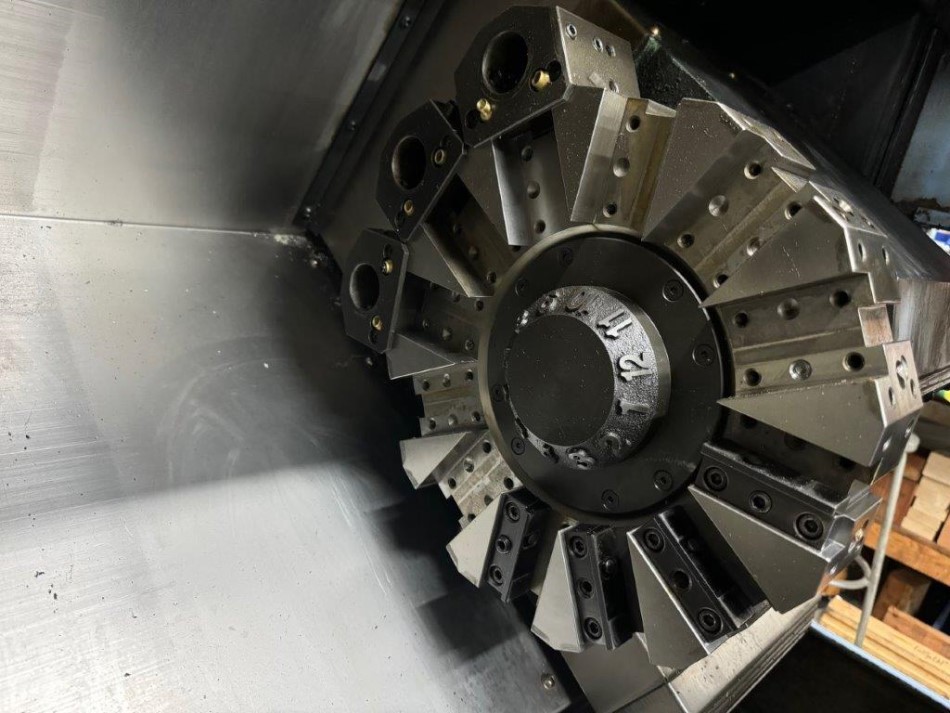

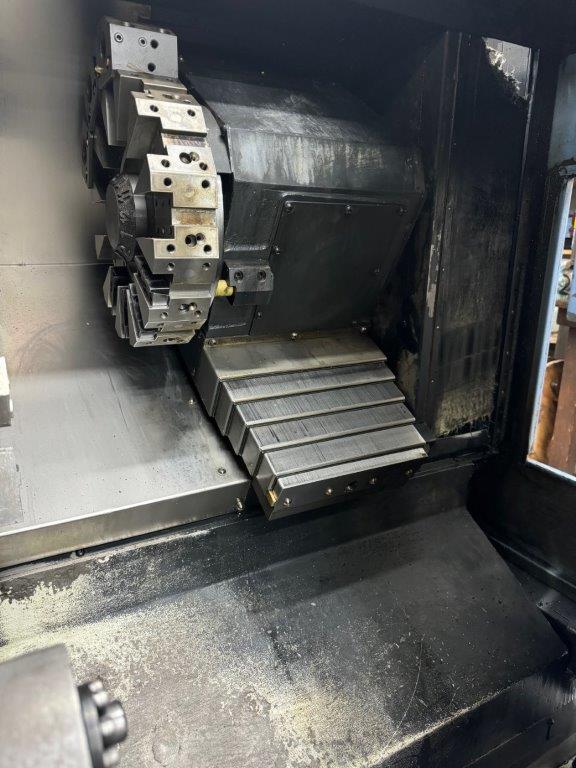

| NUMBER OF TOOLS | 12 |
| SPINDLE SPEED | 60 - 6000 RPM |
| SPINDLE BORE | 2.09 in. |
| SPINDLE NOSE | A2-5 |
| SPINDLE TORQUE | 70.4 LBS. |
| X-AXIS RAPID TRAVERSE RATE | 1181 IPM |
| Z-AXIS RAPID TRAVERSE RATE | 1147 IPM |
| X-AXIS TRAVEL | 6.9 in |
| Z-AXIS TRAVEL | 13 in. |
| TURRET INDEX (SINGLE STEP) | 0.15 sec. |
| DIMENSIONS | 91 in. x 63 in. x 63 in. |
| WEIGHT | 7,700 LBS |
Equipped With:
