| Specification | Description |
|---|---|
| SWING OVER BED | 30" |

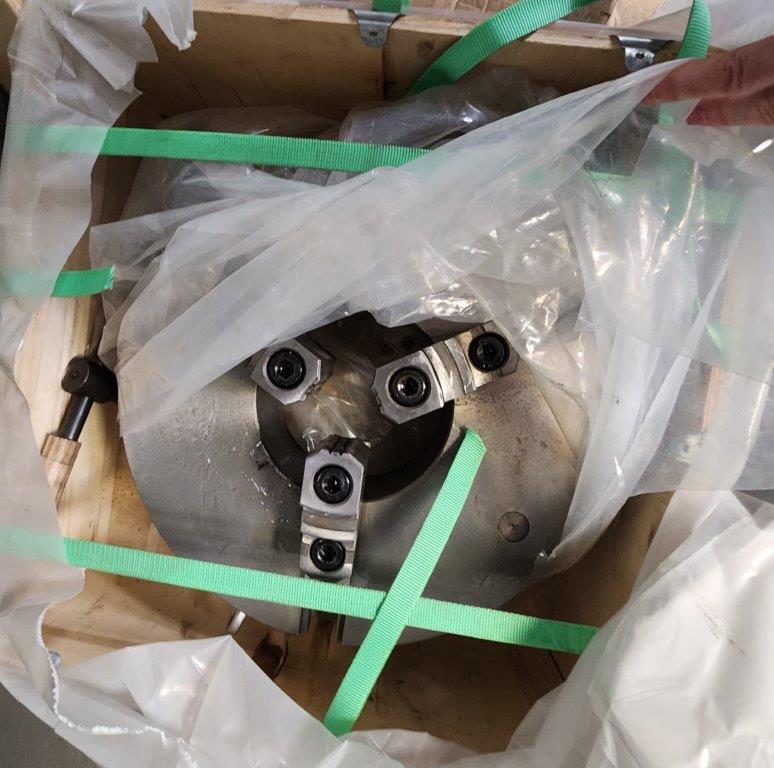

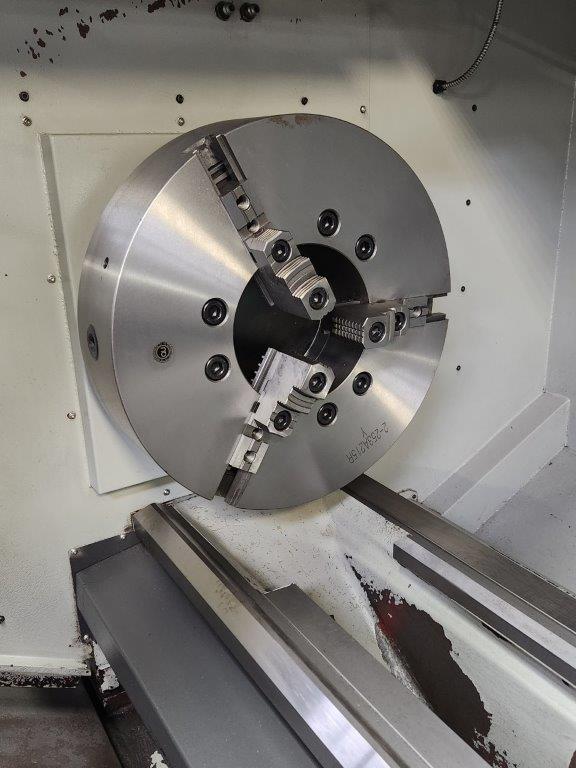

| CHUCK SIZE | 25" |

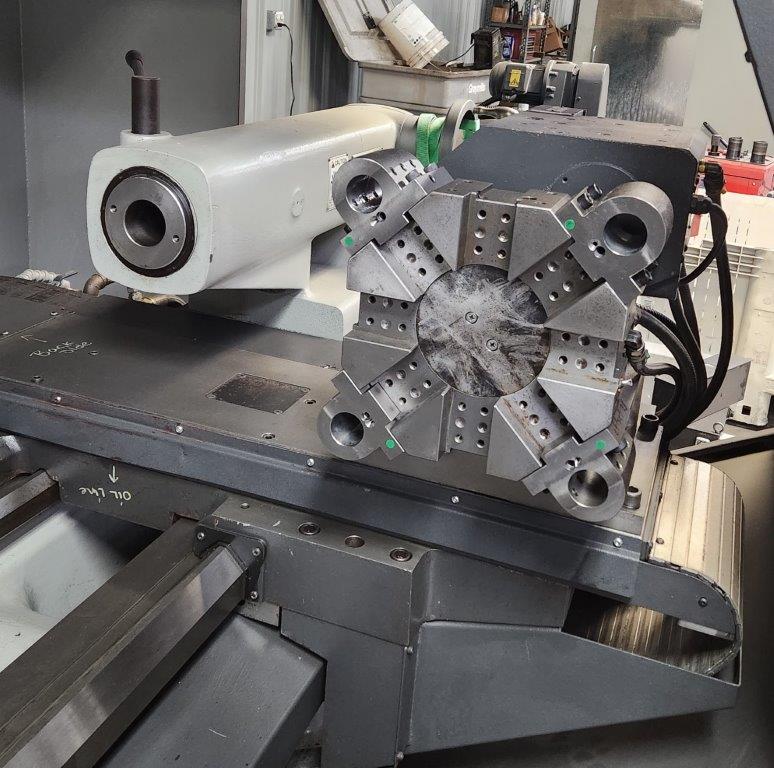

| SWING OVER CROSS SLIDE W/ 8 STATION TURRET | 22" |
| SWING OVER CROSS SLIDE | 19" |
| CENTER HEIGHT | 15" |
| BED WIDTH OF WAYS | 18" |
| CENTERS | 80" |
| X CROSS SLIDE TRAVEL | 19.7" |
| SPINDLE NOSE | A2-15 |

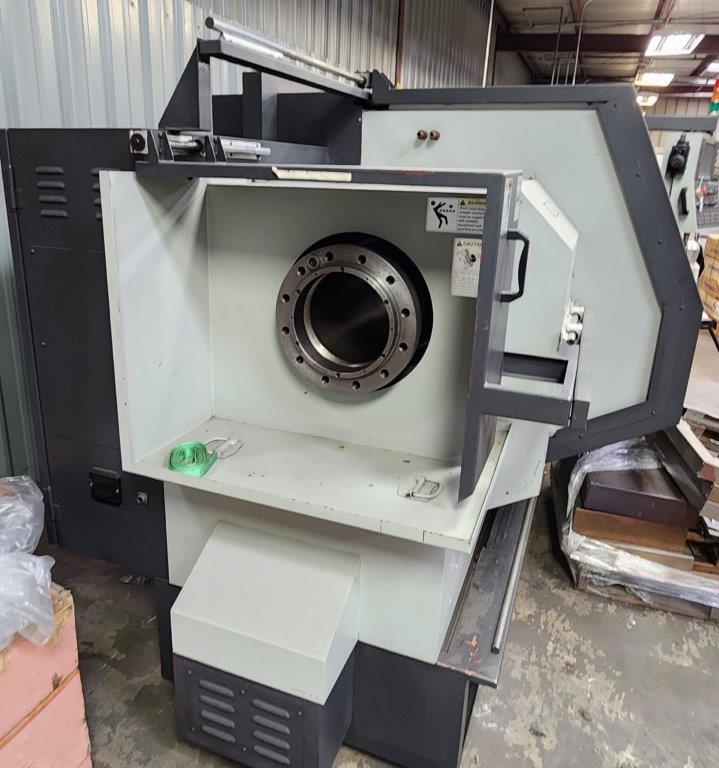

| SPINDLE BORE | 10" (big bore) |
| SPINDLE SPEEDS - LOW RANGE | 18-186 RPM |
| SPINDLE SPEEDS - HIGH RANGE | 60-600 |
| MOTOR HP | 30 HP |
| FOOT PRINT | 222" x 85" x 80" |
| WEIGHT - NET | 13,300 LBS |
Equipped With:
