| Specification | Description |
|---|---|
| MAIN SPINDLE: | |

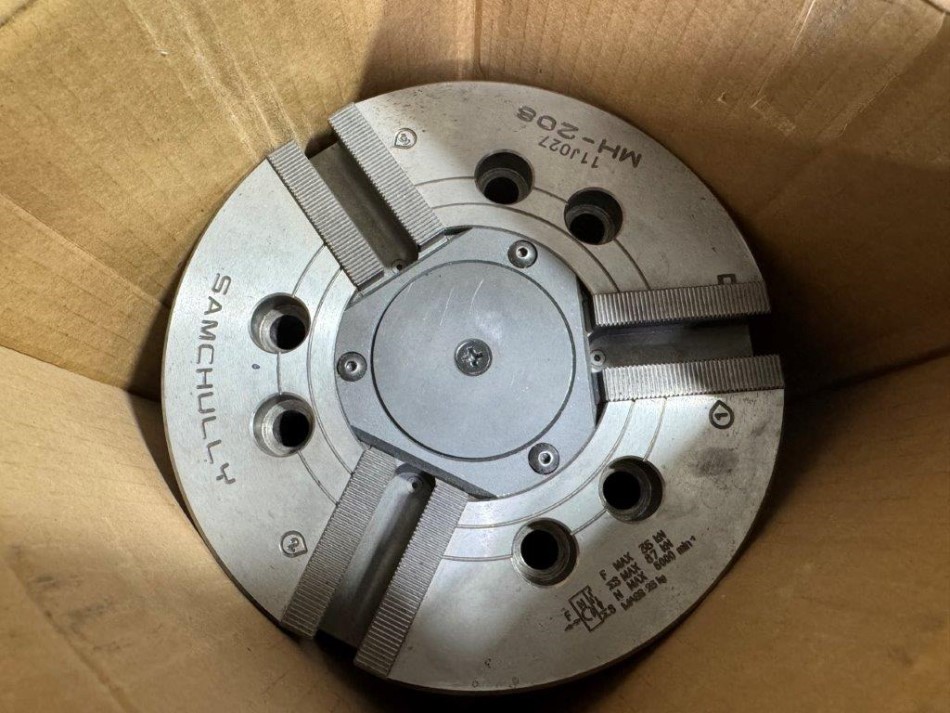

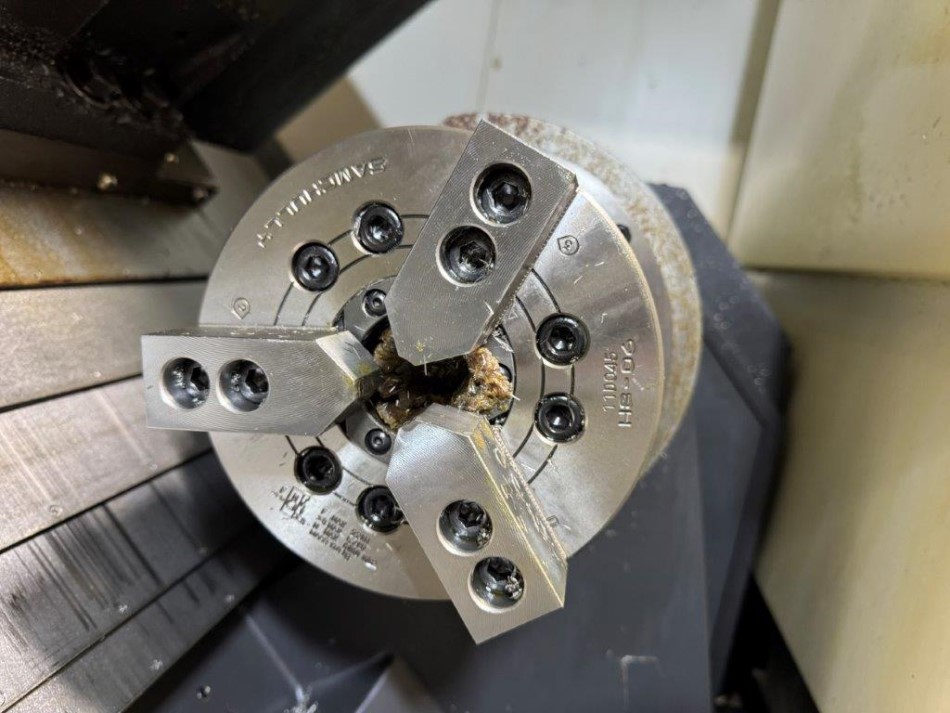

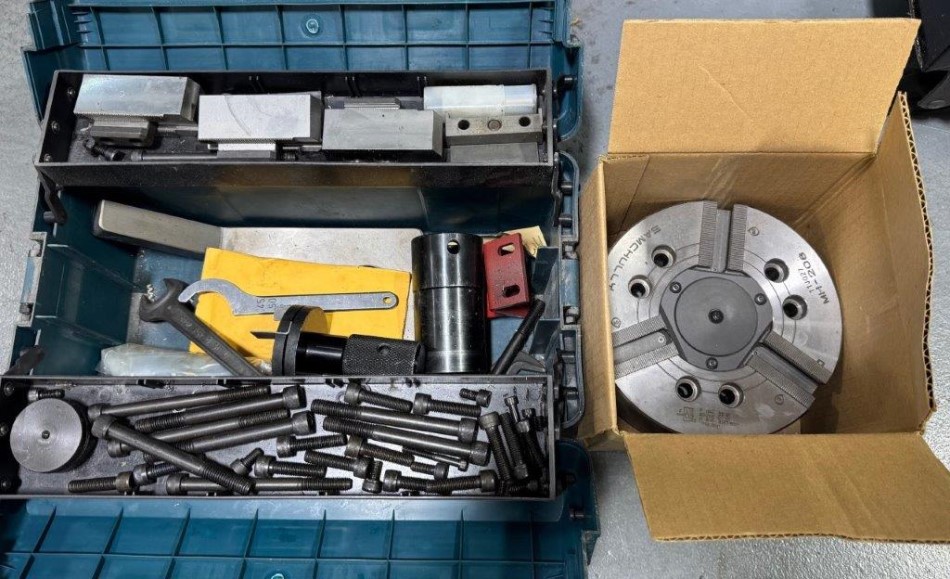

| CHUCK SIZE | 8” (SAMCHULLY MH-208) |
| SPINDLE NOSE | A2-6 |
| HORSEPOWER | 20 HP |
| RPM | 4000 |
| BAR CAPACITY | 2.6" |

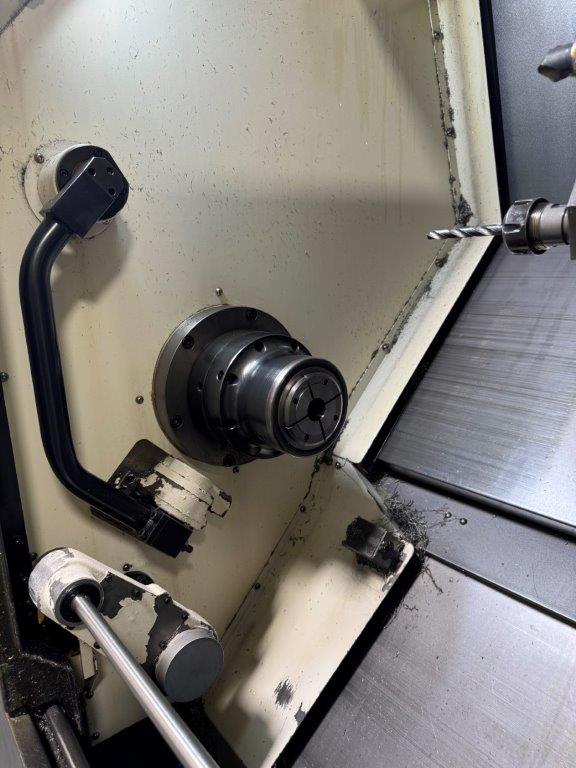

| SUB SPINDLE: | |
| CHUCK SIZE | 6" |
| SPINDLE NOSE | A2-5 |
| HORSEPOWER | 20 HP |
| RPM | 5000 |
| SPECS: | |
| MAX TURN DIAMETER | 12.2" |
| MAX SWING | 21.7" |
| MAXIMUM MACHINING LENGTH | 20.5" |
| X-AXIS TRAVEL | 8.7" |
| Z-AXIS TRAVEL | 22" |

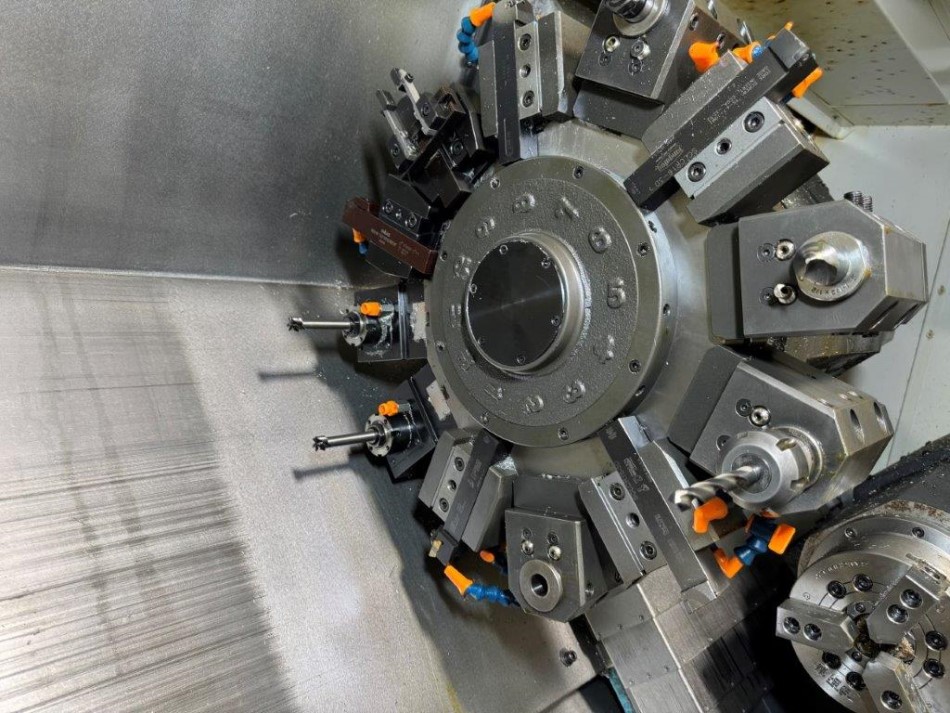

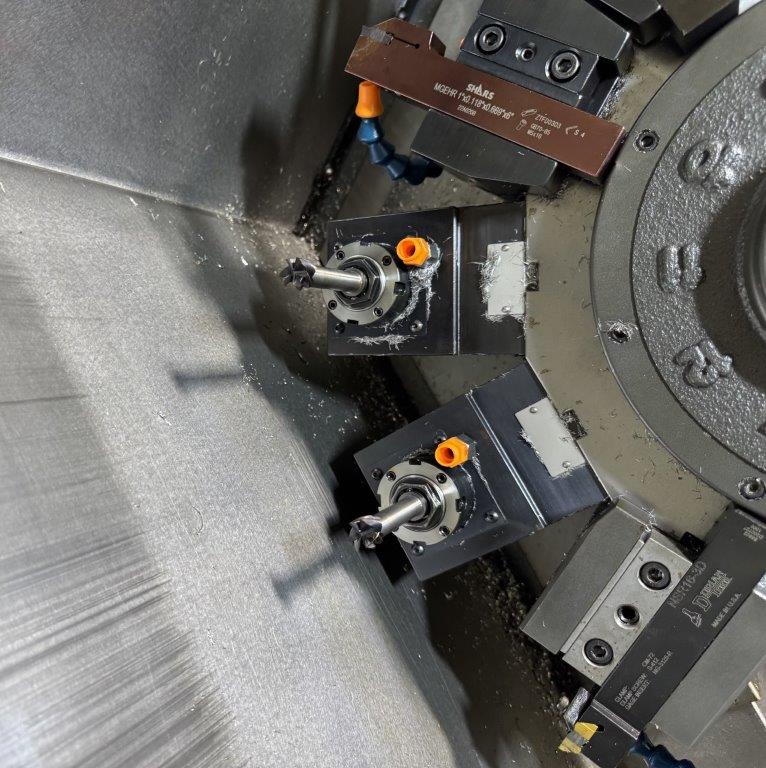

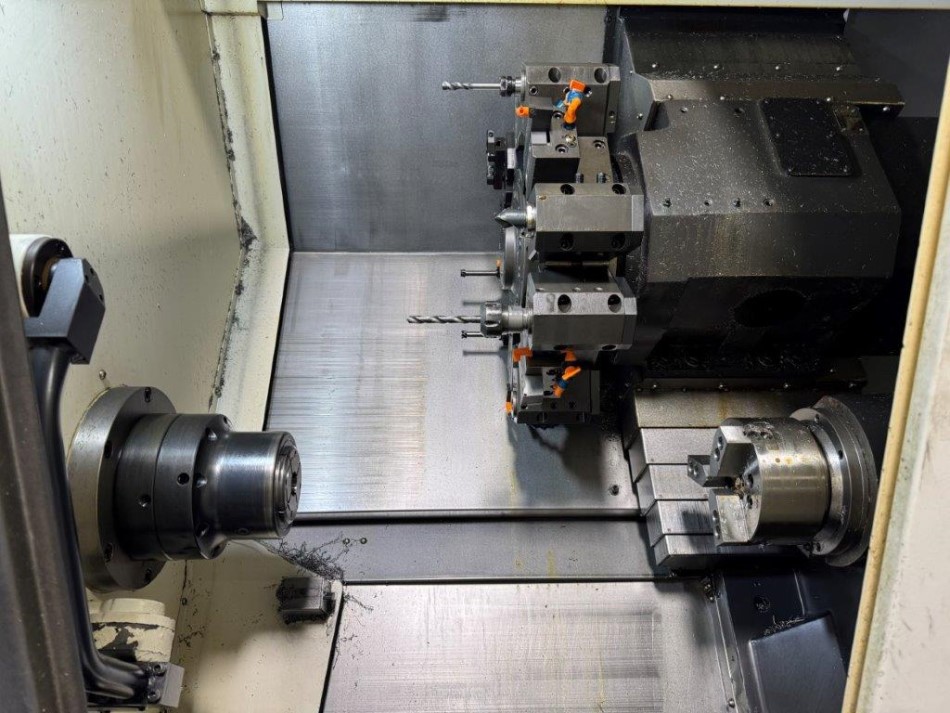

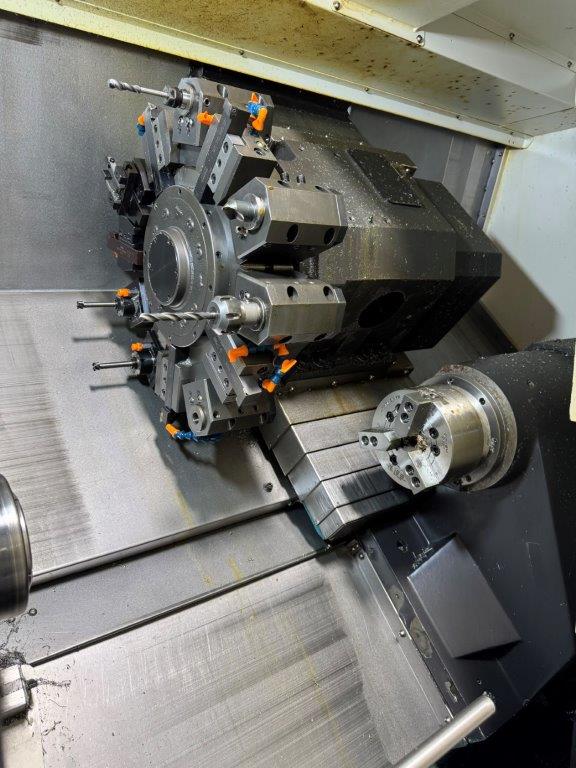

| TURRET TYPE | 12 STATION SERVO TURRET |
| RAPID TRAVERSE X, Z | 1417 IPM |
| DIMENSIONS | 125" x 84" x 84" |
| WEIGHT-SHIPPING | 11,000 LBS |

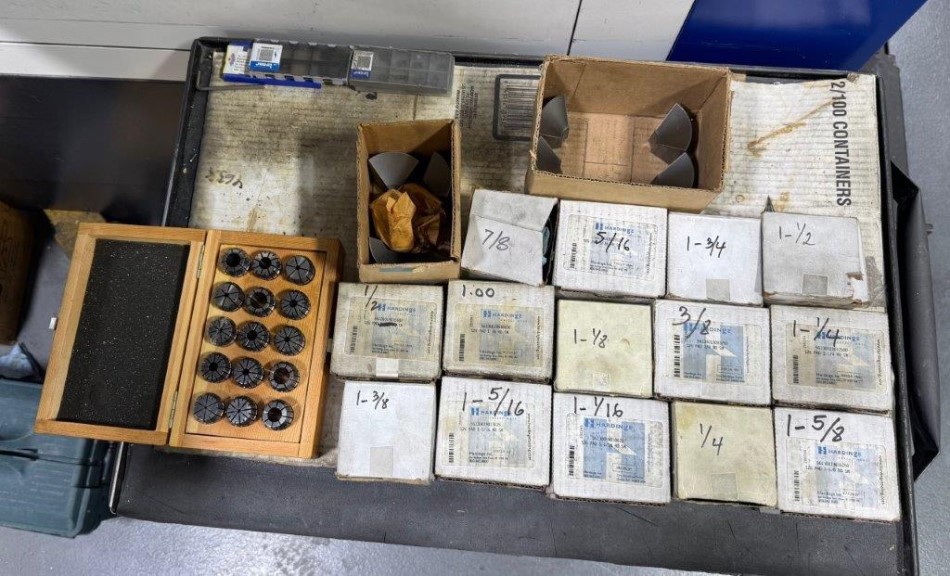

Equipped With:
