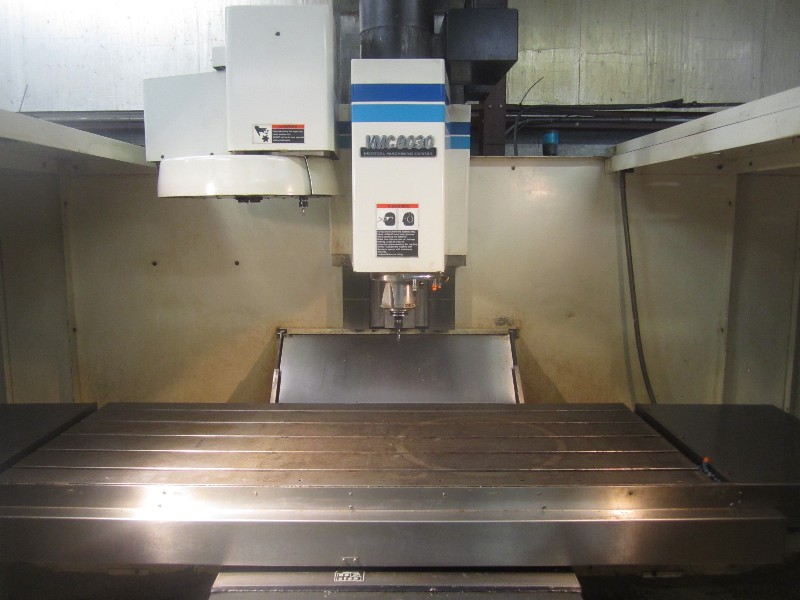

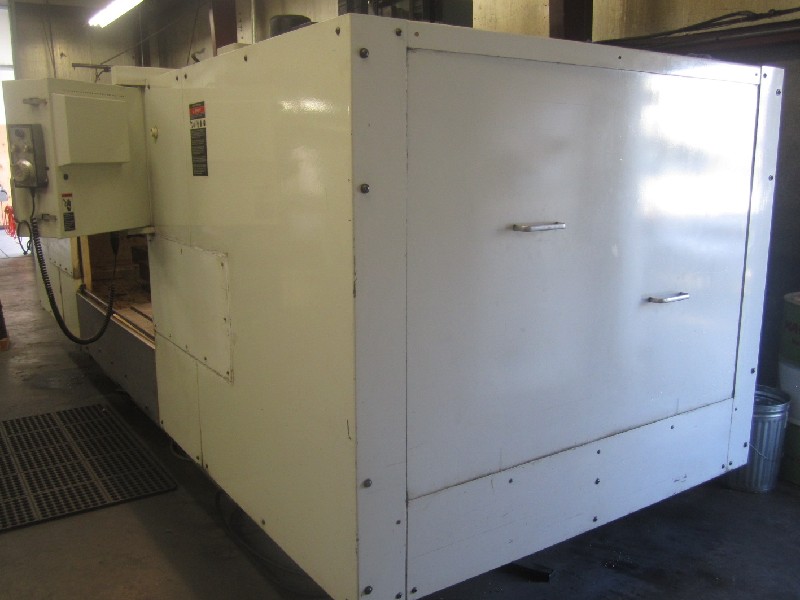

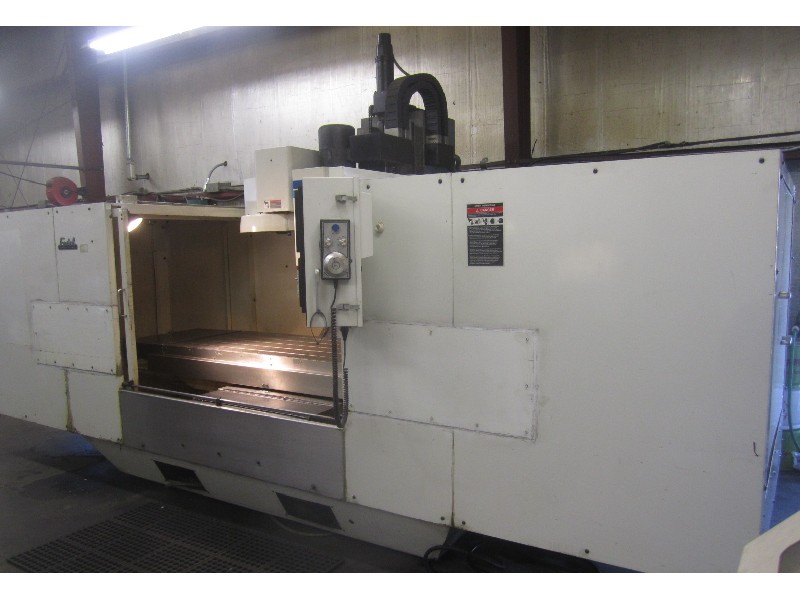

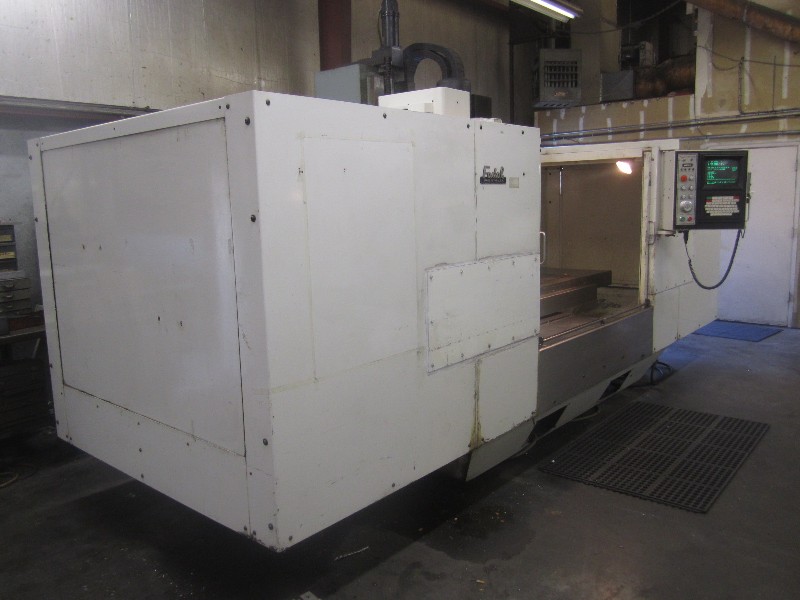

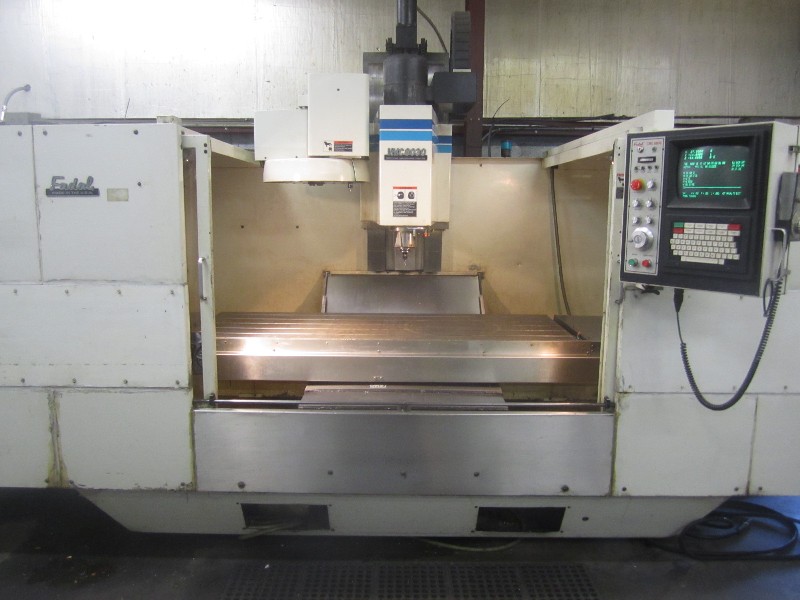

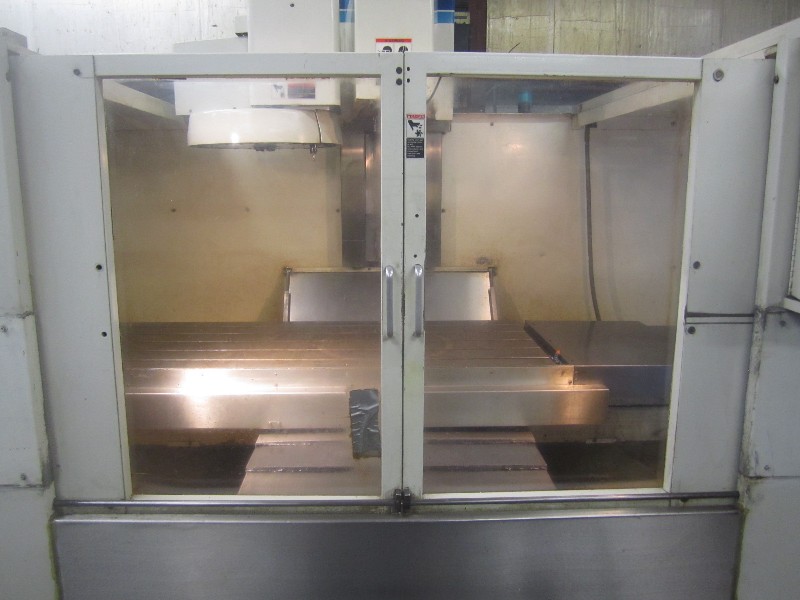

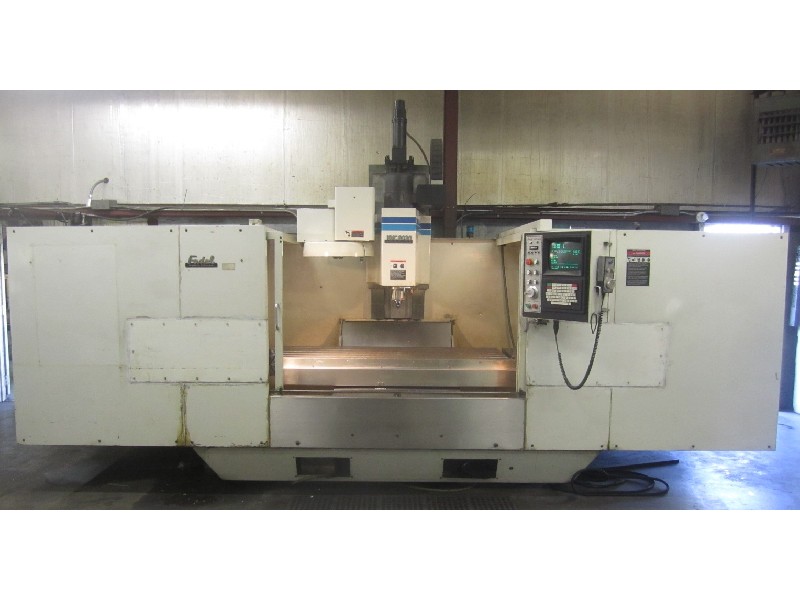

FADAL VMC-8030HT VERTICAL MACHINING CENTER WITH 4TH AXIS ROTARY TABLE

FADAL VMC-8030HT VERTICAL MACHINING CENTER WITH 4TH AXIS ROTARY TABLE

Stock Number: 1199

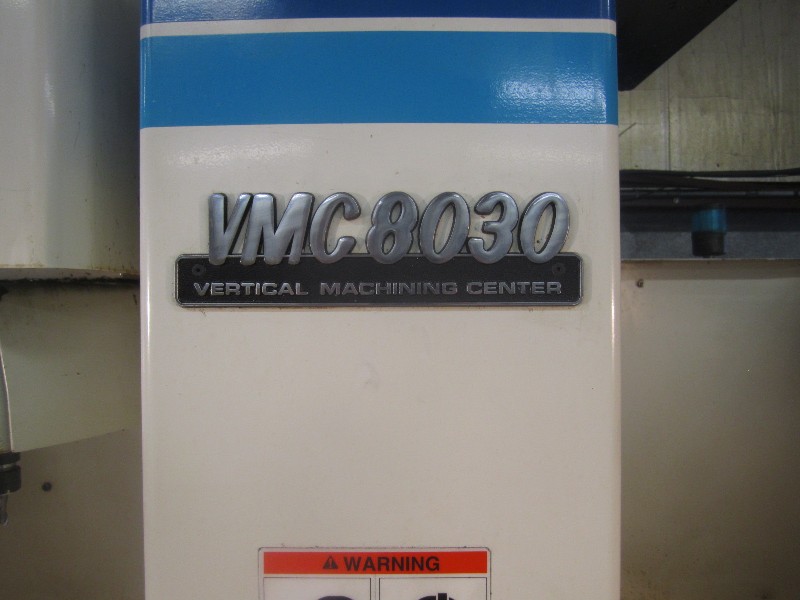

FADAL VMC-8030HT

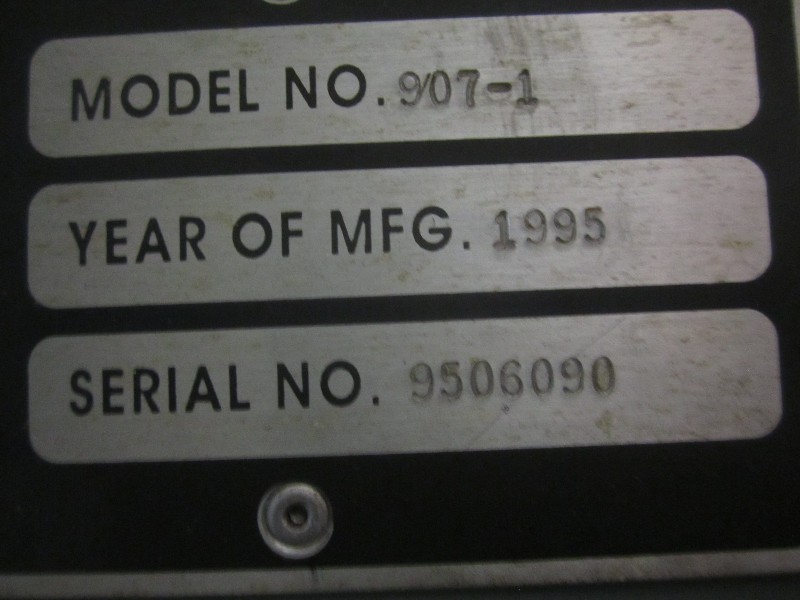

Age: 1995

Condition: VERY GOOD



                                                                                                                                                   View a video of FADAL VMC-8030HT VERTICAL MACHINING CENTER WITH 4TH AXIS ROTARY TABLE
Click to view larger photo

SpecificationDescription

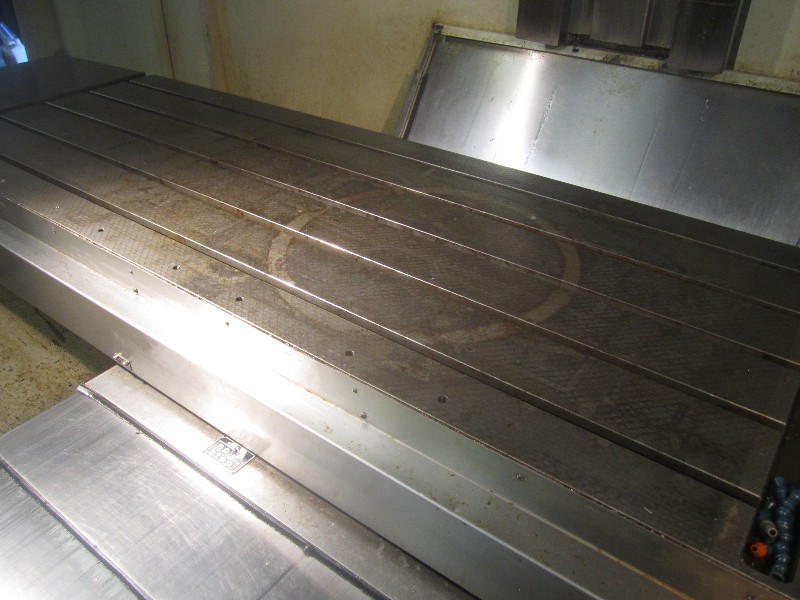

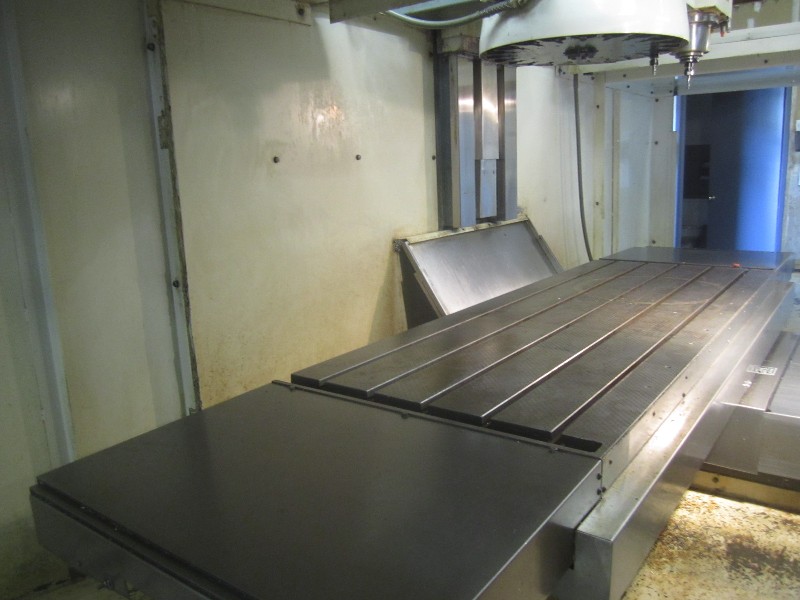

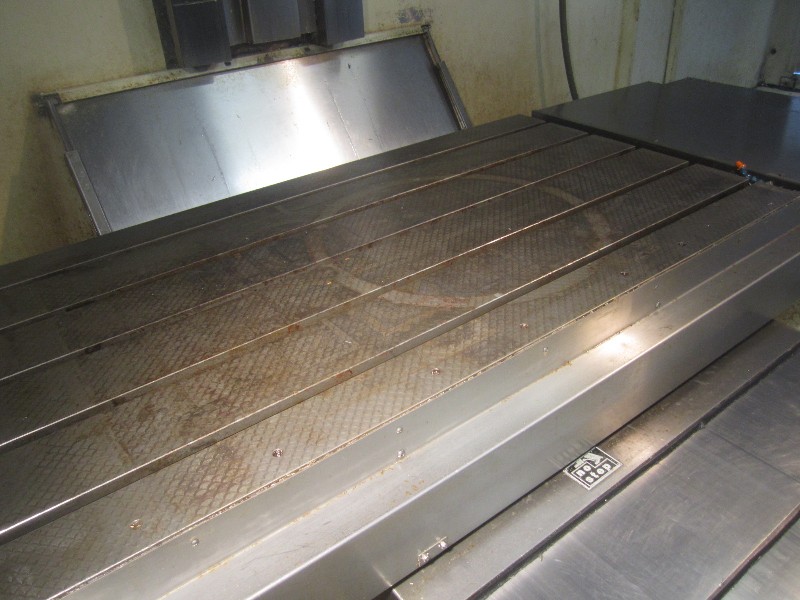

TABLE WORKING SURFACE82.5" x 30"
TABLE LOAD CAPACITY3,750 LBS
LONGITUDINAL TRAVEL (X-AXIS)80"
CROSS TRAVEL (Y-AXIS)30"
VERTICAL TRAVEL (Z-AXIS)28"
RAPID TRAVERSE RATE, ALL AXES400 IPM

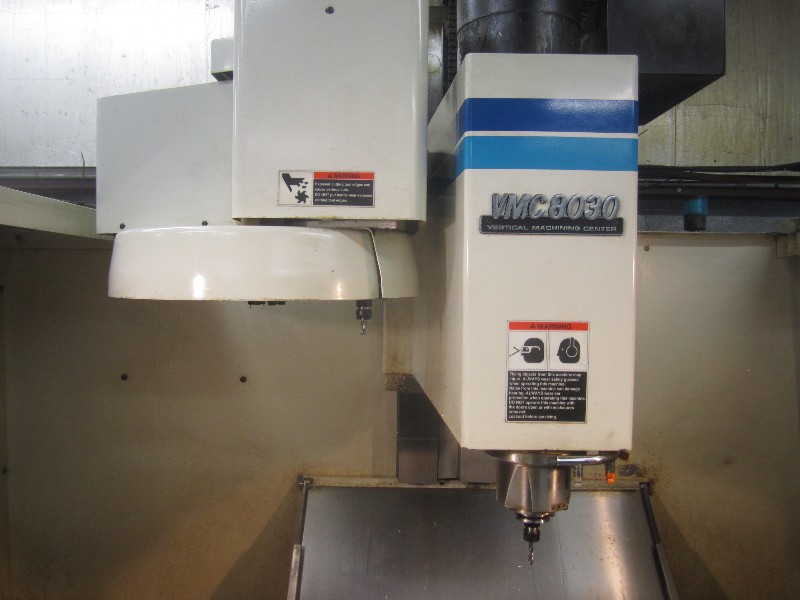

TOOL STORAGE CAPACITY21 CAROUSEL
SPINDLE HORSEPOWER22.5 HP HIGH TORQUE MOTOR
SPINDLE SPEEDS RANGE10,000 RPM
SPINDLE TAPER#40 CT
WAY SYSTEMLINEAR GUIDEWAY
OVERALL DIMENSIONS210" x 128" x 124"
APPROXIMATE WEIGHT - NET18,500 LBS.

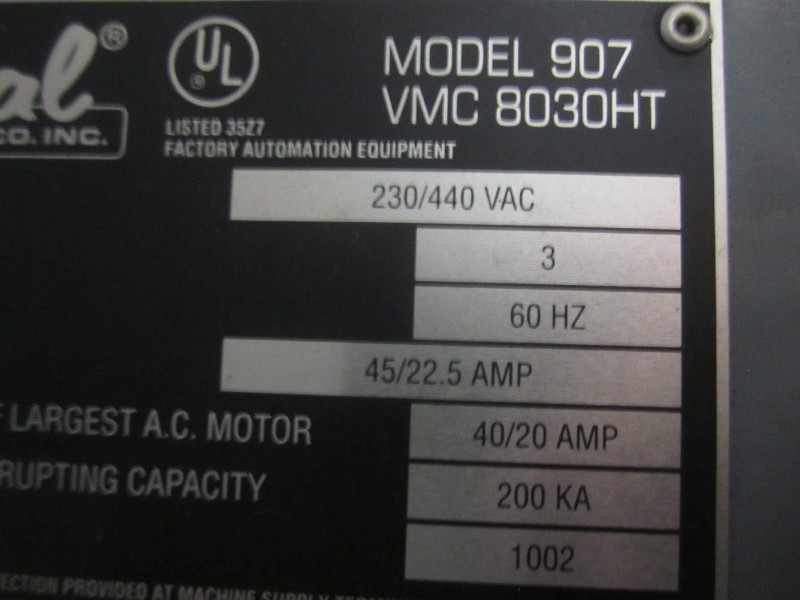

POWER220V / 3 PHASE

Equipped With:
RIGID TAPPING
"HT" TORQUE MODEL
X & Y GLASS SCALES

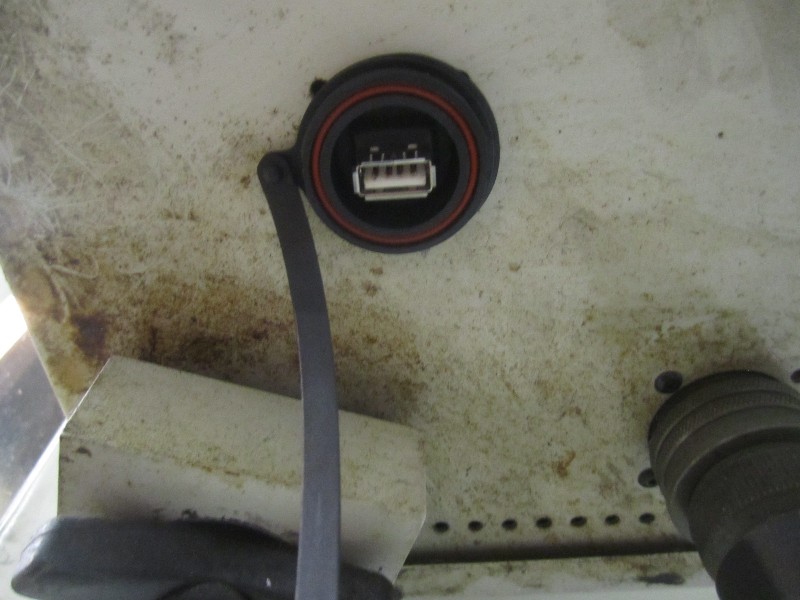

RS-232 PORT & USB PORT

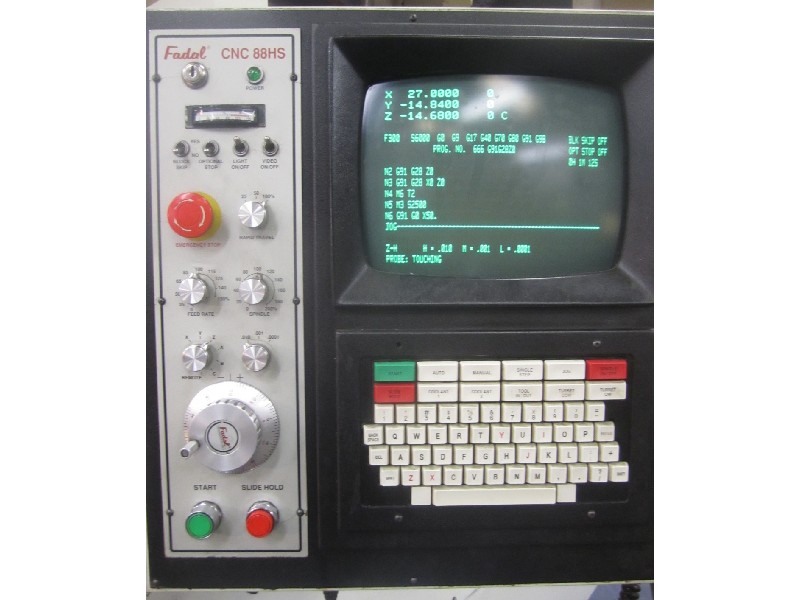

FADAL 88HS CNC CONTROL

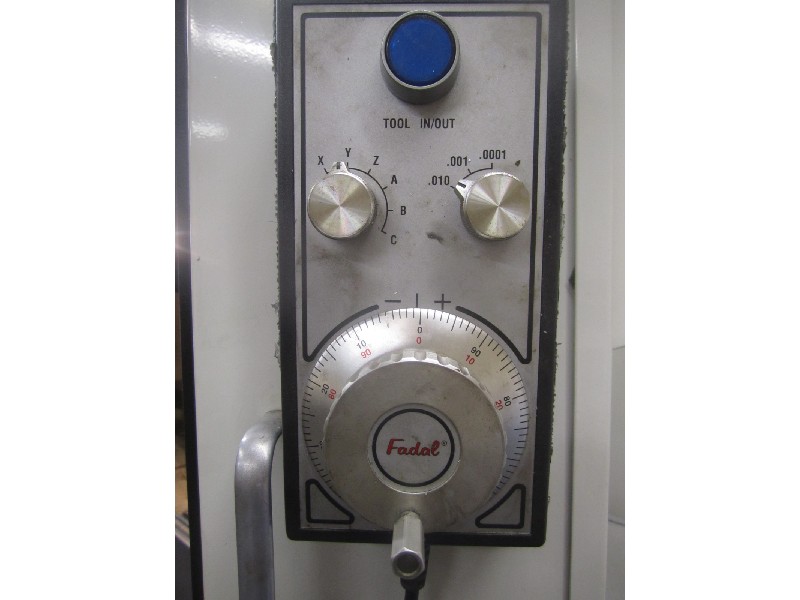

MPG HANDWHEEL

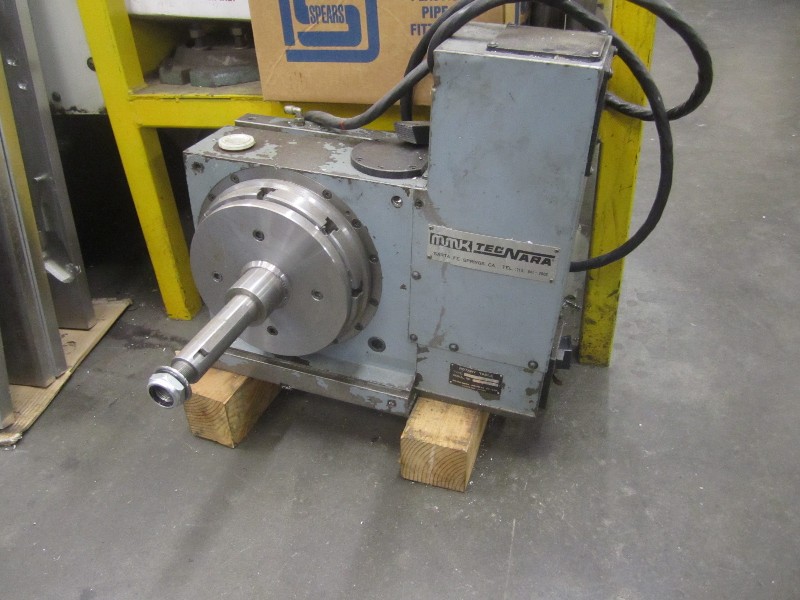

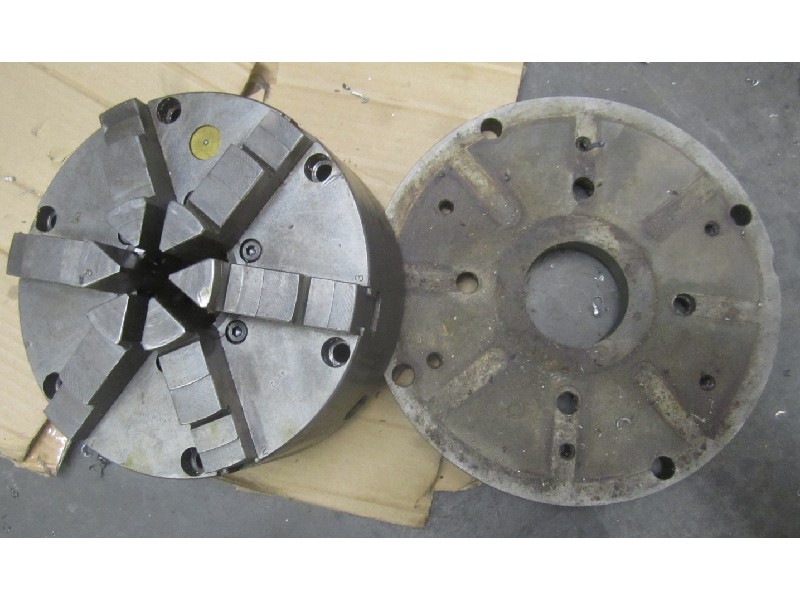

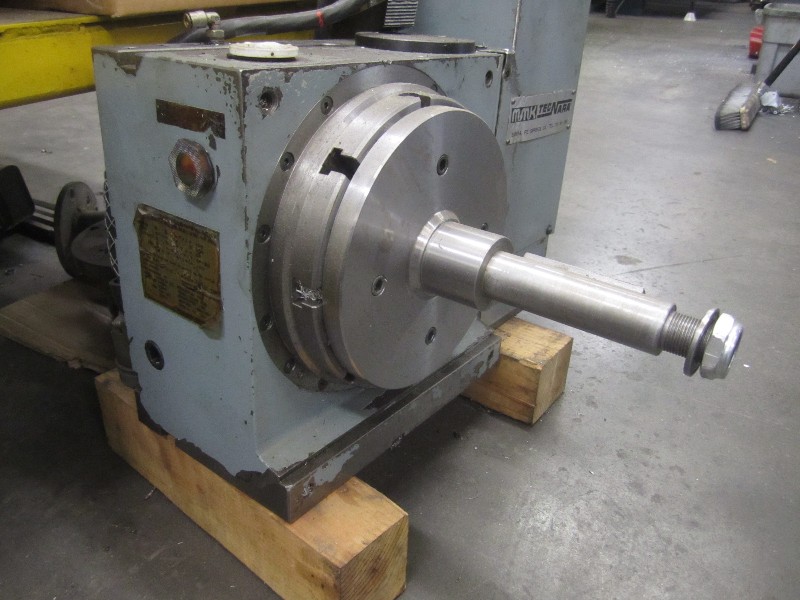

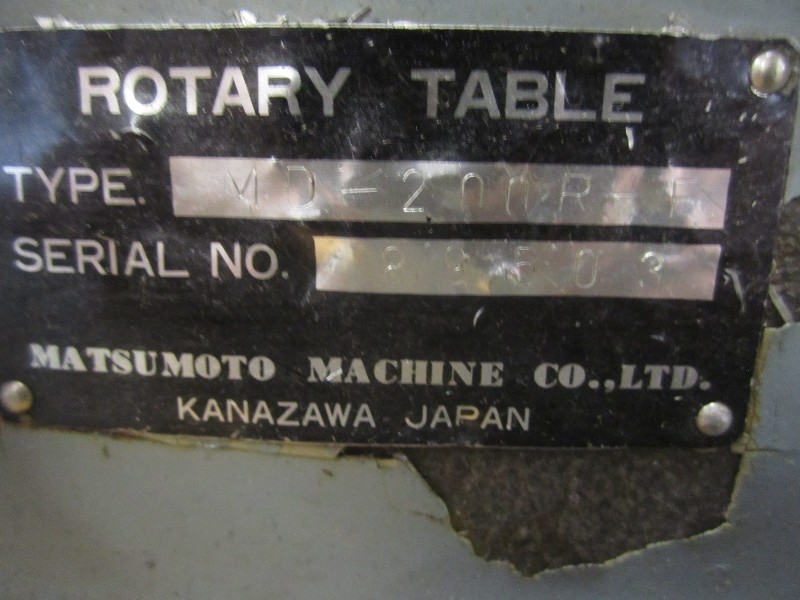

TECNARA 8" 4TH AXIS ROTARY TABLE, MODEL MD-200R-F & 8" BUCK 6 JAW CHUCK
HIGH SPEED CPU
