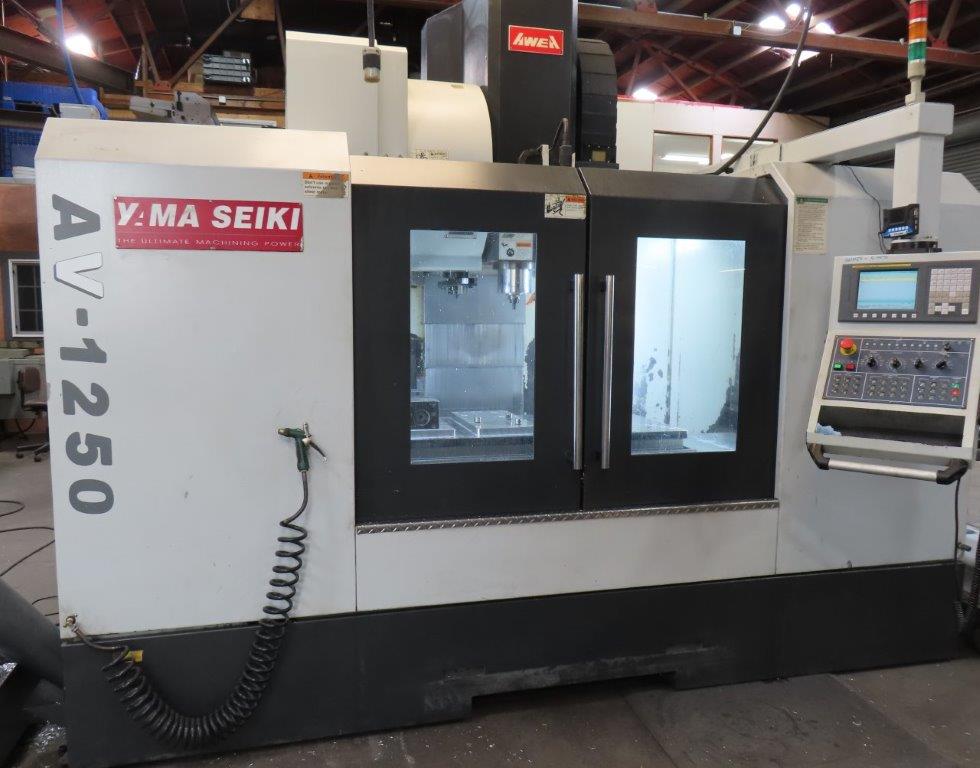

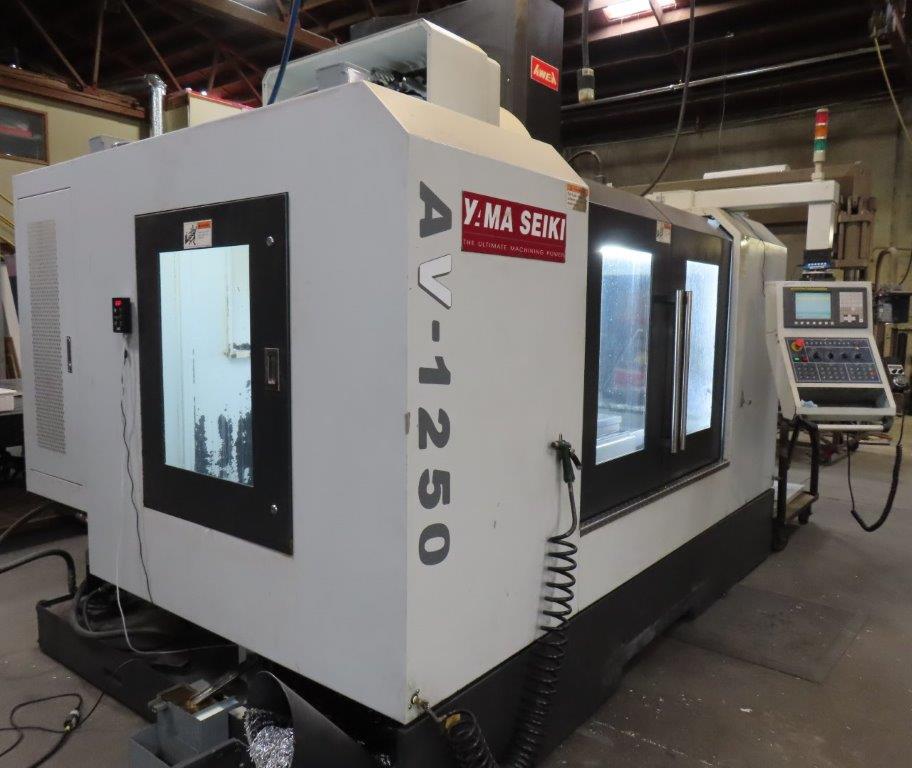

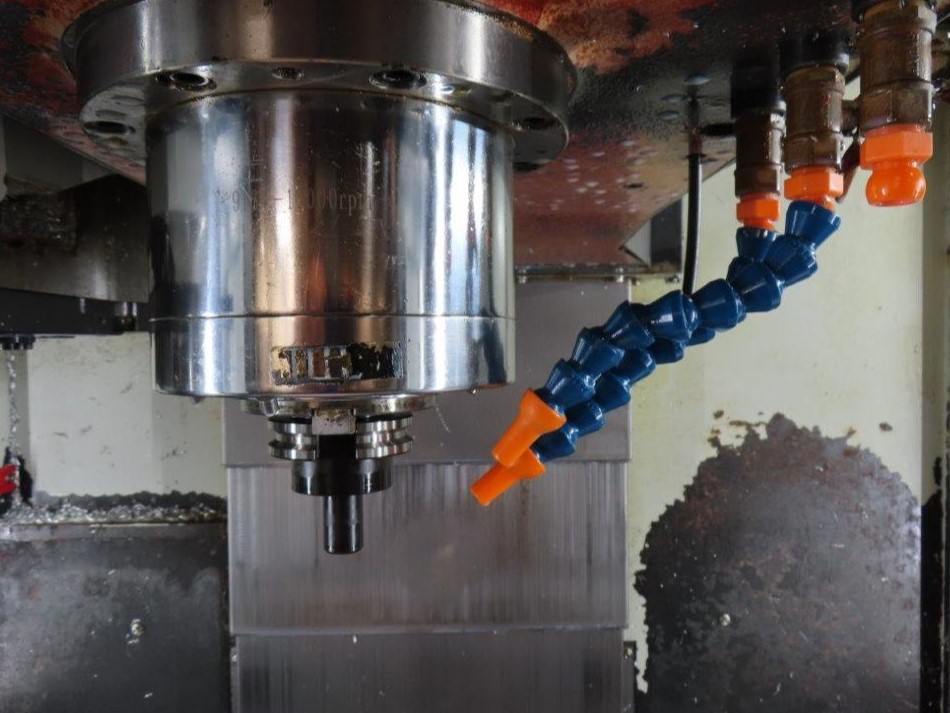

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

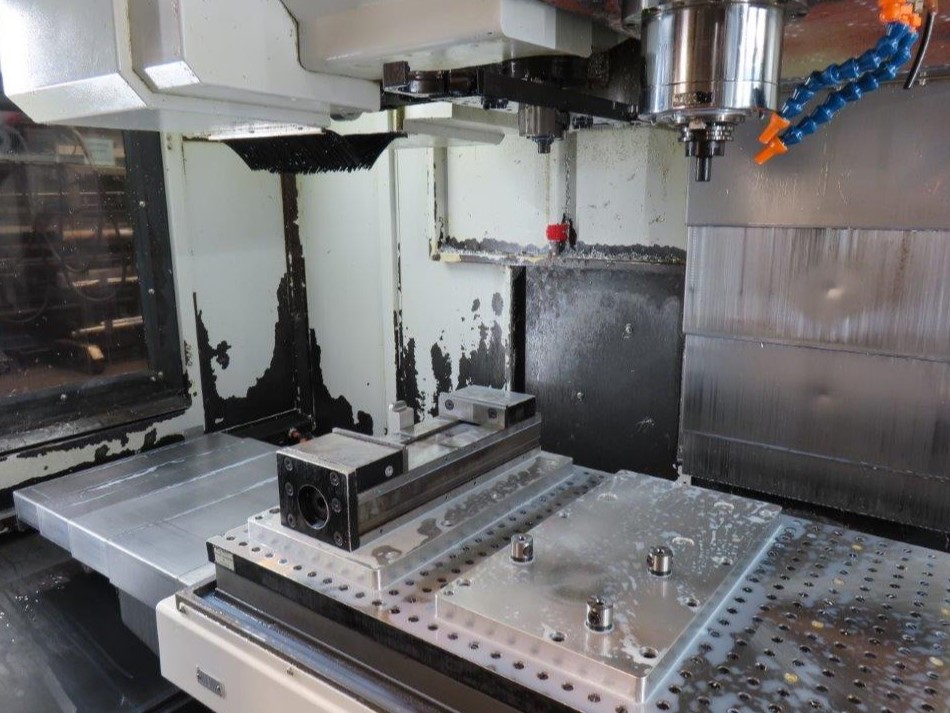

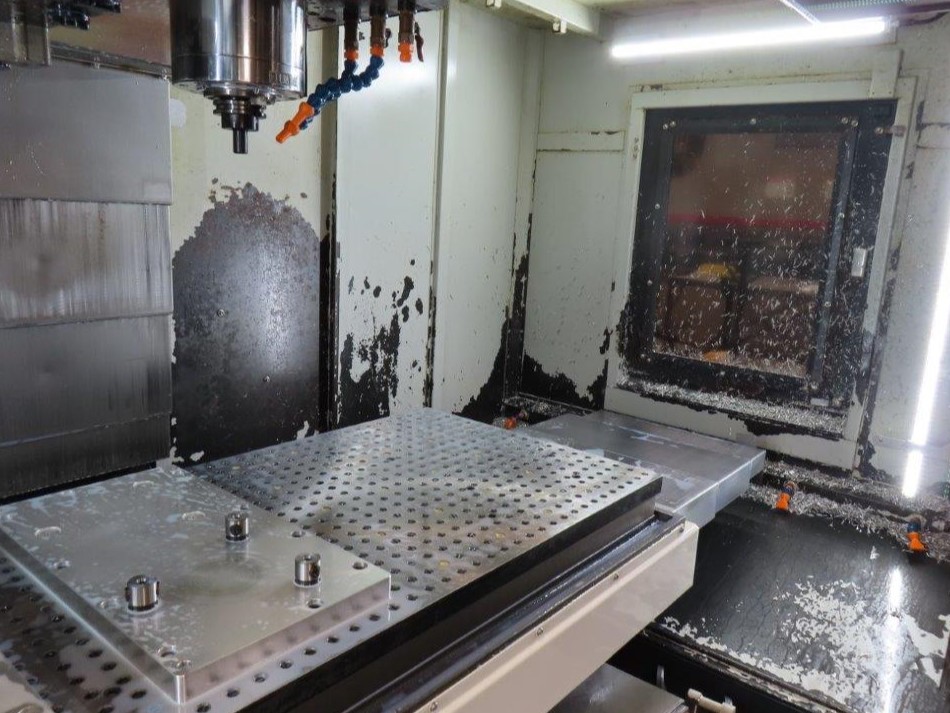

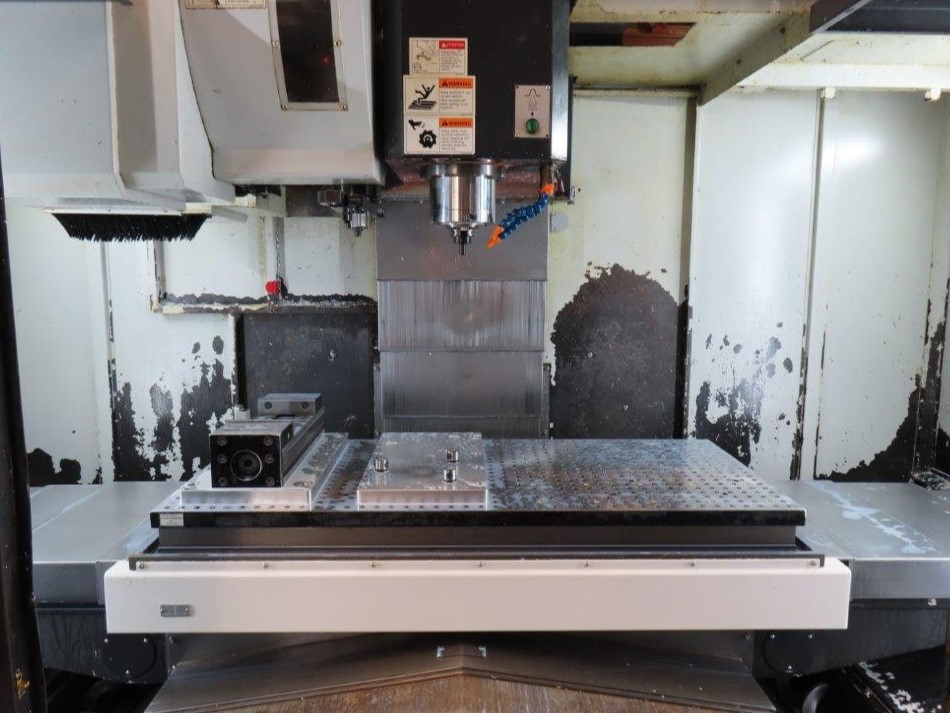

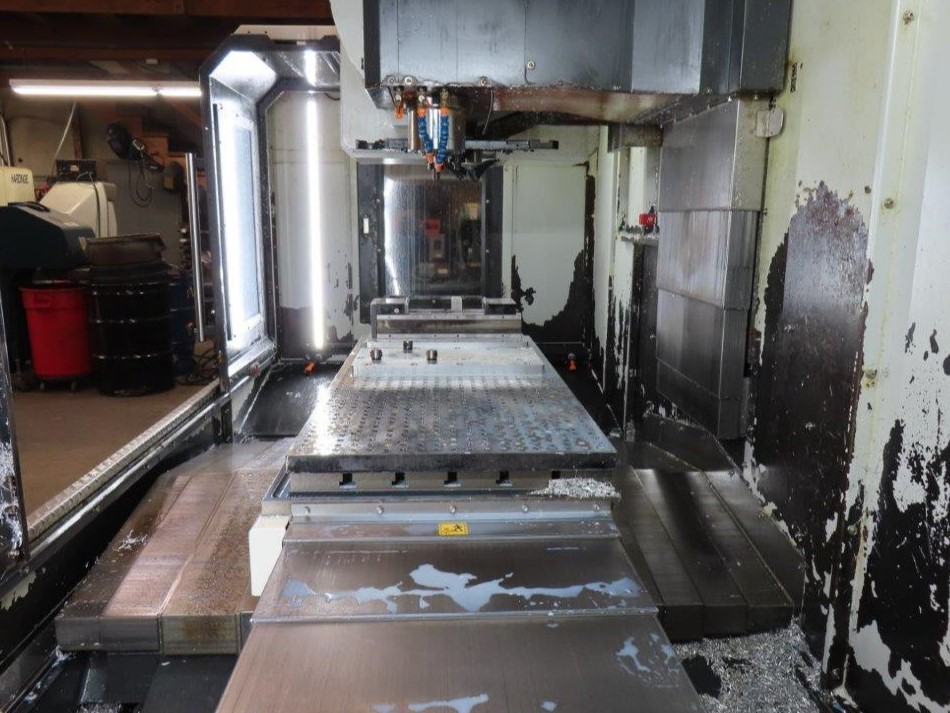

| TABLE WORKING SURFACE | 53" x 24.4" |
| TABLE LOAD CAPACITY | 2,200 LBS |
| TRAVELS (X, Y, Z) | 49" x 24.4" x 24.4" |
| SPINDLE CENTER TO COLUMN | 31.4" |
| SPINDLE NOSE TO TABLE TOP | 3.93" - 28.3" |
| RAPID TRAVERSE RATE, X&Y | 1890 IPM |

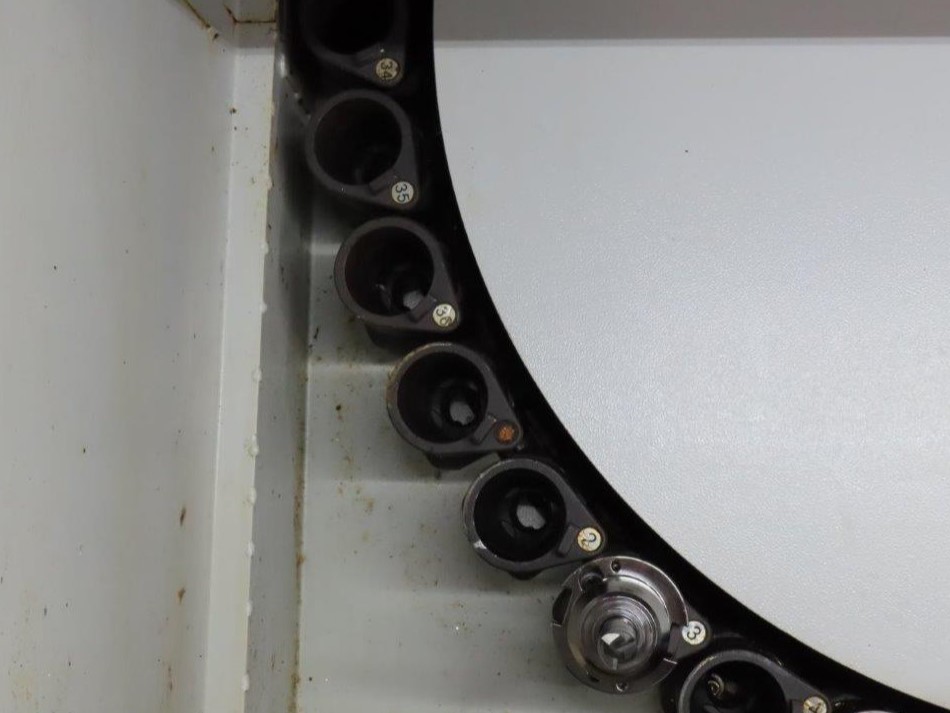

| TOOL CHANGER ARM STYLE | 36 |
| TOOL CHANGE TIME | 1.6 SEC TOOL TO TOOL |
| SPINDLE HORSEPOWER | 25 HP |
| SPINDLE SPEEDS RANGE | 10,000 RPM (BELT DRIVE) |
| SPINDLE TAPER | CAT-40 |
| WAY SYSTEM | LINEAR |
| FLOOR SPACE DIMENSIONS | 143" x 112" x 100" |
| APPROXIMATE WEIGHT - NET | 17,600 LBS. |
EQUIPPED WITH:
