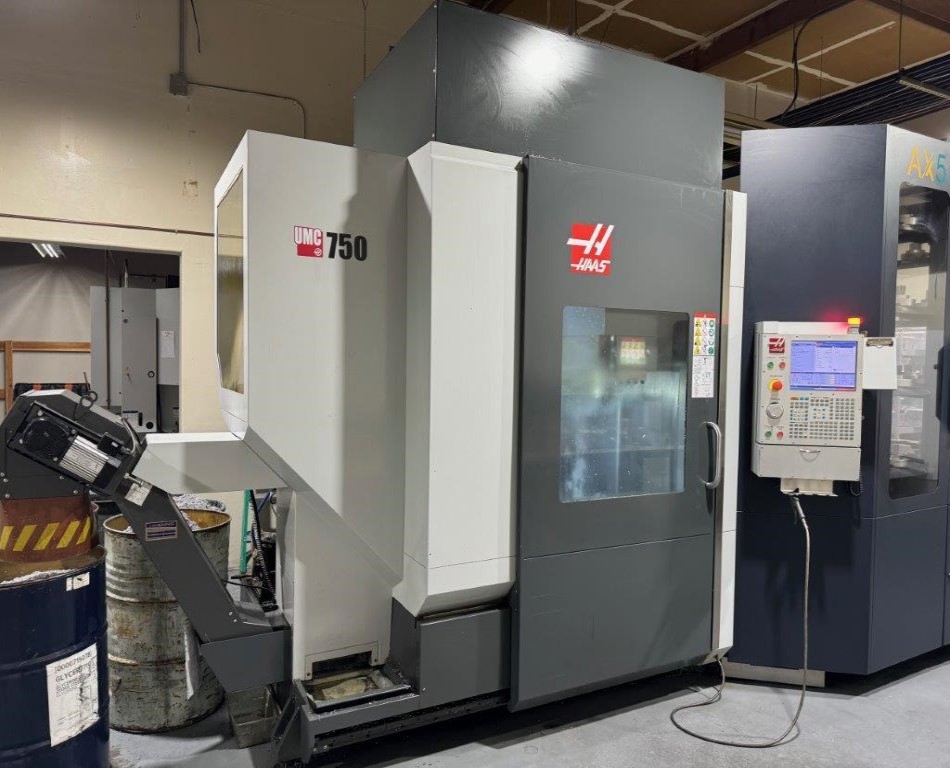

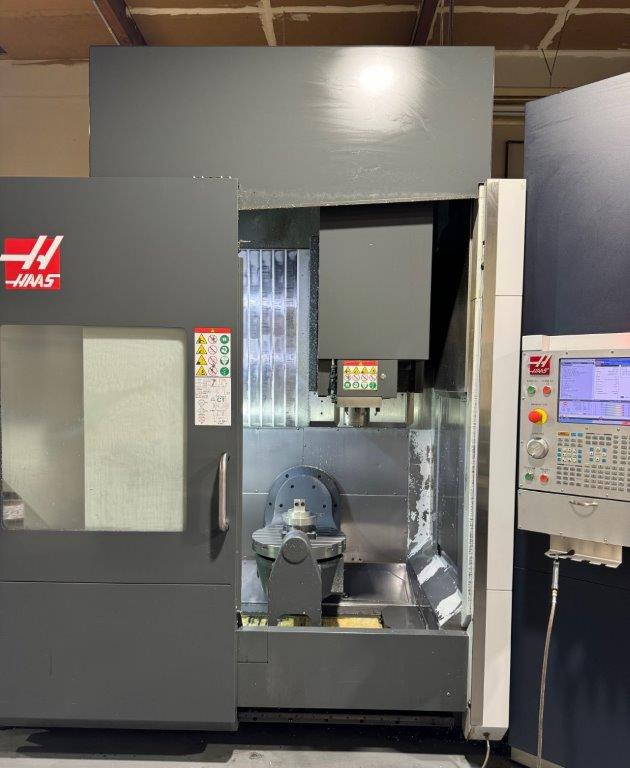

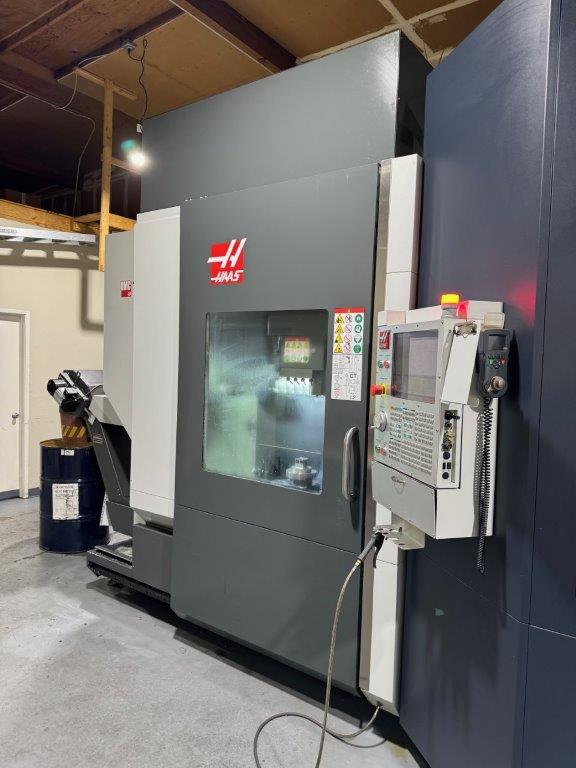

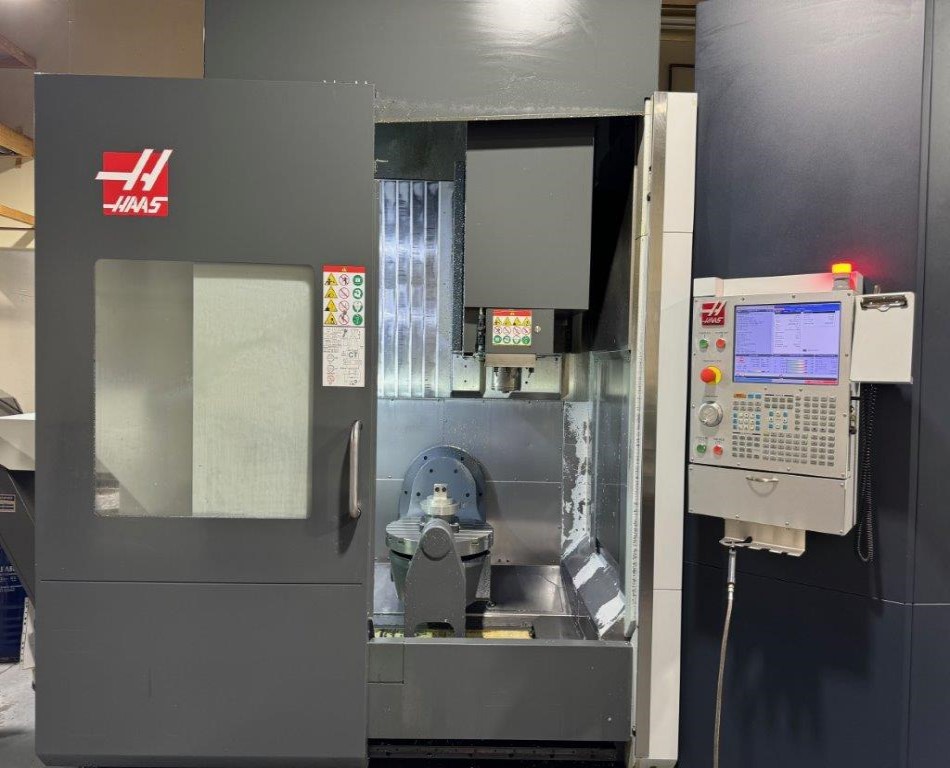

Click to view larger photo

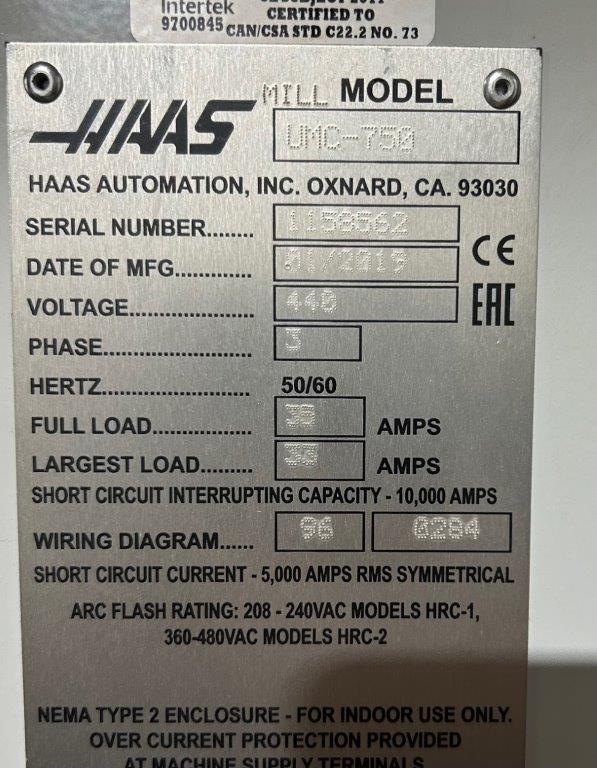

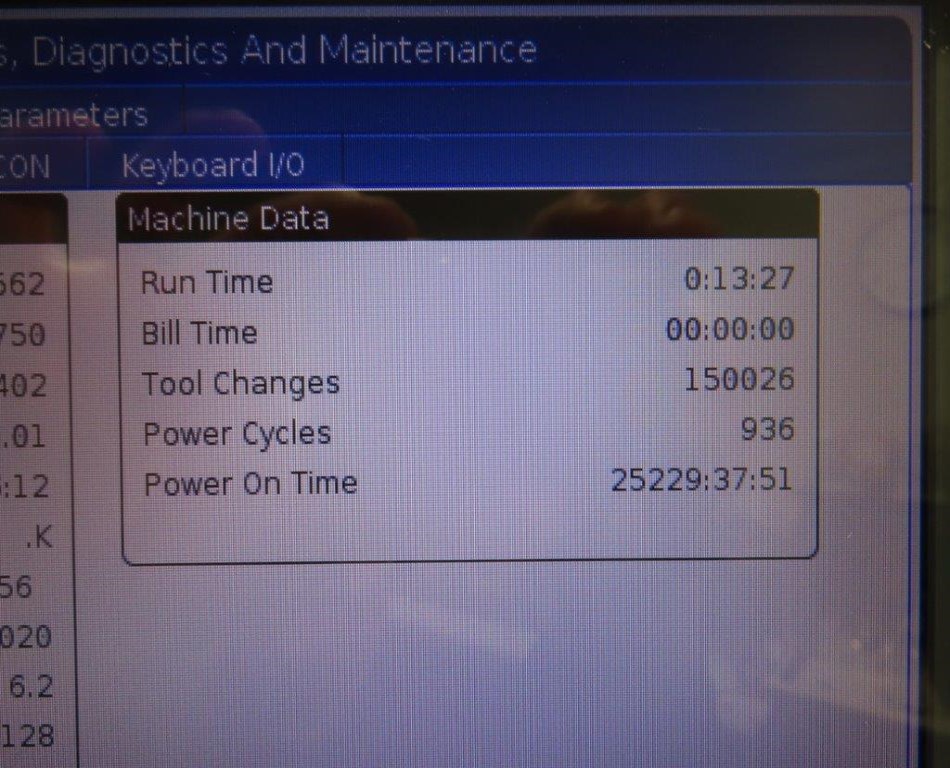

| SPECIFICATIONS: | |
|---|---|
| X AXIS | 30 in. |
| Y AXIS | 20 in. |
| Z AXIS | 20 in. |
| SPINDLE SPEED | 12,000 RPM / INLINE DIRECT DRIVE |
| MAX RATING | 30 HP |
| MAX TORQUE | 90 FT LBF @2000 RPM |
| B AXIS TILT: | |
| TRAVEL | 120 TO -35 DEGREES |
| MAX SPEED | 170 DEGREES / SEC |
| MAX TORQUE | 2240 FT-LBF |
| BRAKE TORQUE | 2000 FT LBF |
| C AXIS ROTATION: | |
| TRAVEL | 360 DEGREES |
| MAX SPEED | 179 DEGREE / SEC |
| MAX TORQUE | 1854 FT LBF |
| BRAKE TORQUE | 900 FT LBF |
| MAX PART SWING | 27.0 in. |

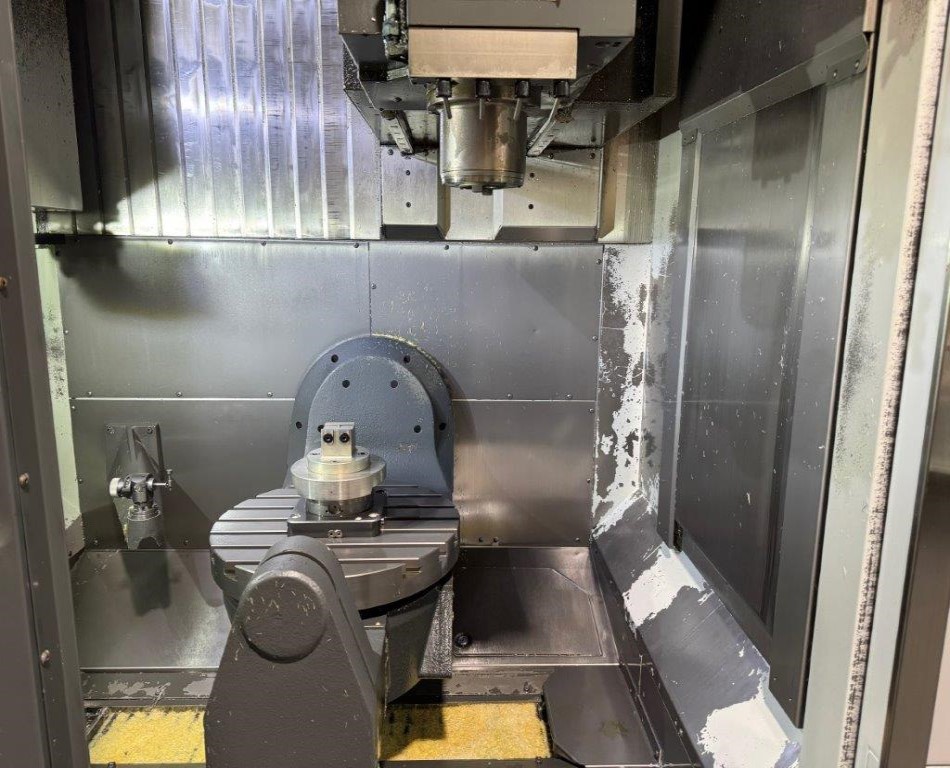

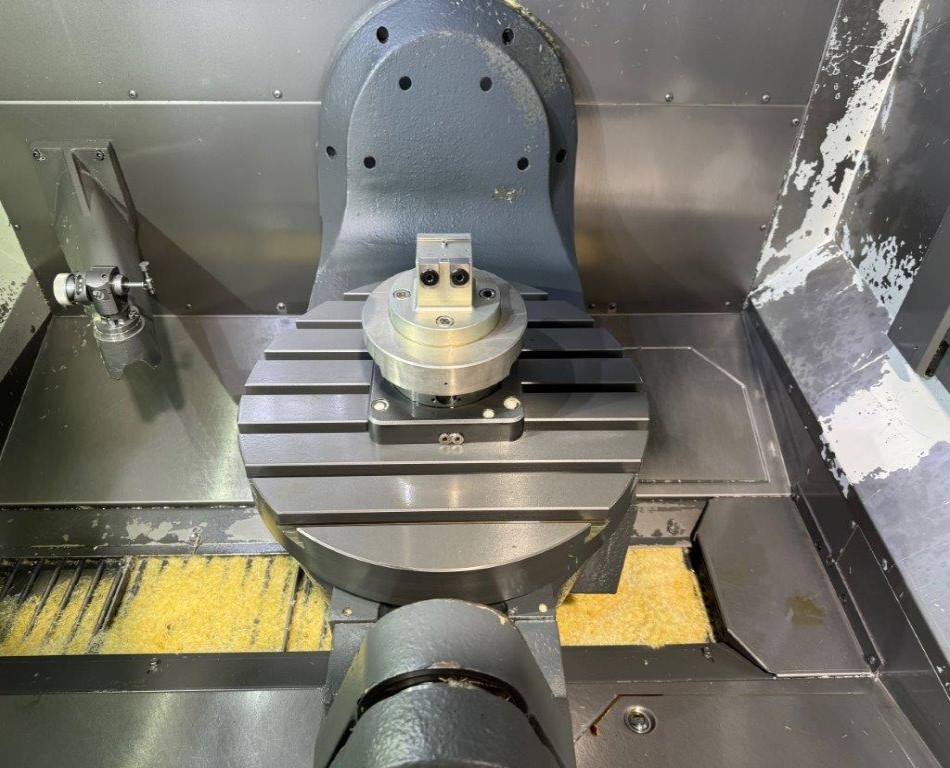

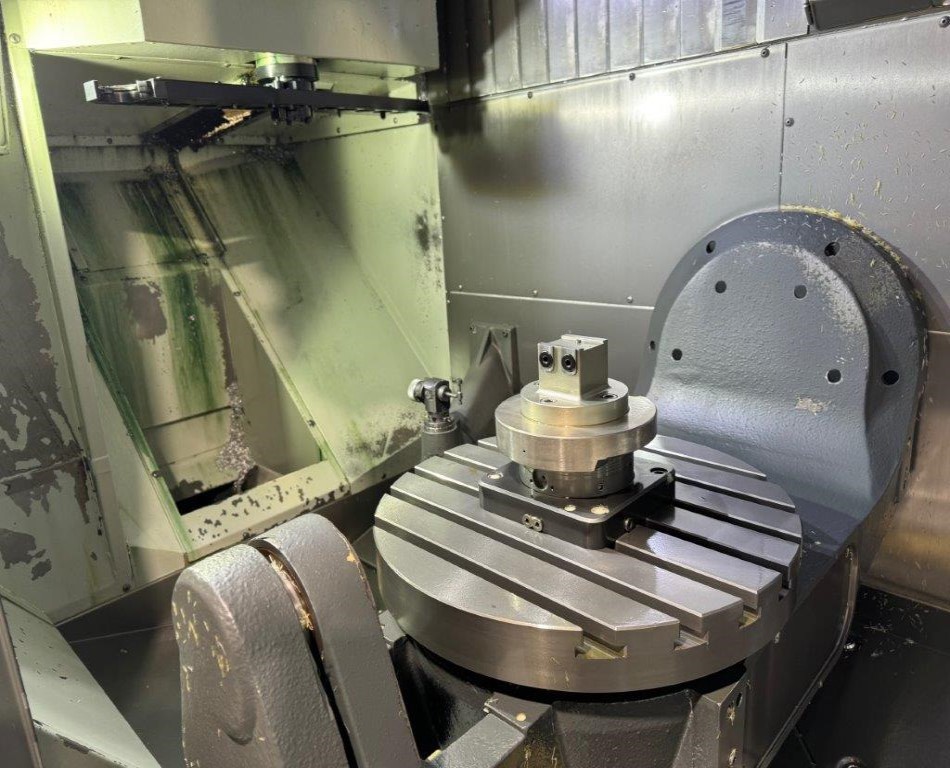

| PLATTER: | |
| PLATTER DIAMTER | 19.70 in. |
| MAX WEIGHT ON PLATTER | 660 LBS |
| NO. OF SLOTS | 7 |

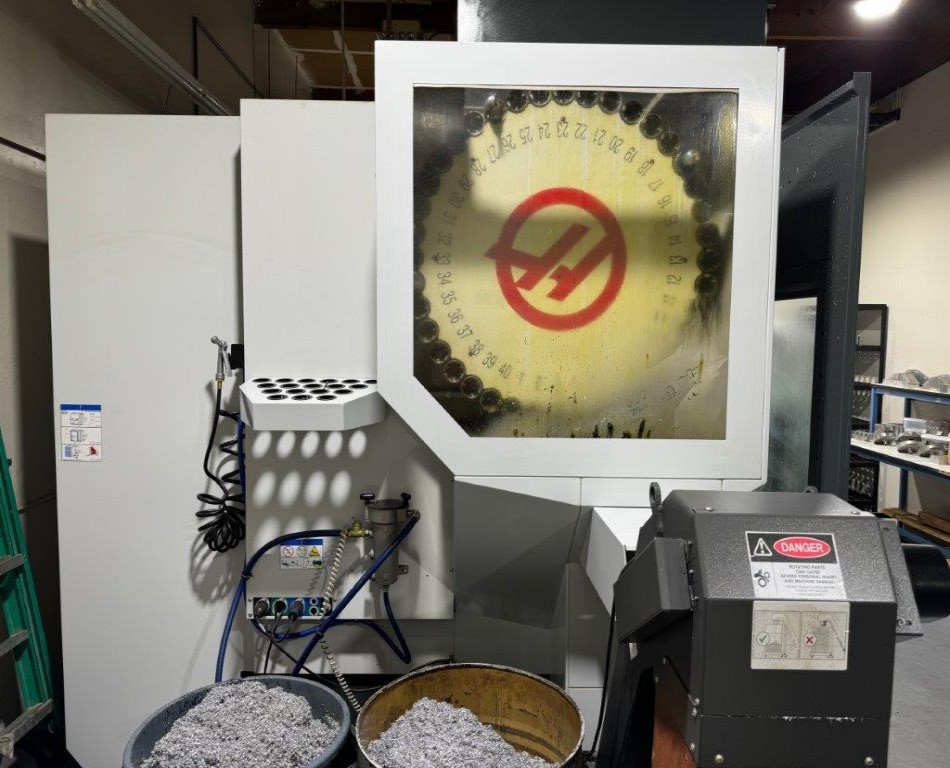

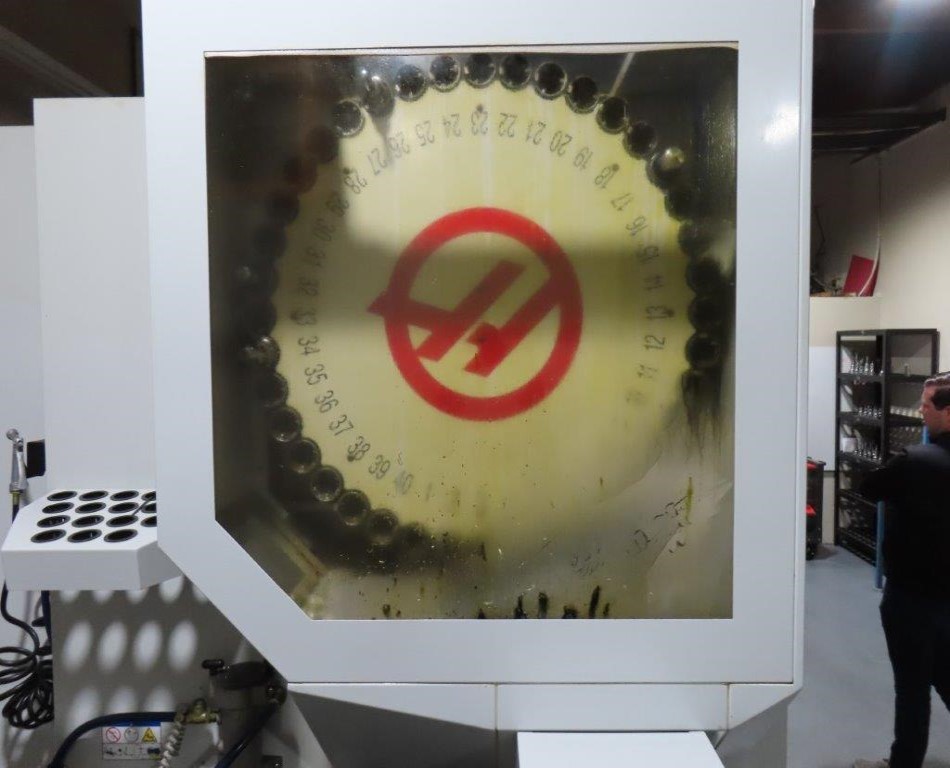

| TOOL CHANGER CAPACITY | 40+1 |
| MAX TOOL DIAMETER | 2.5 in. |
| MAX TOOL LENGTH FROM GAGE LINE | 12 in. |
| MAX TOOL WEIGHT | 12 LBS |
| TOOL TO TOOL TIME | 1.8 SEC (AVG) |
| CHIP TO CHIP TIME | 2.4 SEC (AVG) |
| COOLANT TANK | 55 GALLON |
| WEIGHT | 14,250 LBS. |
| POWER | 220V / 3 PHASE / 70 AMP |

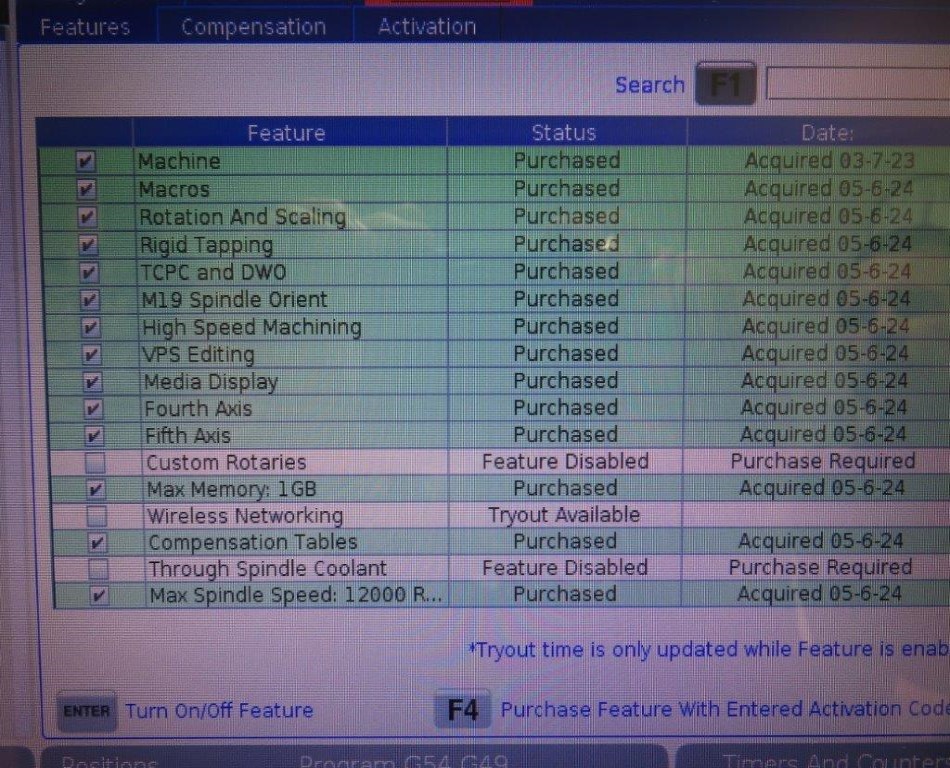

EQUIPPED WITH:
|
