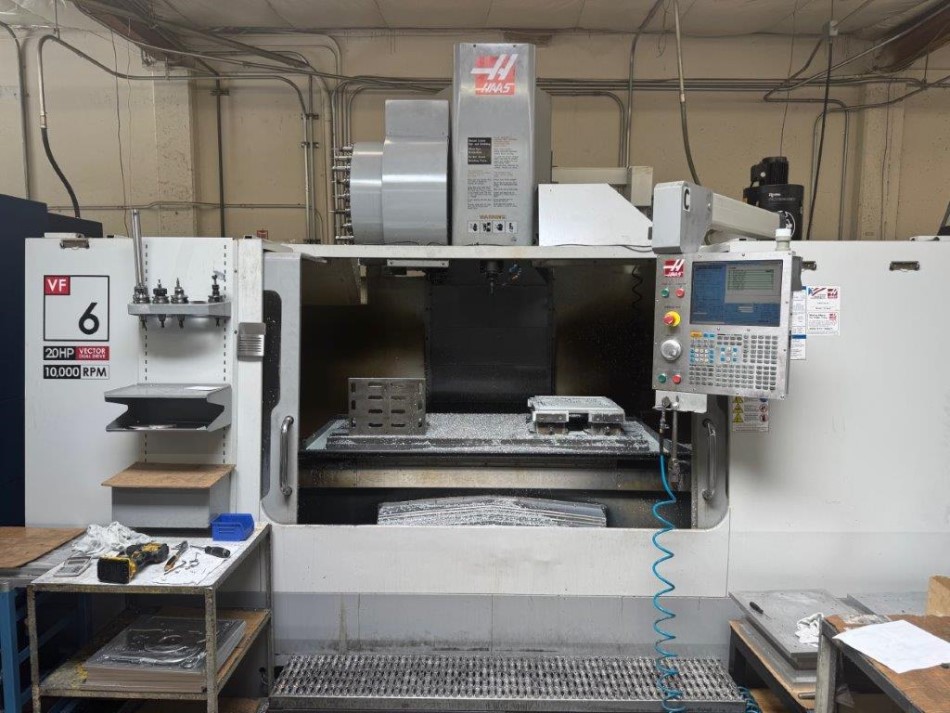

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TABLE WORKING SURFACE | 64" x 28" |
| TABLE LOAD CAPACITY | 4000 LBS |
| LONGITUDINAL TRAVEL (X-AXIS) | 64" |
| CROSS TRAVEL (Y-AXIS) | 32" |
| VERTICAL TRAVEL (Z-AXIS) | 30" |
| SPINDLE NOSE TO TABLE | 4" - 34" |
| RAPID TRAVERSE RATE, ALL AXES | 600 IPM |
| CUTTING FEED RATE | 500 IPM |

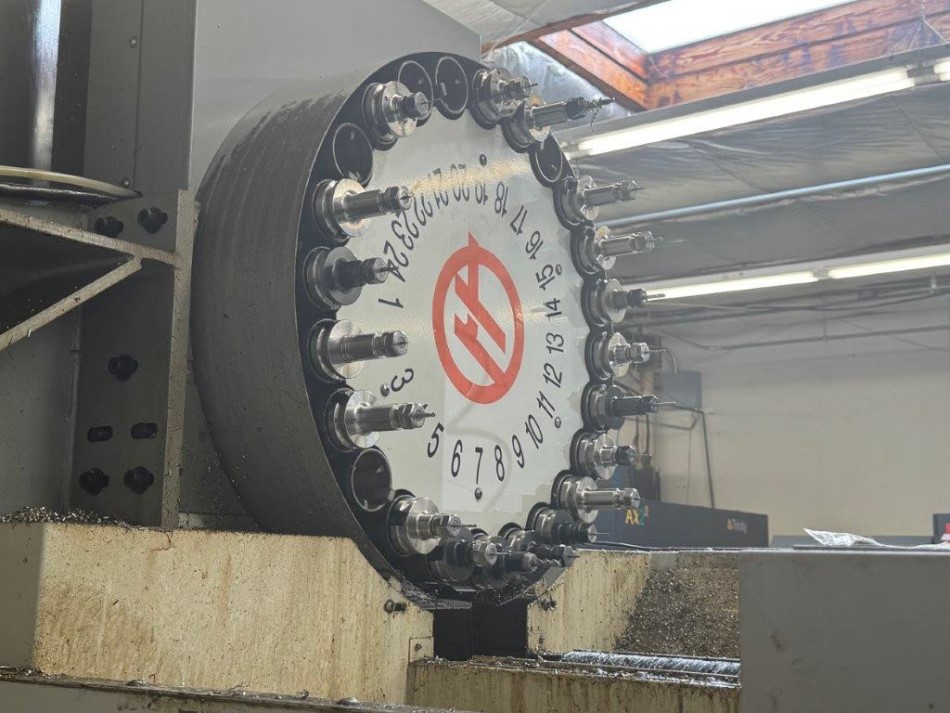

| TOOL STORAGE CAPACITY | 24 ARM |

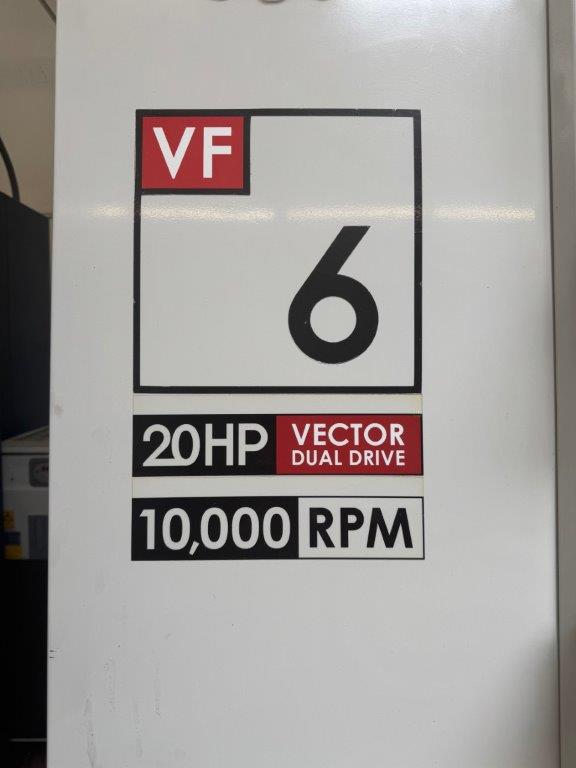

| SPINDLE HORSE POWER | 20 HP |
| SPINDLE SPEEDS RANGE - 2 GEAR RANGES | 10,000 RPM |
| SPINDLE TAPER | BT-40 |
| OVERALL DIMENSIONS | 156"x 123"x 124" (H) |
| APPROXIMATE WEIGHT - NET | 22,300 lbs |
EQUIPPED WITH:
