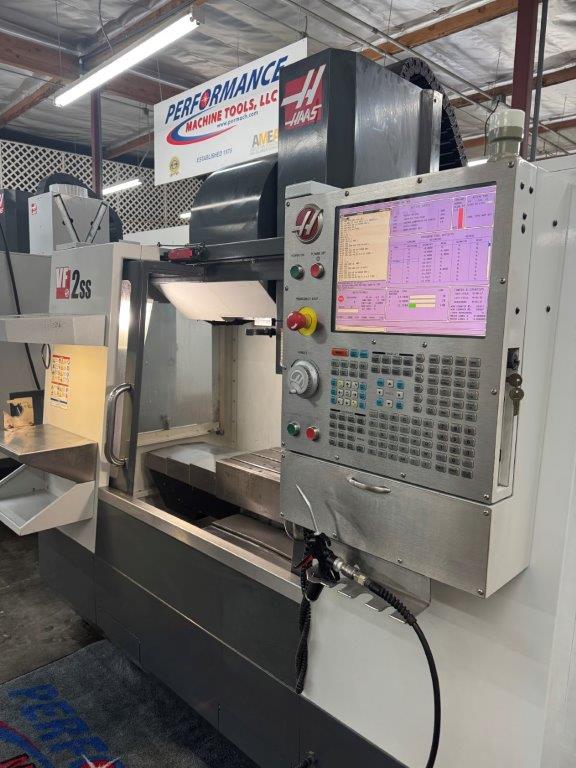

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

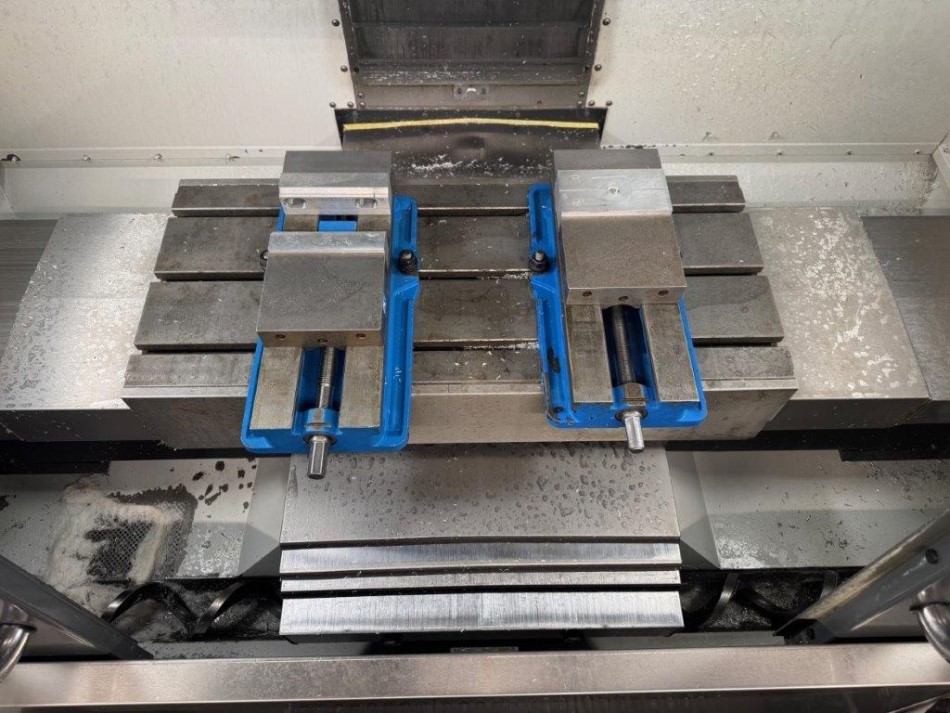

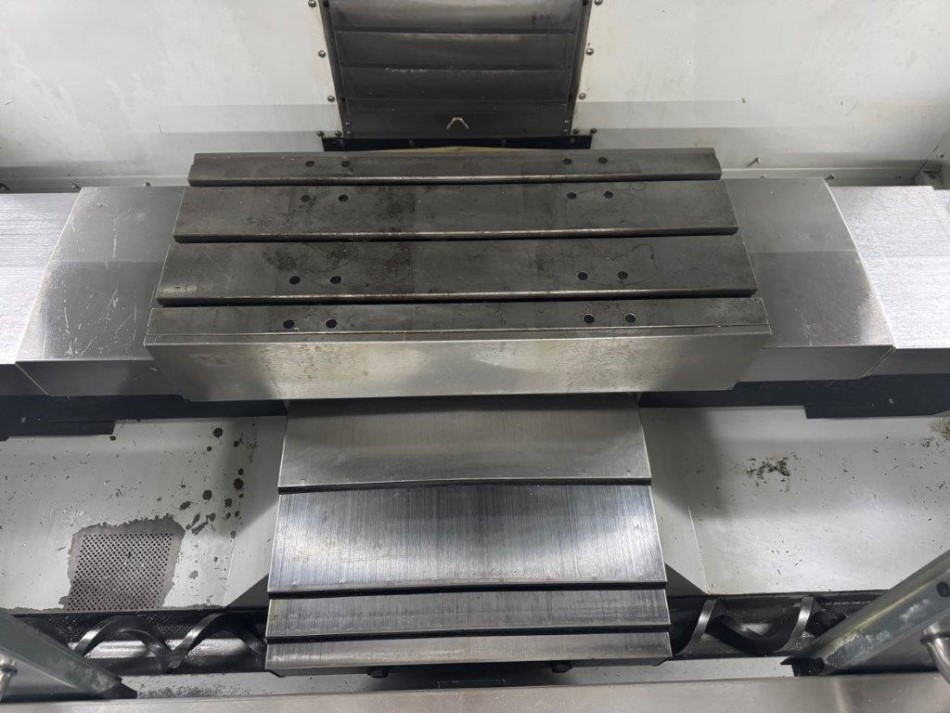

| TABLE WORKING SURFACE | 36 in. x 14 in. |
| TABLE LOAD CAPACITY | 1,500 LBS. |
| TRAVELS X, Y, Z | 30 in. x 16 in x 20 in. |
| FEED RATES, ALL AXES | 833 IPM |
| RAPID TRAVERSE RATE, ALL AXES | 1400 IPM |

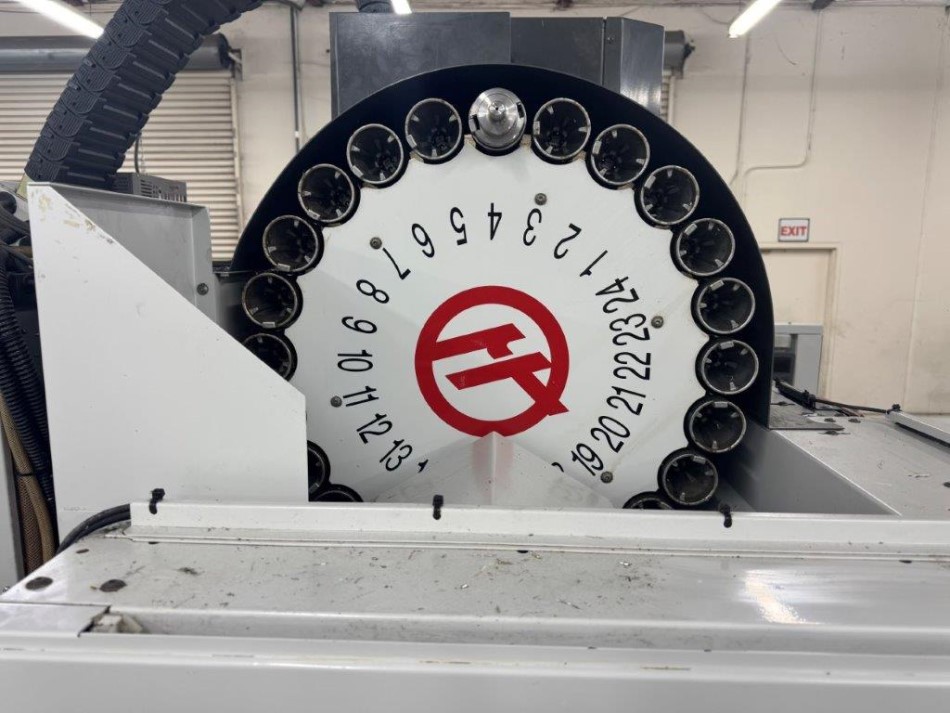

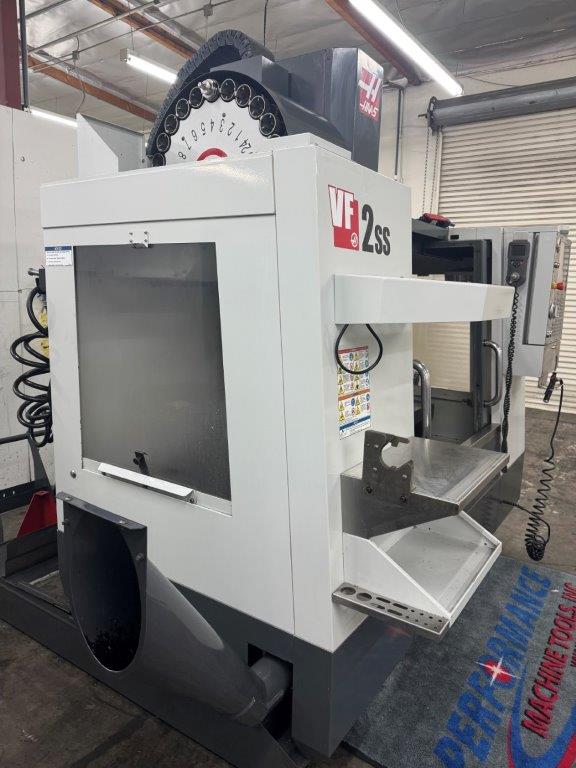

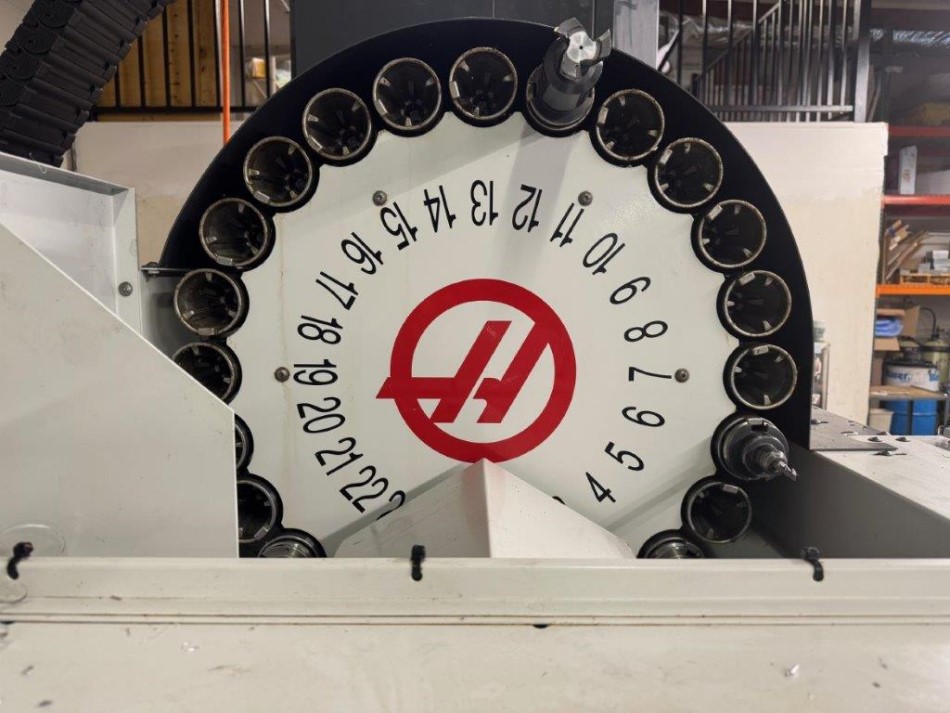

| TOOL CHANGER ARM STYLE | 24 + 1 |
| SPINDLE HORSE POWER | 30 HP |
| SPINDLE SPEEDS RANGE | 12,000 RPM / INLINE DIRECT DRIVE |
| SPINDLE TAPER | #CAT-40 |
| WAY SYSTEM | LINEAR GUIDEWAY |
| OVERALL DIMENSIONS | 88 in. x 92 in. x 104 in. H |
| APPROXIMATE WEIGHT-NET | 8,000 LBS |
EQUIPPED WITH:
|
