| Specification | Description |
|---|---|
| X, Y TRAVEL | 13.78" x 9.8" |
| Z TRAVEL | 9.8" |
| WORK TABLE SIZE | 21.65" x 13.78" |
| TABLE SURFACE HEIGHT | 33.46" |
| MAX WORKPIECE HEIGHT | 1100 LBS. |

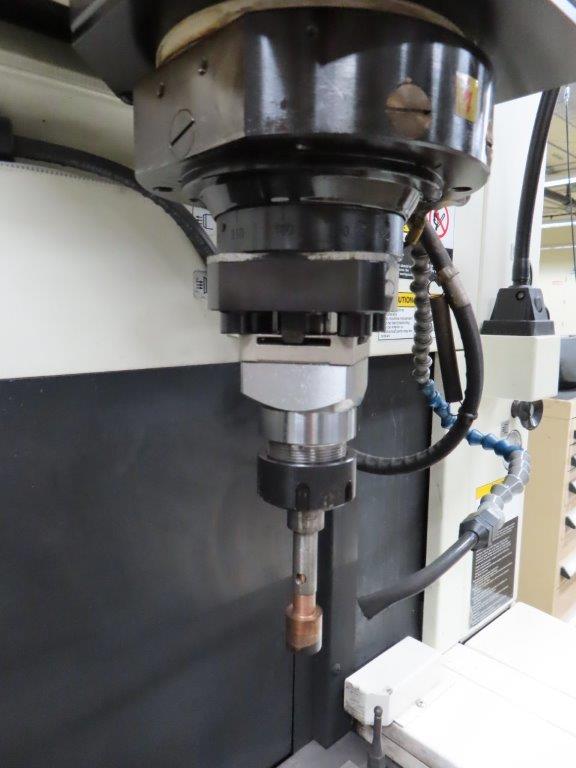

| HEAD | BUILT IN C AXIX MR HEAD |
| UNIVERSAL ATC FINGER SYSTEM | |
| ATC | 4 STATION |

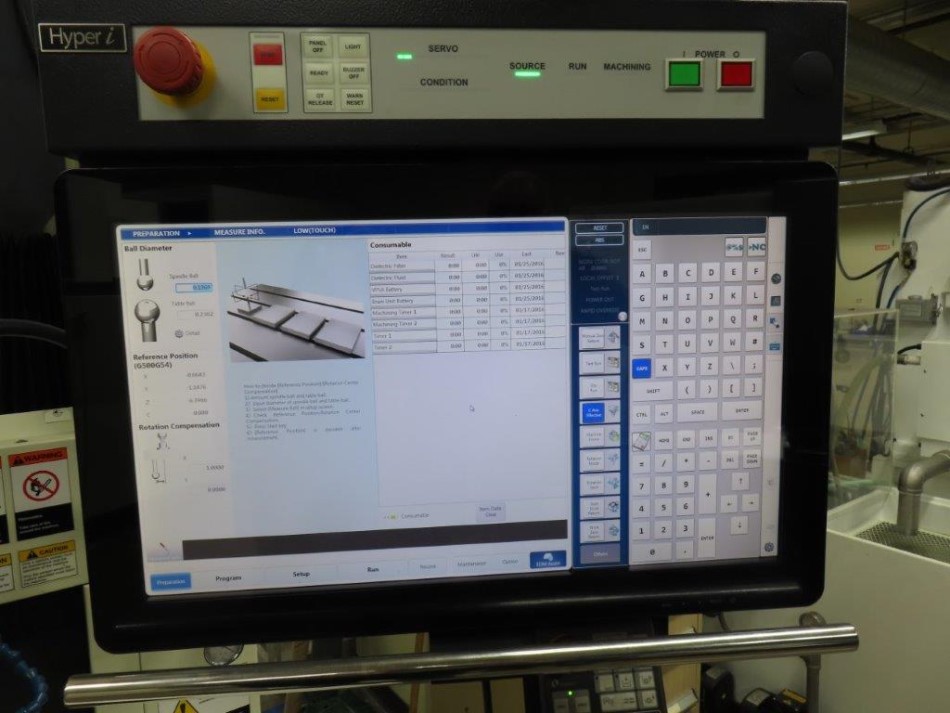

| CONTOL | ES100A (HYPER-I) |
| CURRENT | 30 AMP POWER SUPPLY UNIT |
| POWER | 60 HZ / 480V |
| DIELECTRIC FLUID COOLING UNIT | |
| FLUSHING NOZZLE SET | |
| LIGHTING | -LED |

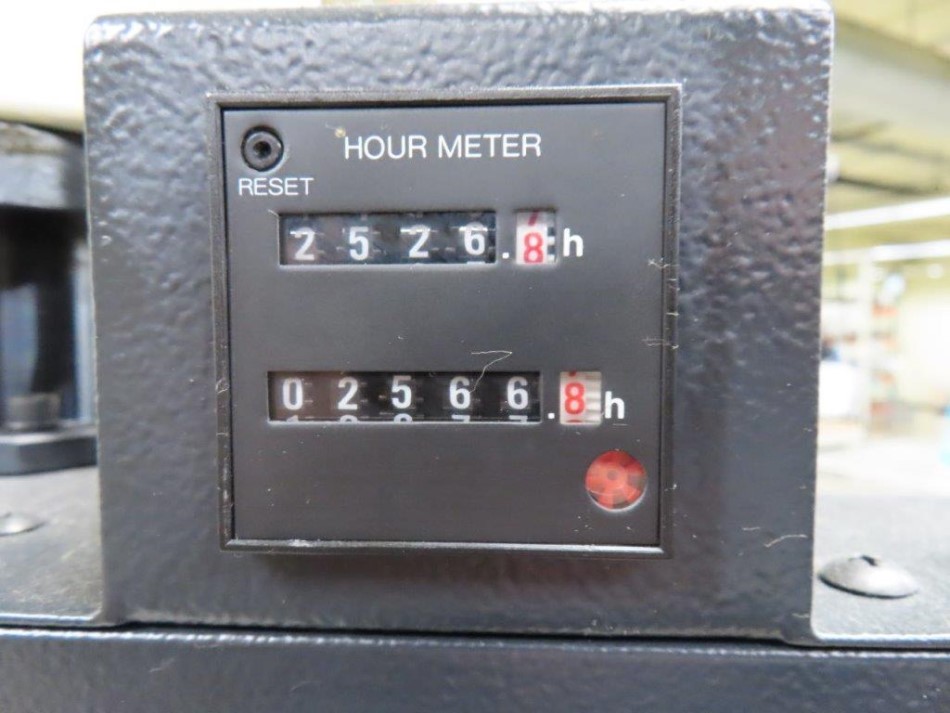

| RUN HOUR METER | |
| CENTERING PROBE MEASURING SET | |
| CLAMP SET | |
| HOURS | 2516 |
