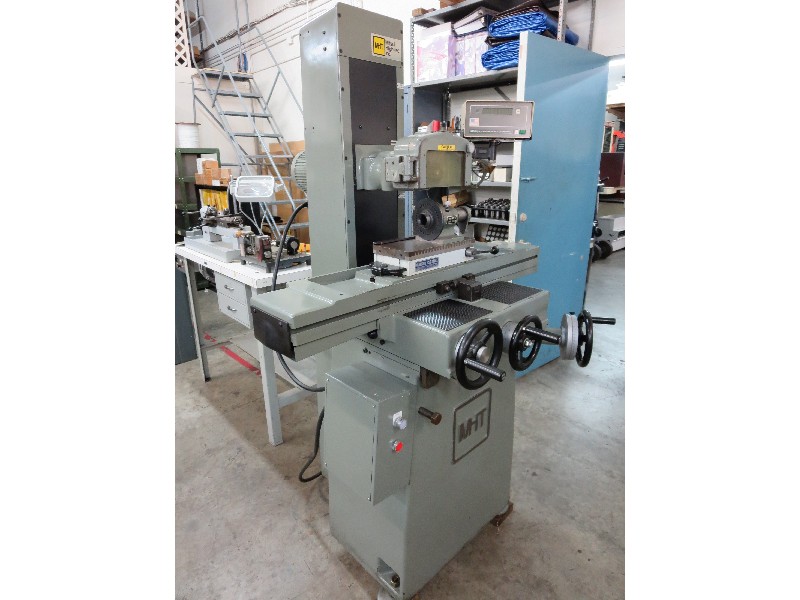

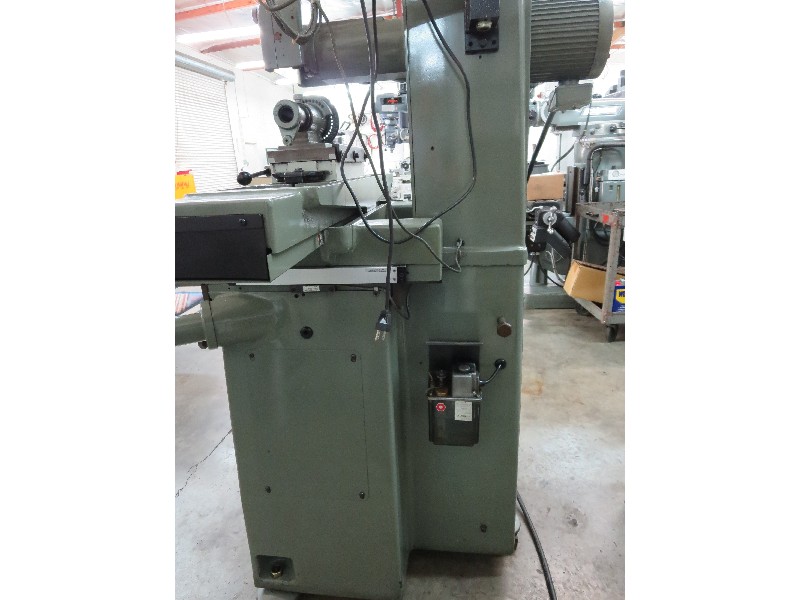

MITSUI HI-TEC MODEL MSG-200M 6 x 12 SUPER PRECISION MANUAL SURFACE GRINDER

MITSUI HI-TEC MODEL MSG-200M 6" x 12" SUPER PRECISION MANUAL SURFACE GRINDER

Stock Number: 1216

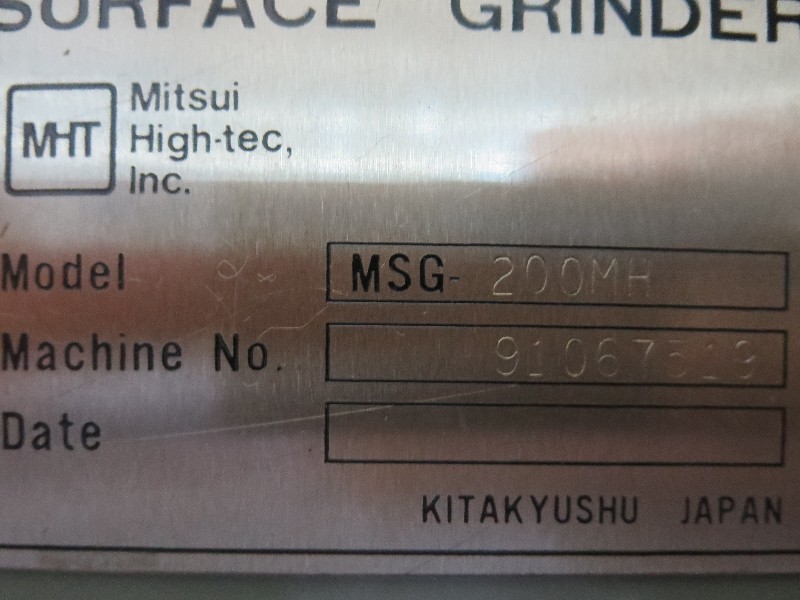

MITSUI MSG-200M

Age: 1991

Condition: VERY GOOD




Click to view larger photo

SpecificationDescription
WORKING SURFACE OF TABLE8" x 12"
SURFACE GROUND - MAXIMUM6" x 12"
RANGE - LONGITUDINAL15"
RANGE - CROSS (MANUAL)8"
RANGE - VERTICAL16"
ELEVATING HANDWHEEL GRADUATIONS0.00005"
CROSSFEED HANDWHEEL GRADUATIONS0.0001"
APPROXIMATE WEIGHT2,000 LBS.
FOOTPRINT58" x 46" x 71"

Equipped With:
BALL BEARING TABLE WAYS
HARDENED AND GROUND WAYS (REMOVABLE) ON TABLE, CARRIAGE/SADDLE, & COLUMN
AUTOMATIC LUBRICATION SYSTEM
8" x 3/4" x 1 1/4" GRINDING WHEEL

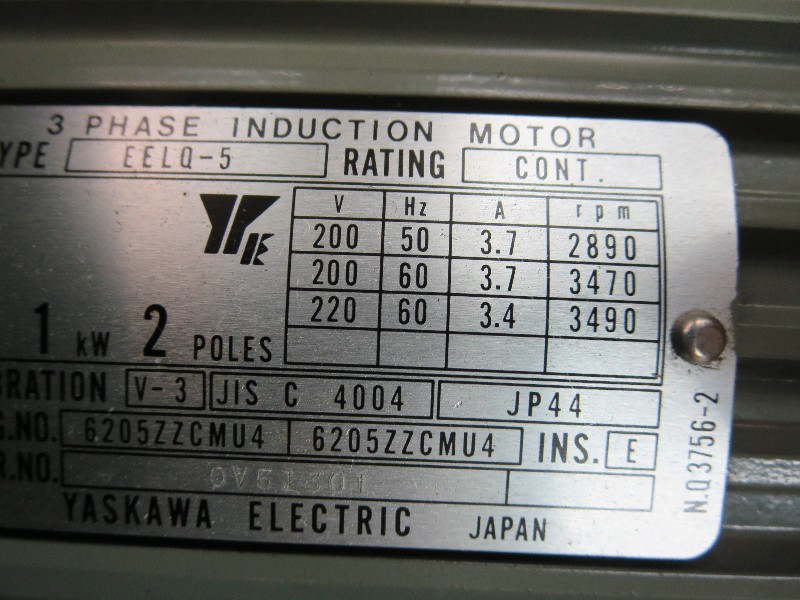

1.5 Kw / 3 / 60 / 200-220 SUPER PRECISION SPINDLE

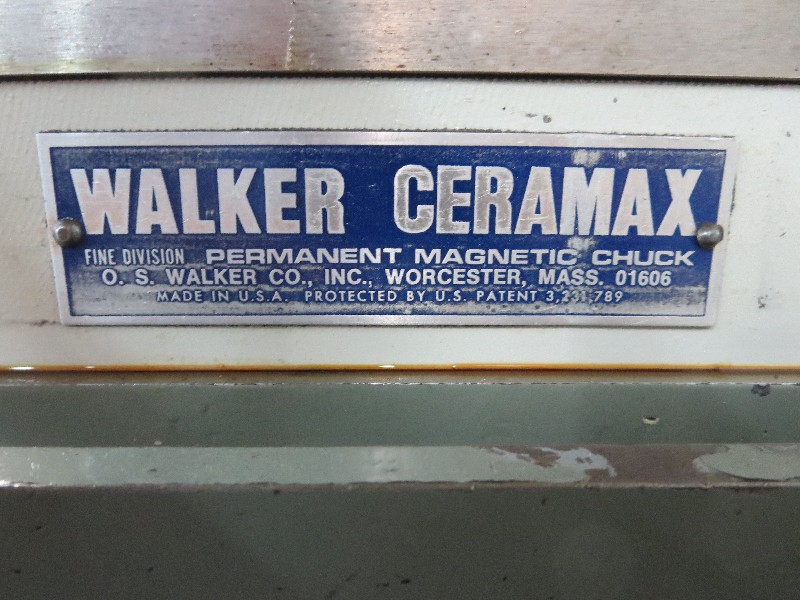

WALKER CERAMAX MEDIUM POLE CHUCK
MITUTOYO DRO ON CROSSFEED
