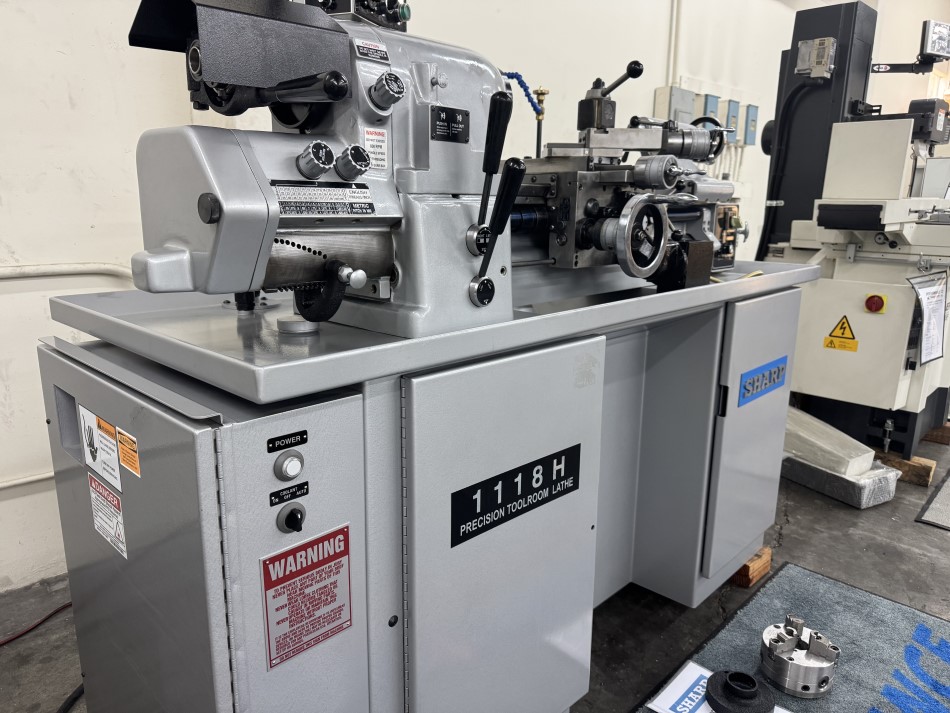

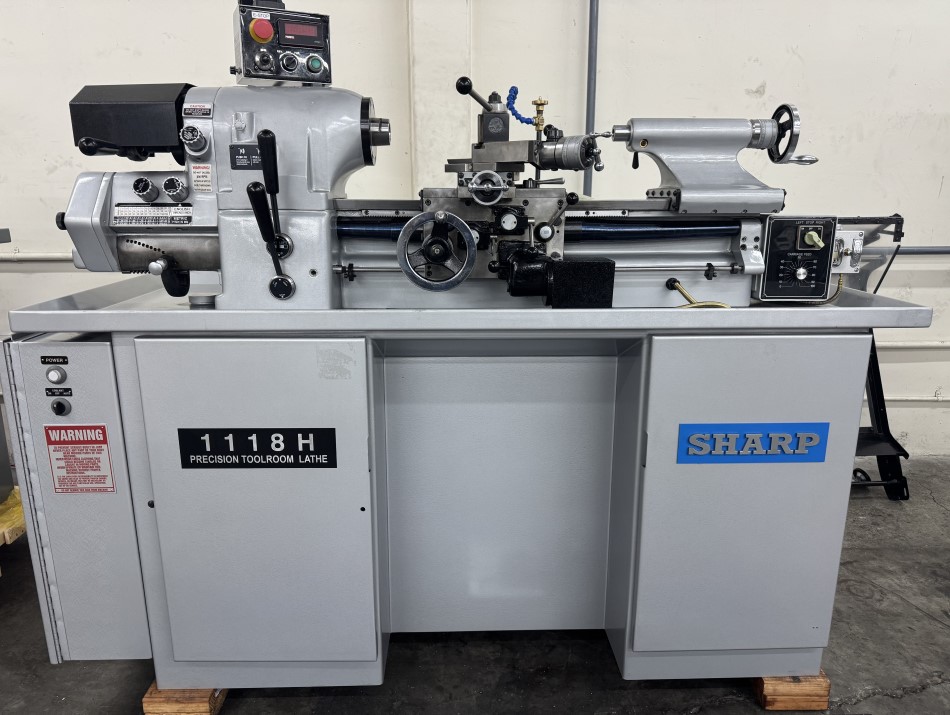

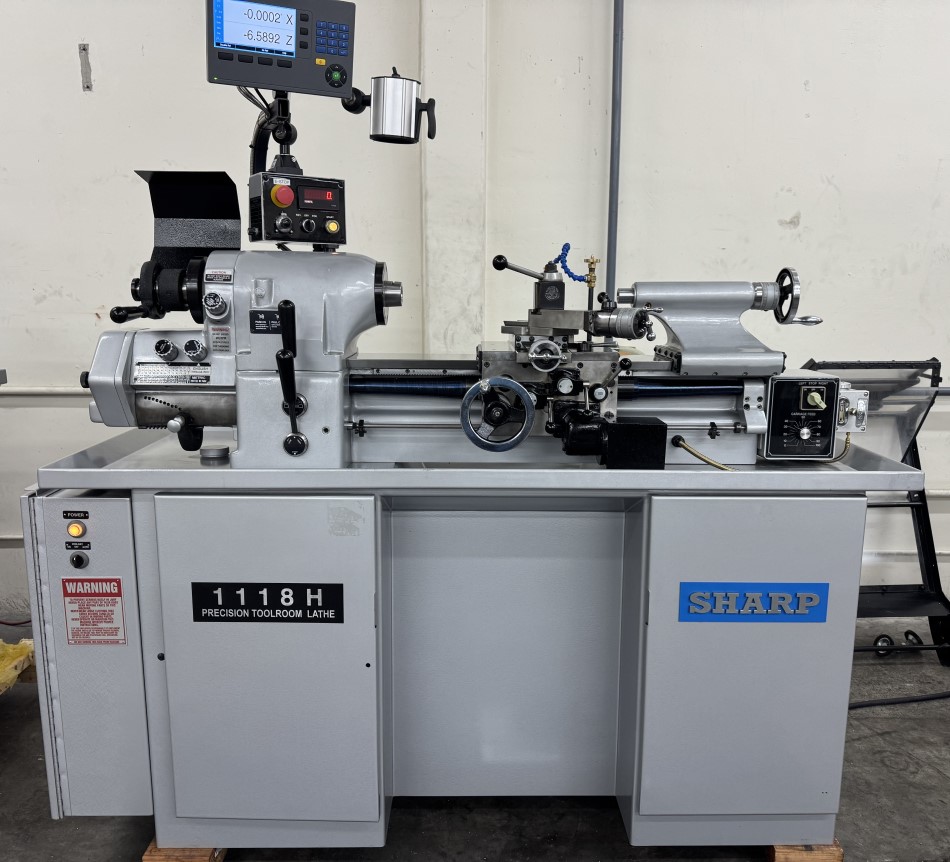

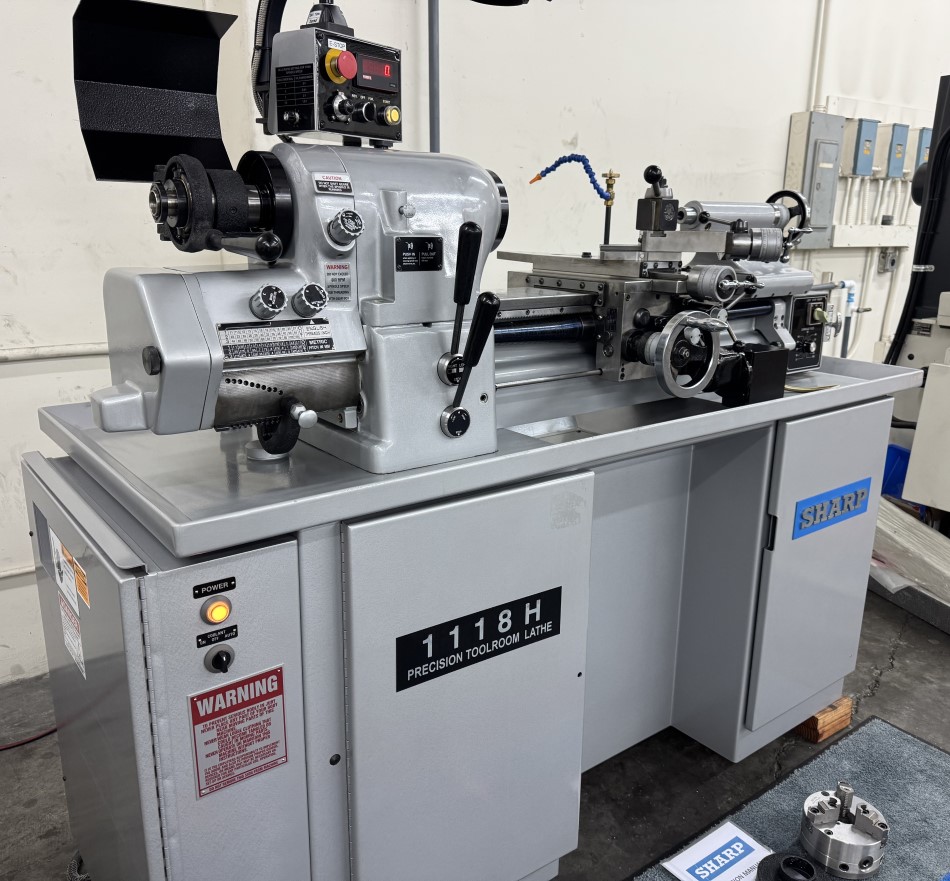

SHARP 1118H TOOLROOM LATHE – YEAR: 2020

Stock Number: 601

SPECIFICATIONS:
SWING OVER BED	11"
SWING OVER CARRIAGE	9"
SWING OVER CROSS SLIDE	6"
DISTANCE BETWEEN CENTERS	18"
HORSEPOWER	5 HP
SPINDLE	5C / 4 Degree Taper
HOLE THROUGH SPINDLE	1.25"
COMPOUND SLIDE TRAVEL	3"
SPEEDS	4000 RPM (Infinitely Variable)

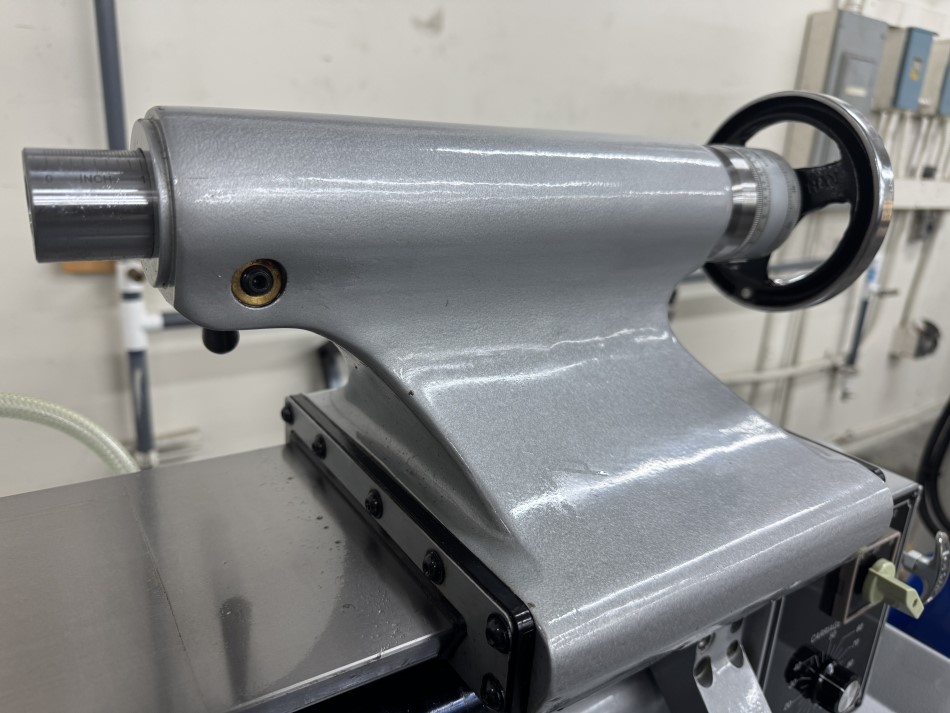

TAILSTOCK	#2 MT
TAILSTOCK SPINDLE DIAMETER	1 3/8"
THREADING	INCH / METRIC
INCH THREADS	11 ~ 108 TPI (36 changes)
METRIC THREADS	0.275 ~ 2.7 mm (36 changes)
APPROX DIMENSIONS	73” L-R x 30” F-B x 67” H

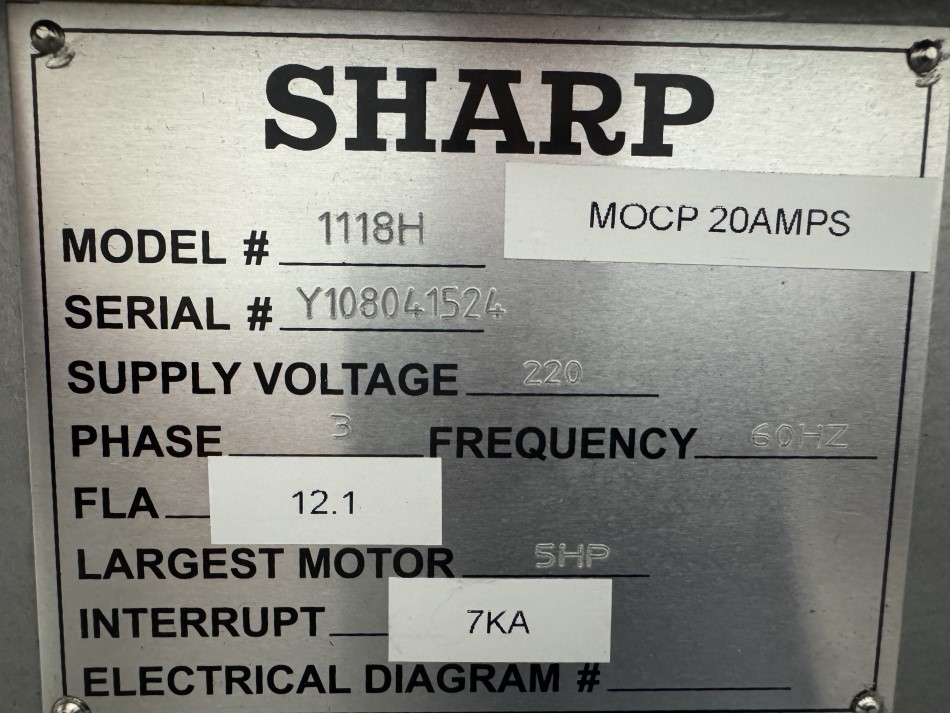

POWER	220V / 3 PHASE
WEIGHT:	2,024 LBS

EQUIPPED WITH:

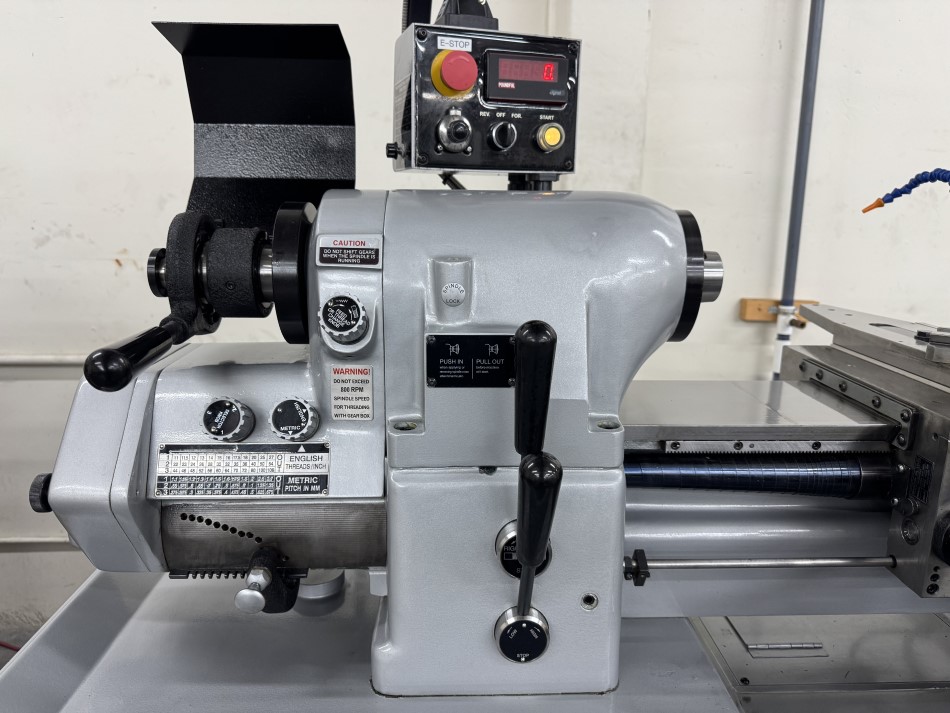

DIGITAL VARI SPEED (DVS) DRIVE SYSTEM

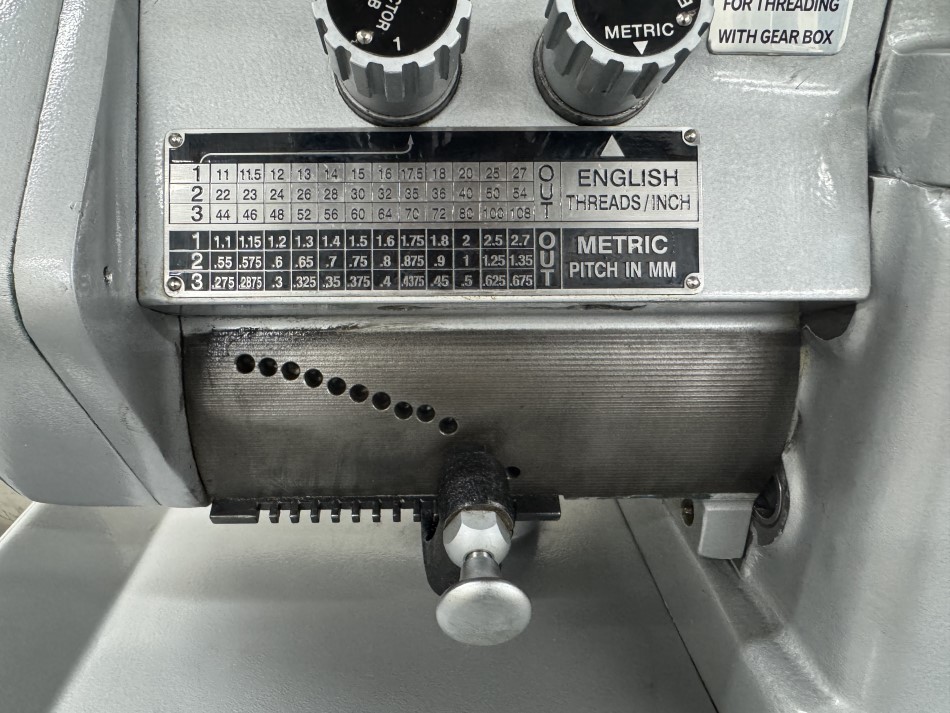

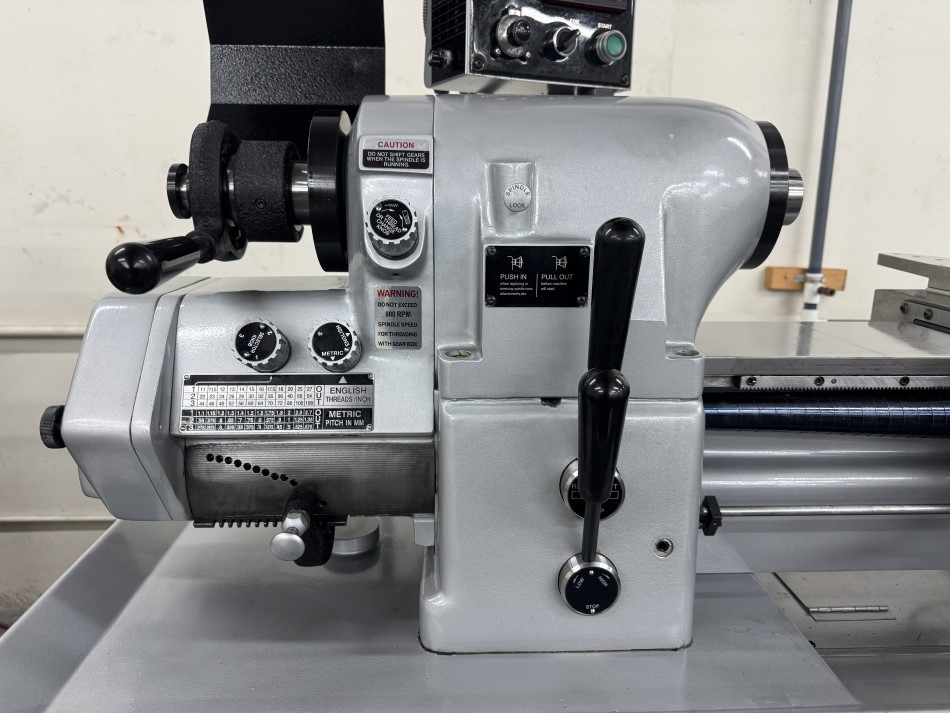

DUAL RANGE INCH / METRIC QUICK CHANGE GEAR BOX
SPINDLE RUNOUT within 50 MILLIONTHS (new machine spec)

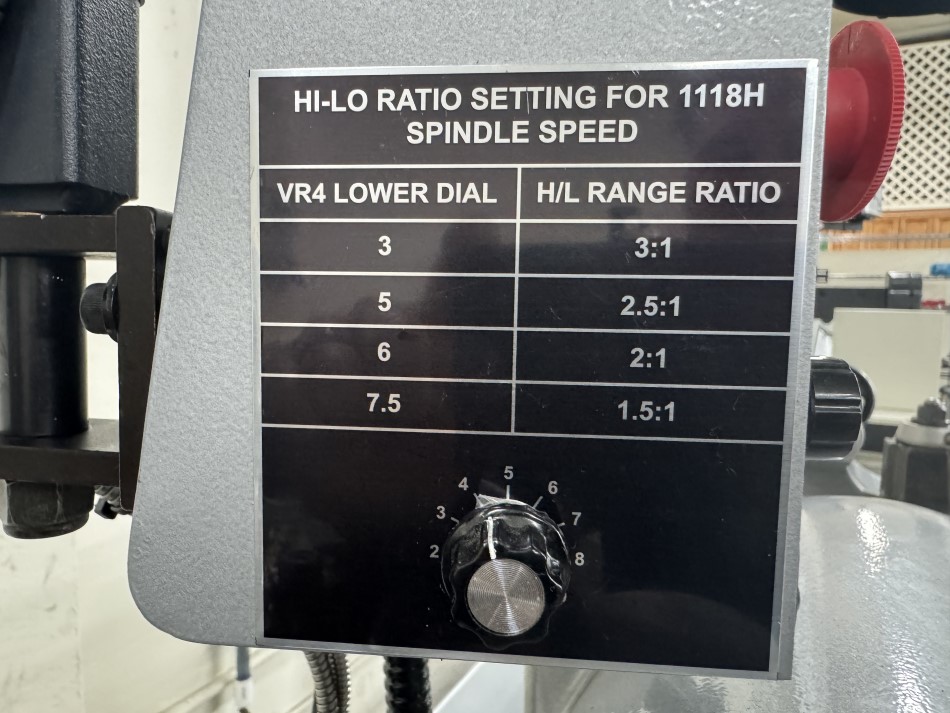

INFINITELY VARIABLE SPINDLE SPEEDS from 50-4000 RPM
COOLANT SYSTEM

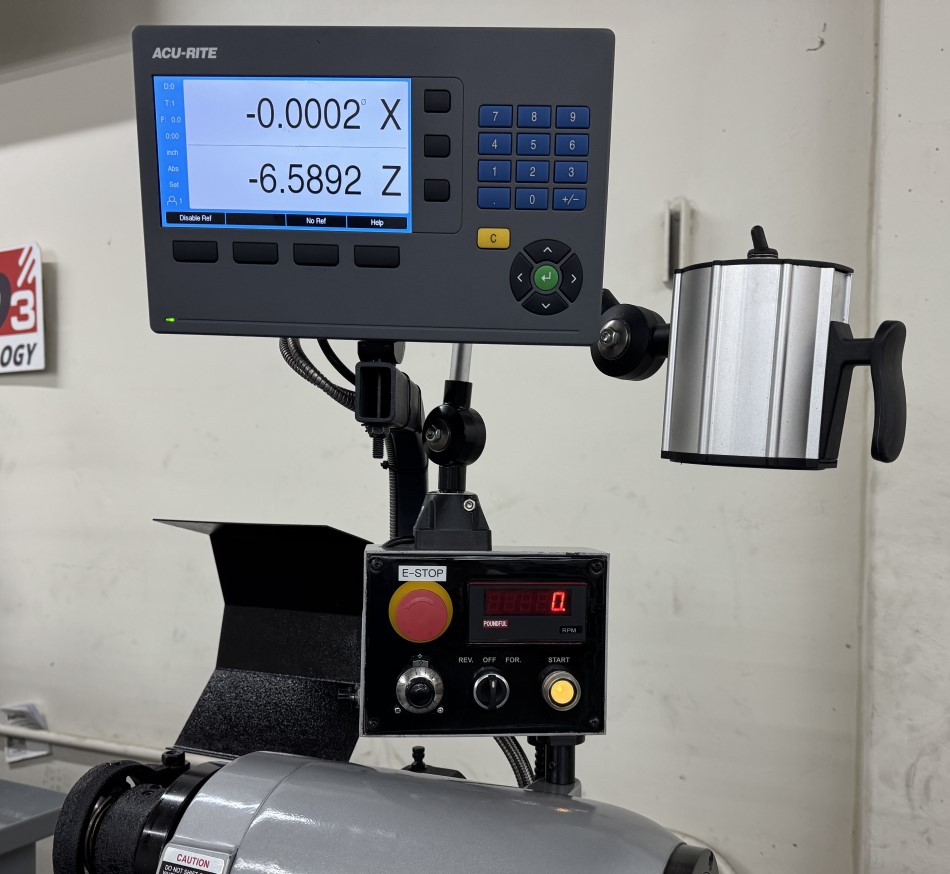

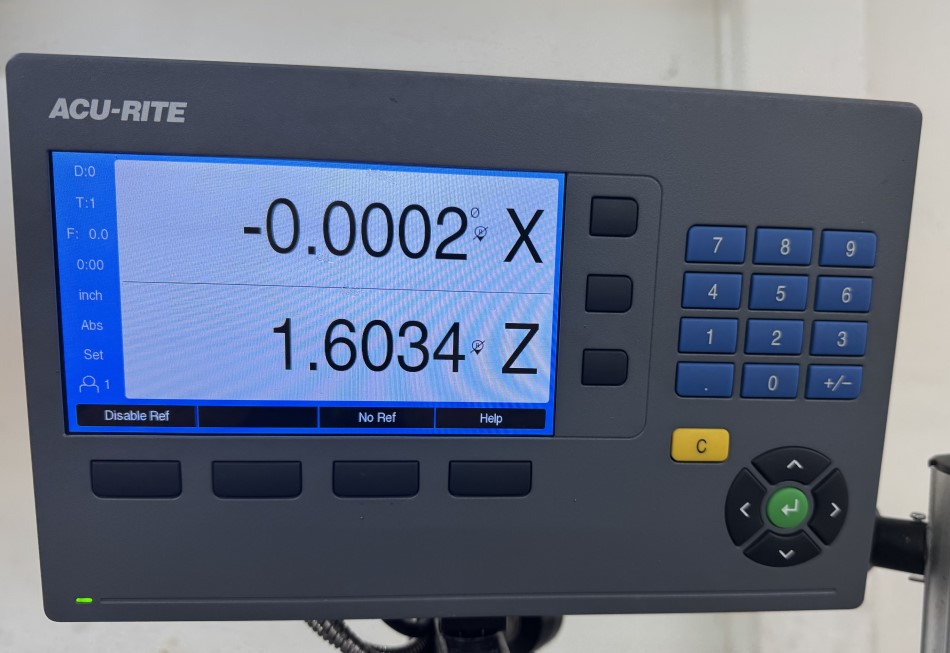

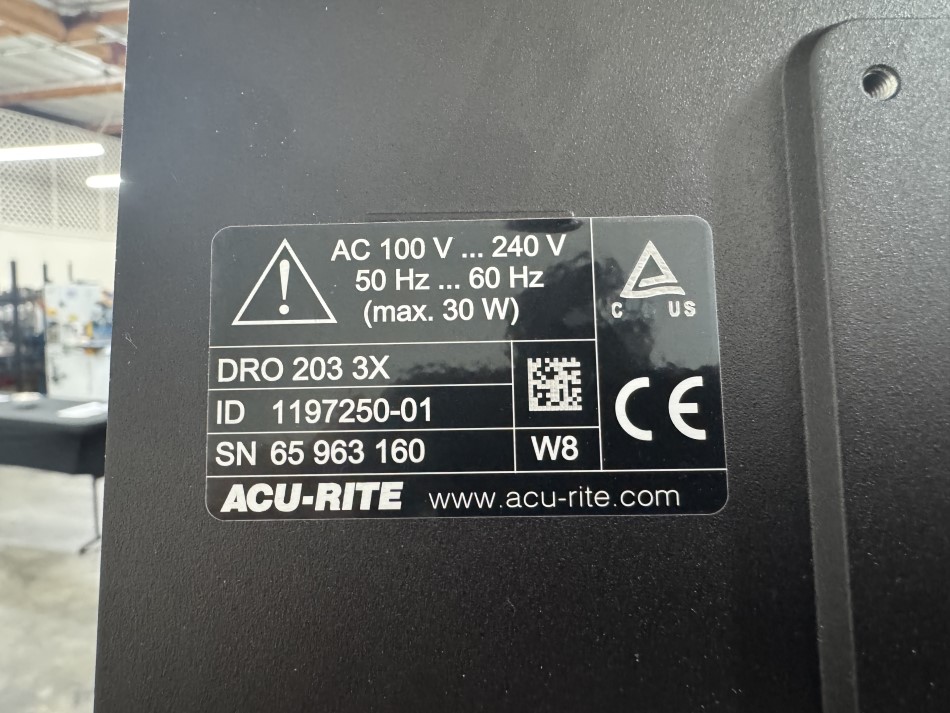

ACU-RITE 200S 2XG TWO AXIS DRO SYSTEM

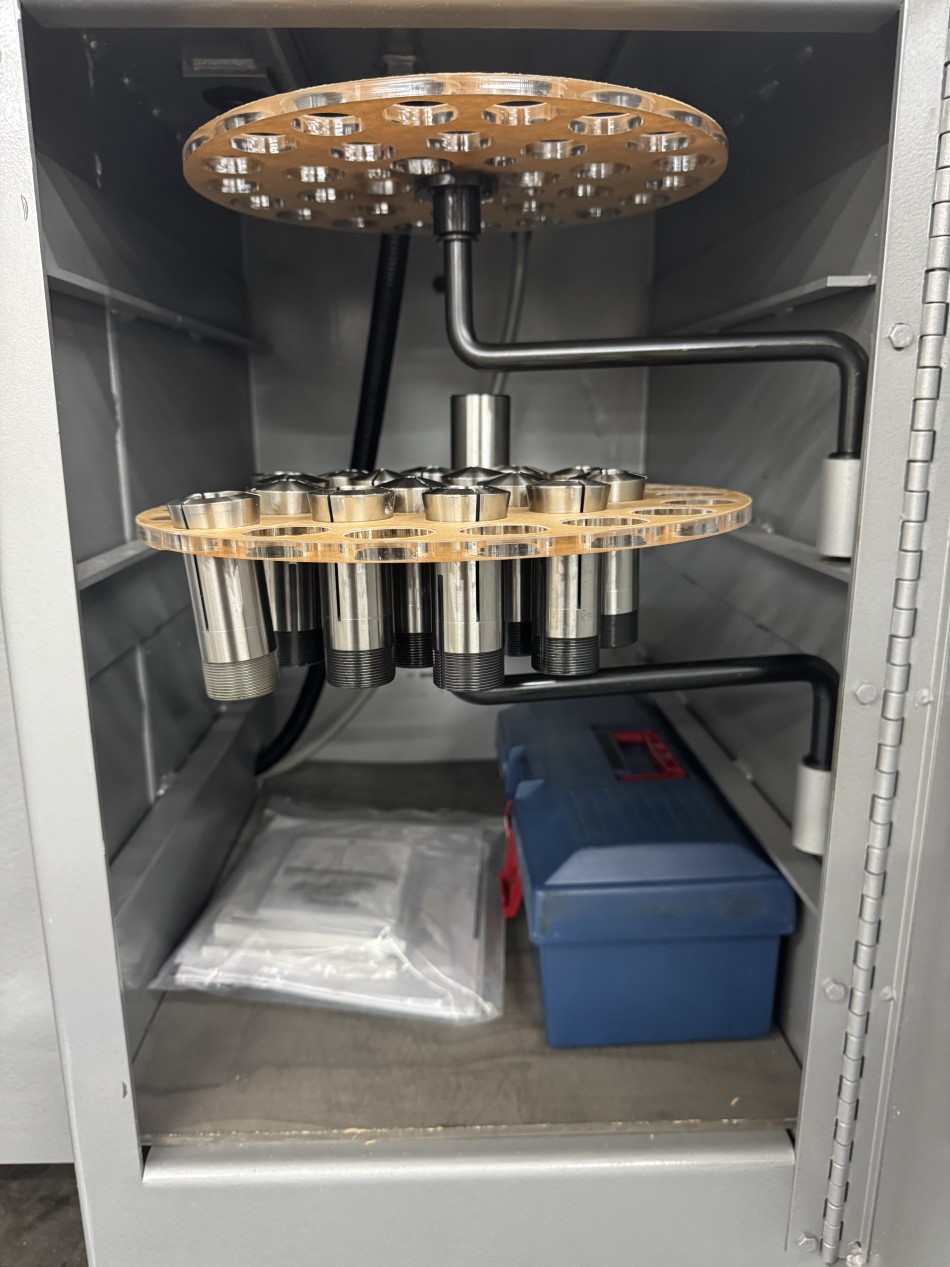

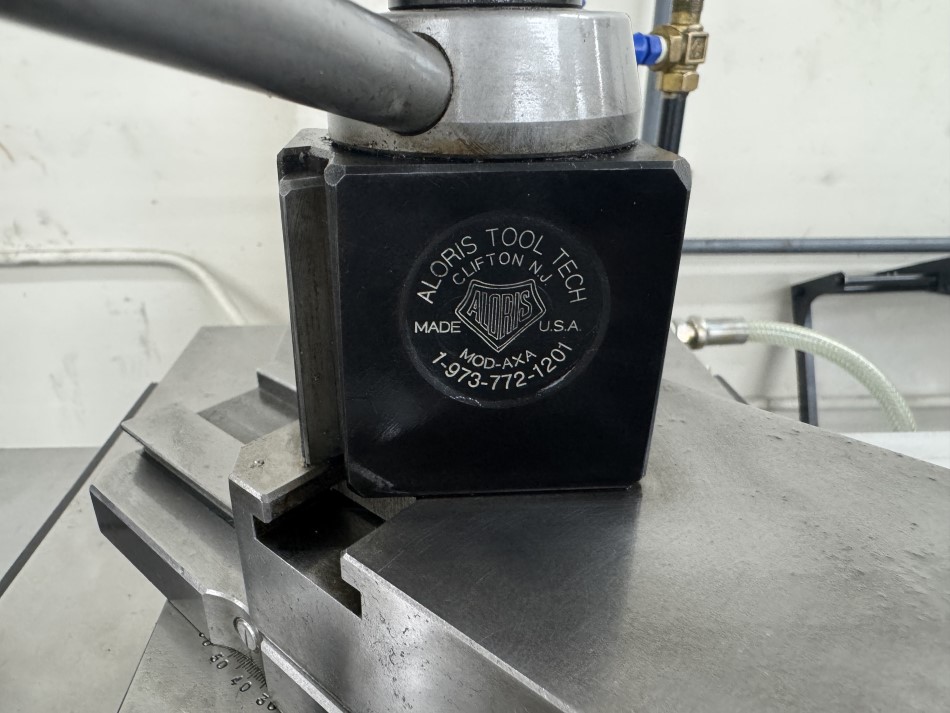

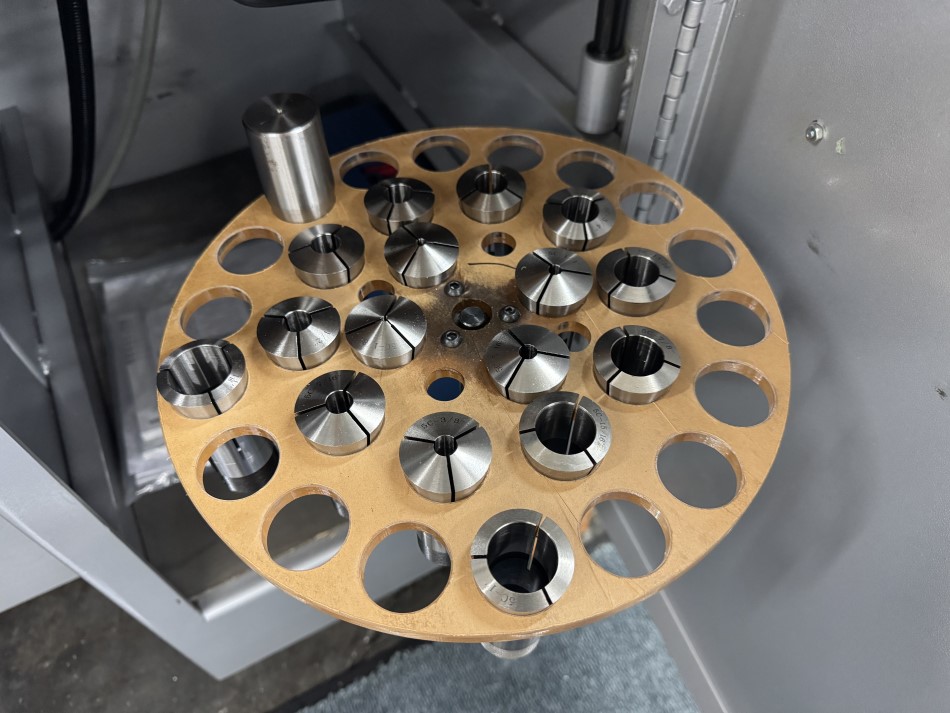

ALORIS AXA QUICK CHANGE TOOL POST SET of 5C COLLETS

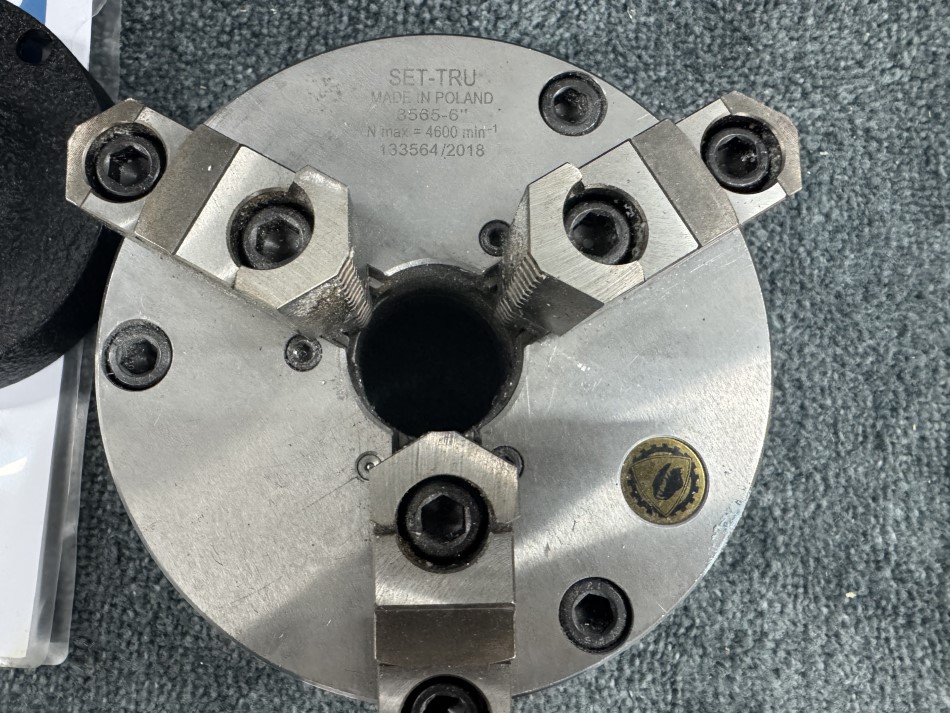

6" 3 JAW BISON SET-TRU CHUCK with BACKING PLATE

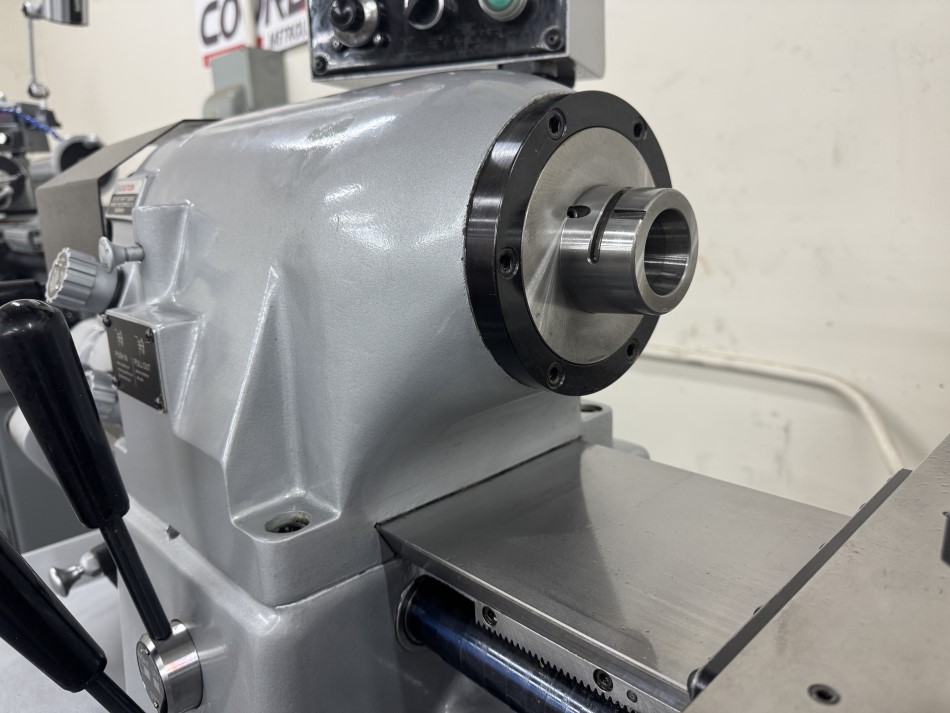

BUILT IN 5C LEVER COLLET CLOSER

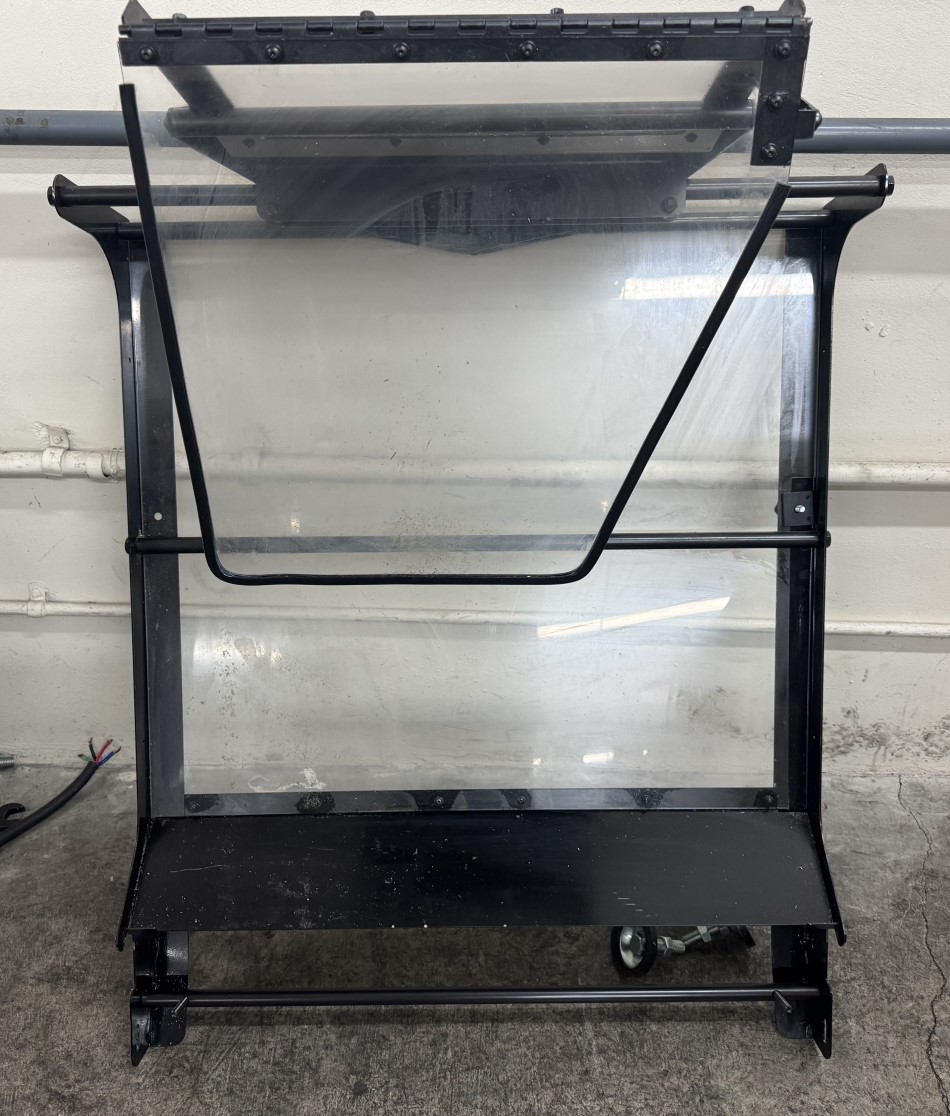

REAR SPLASHGUARD / CHIP & COOLANT SHIELD
HALOGEN WORK LIGHT
