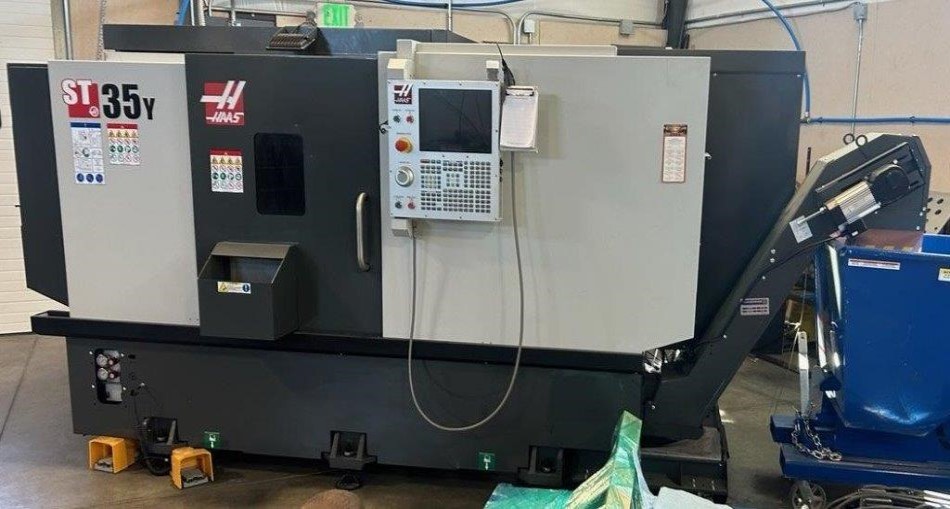

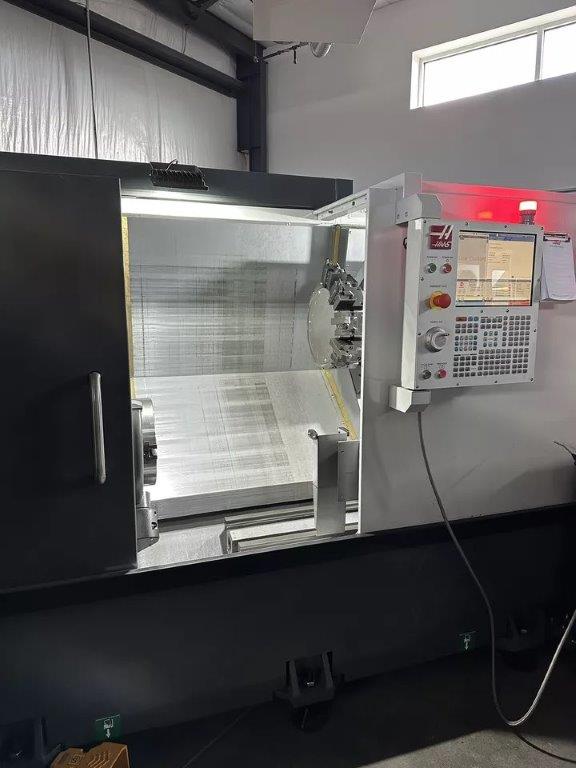

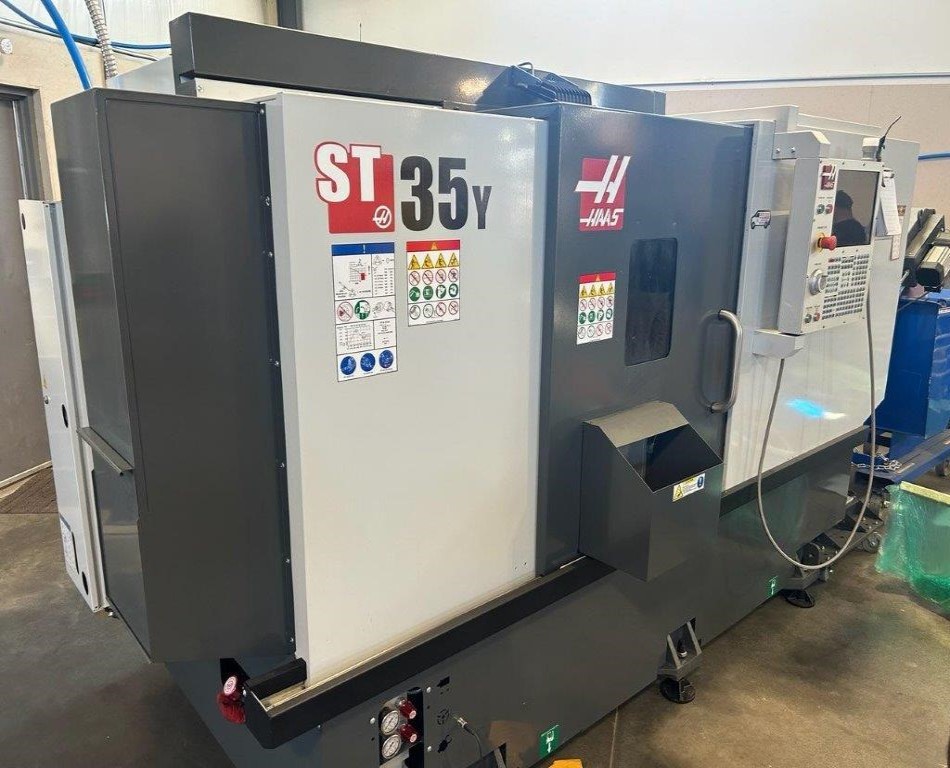

HAAS ST-35Y CNC LATHE

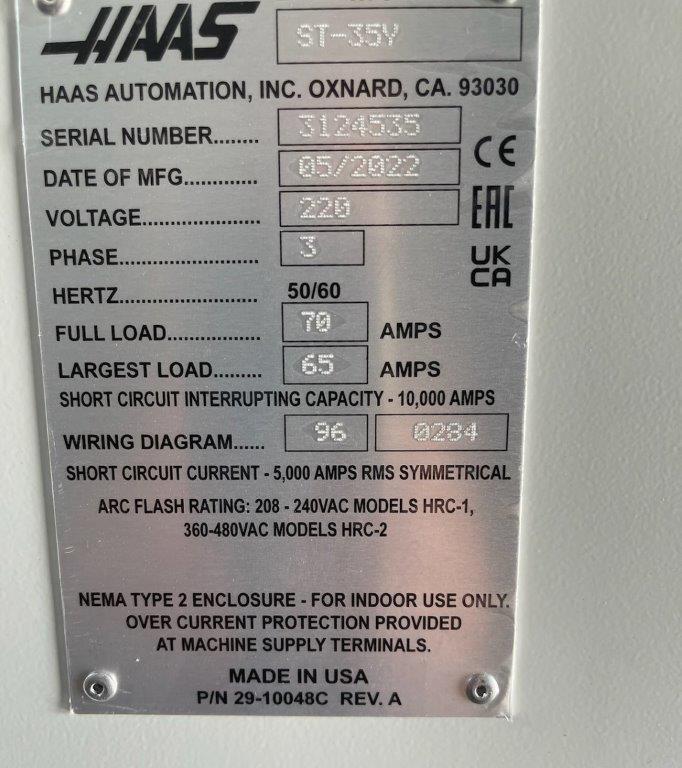

BUILT DATE: 5-2022
Stock Number: 566
| Specification |
Description |

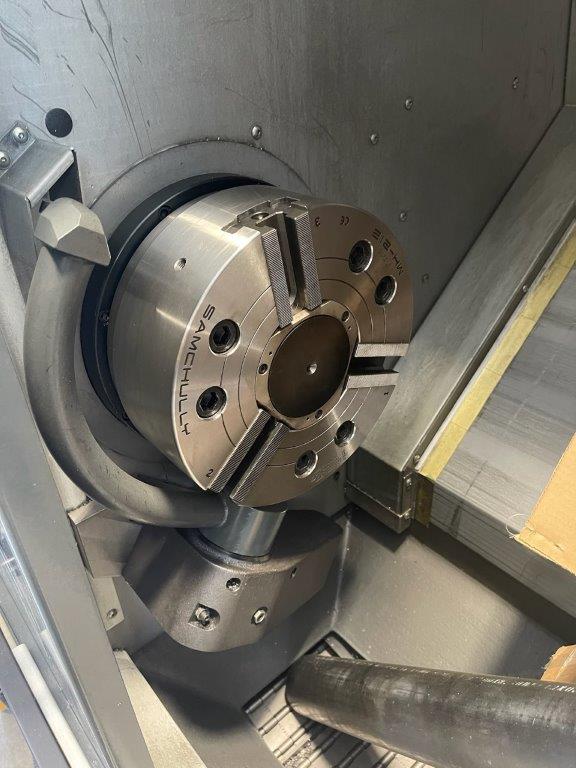

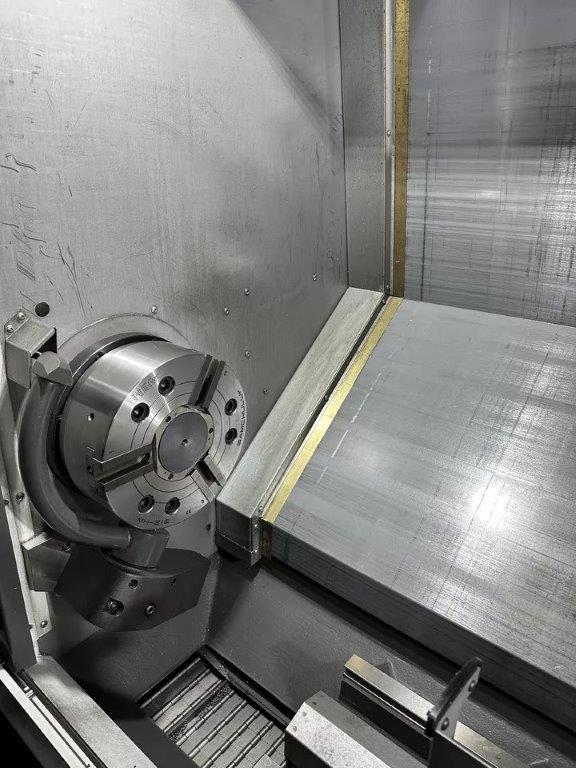

| CHUCK SIZE |
12 in. CHUCK |
| BAR CAPACITY |
4 in. |
| POWER |
40HP |
| MAX PART SWING |
21 in. |
| MAX CUT DIAMETER |
13.75 in. |
| MAX CUTTING LENGTH |
32.5 in. |
| MAX SPINDLE SPEED |
3200 RPM |
| MAX LIVE TOOL SPINDLE SPEED |
4000 RPM |
| SPINDLE NOSE |
A2-8 |

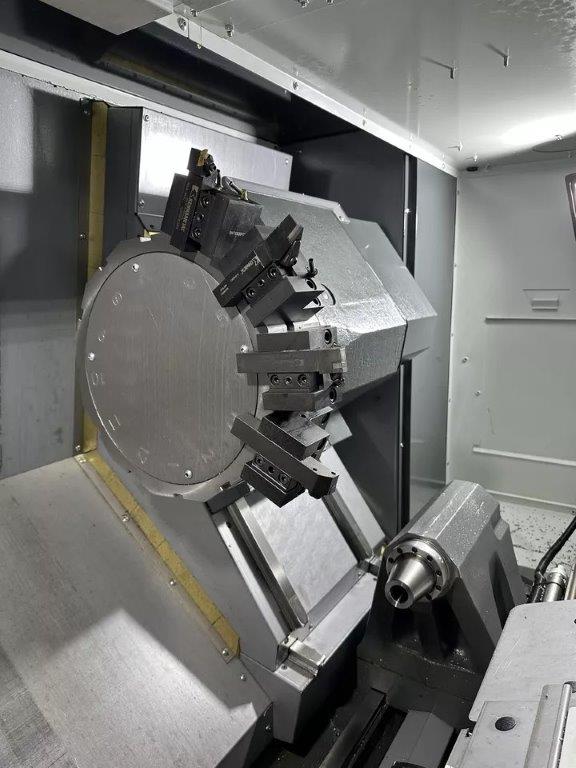

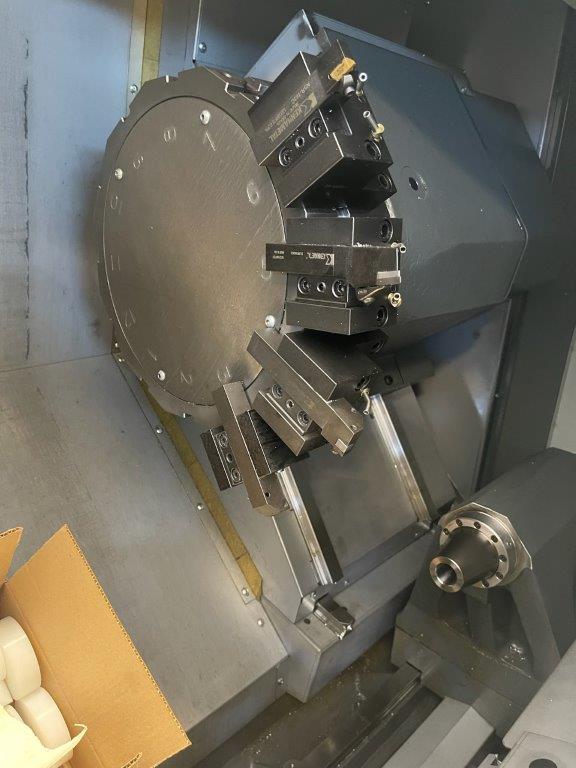

| TURRET |
BMT-65 LIVE TOOL TURRET |
| RAPIDS ON X & Y |
472 IPM |
| RAPIDS ON Z |
945 IPM |
| COOLANT CAPACITY |
55 GALLON |
Equipped With:
- PROGRAMMABLE HYDRUALIC TAILSTOCK

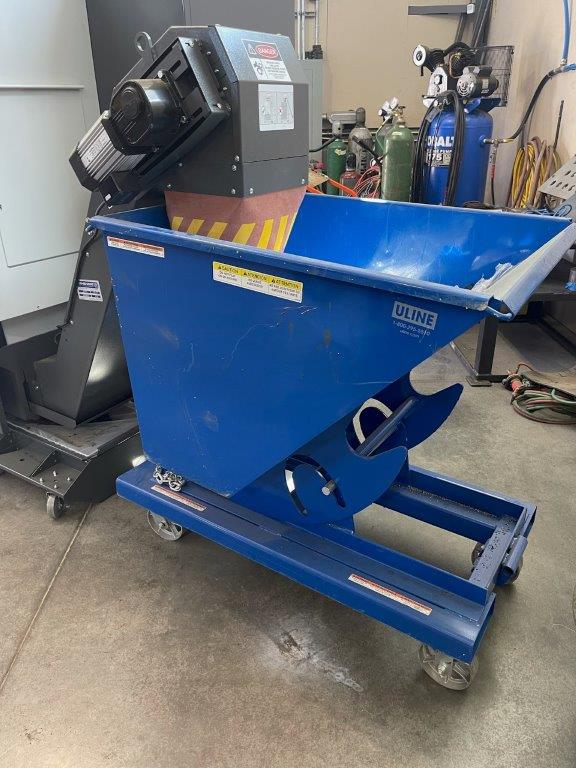

- CHIP CONVEYOR (HENNIG BRAND)
- AUOTOMATIC TOOL PRESETTER
- PARTS CATCHER
- HIGH PRESSURE COOLANT at 1000 PSI
- HIGH INTENSITY LIGHTING
- CHIP Strainer chip tray filter kit
- Liner Kit 4.00 12 Universal liner set, 0.75” to 3.125”

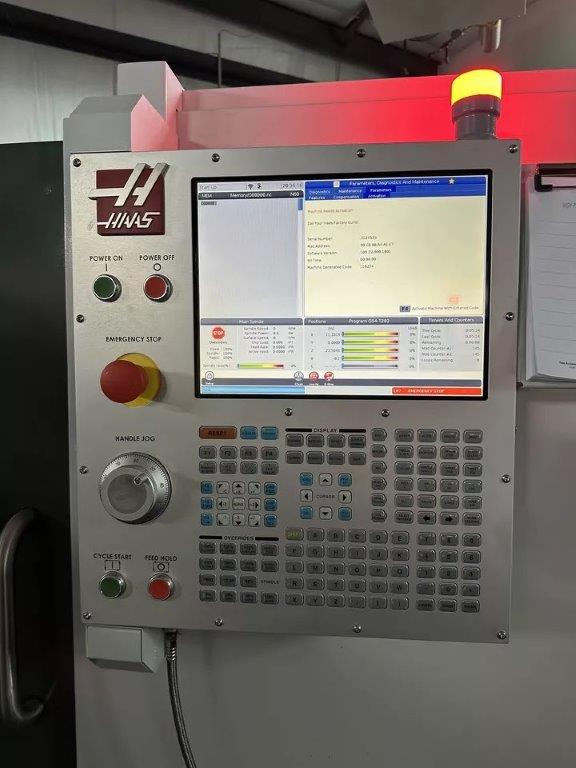

- 1GB MEMORY

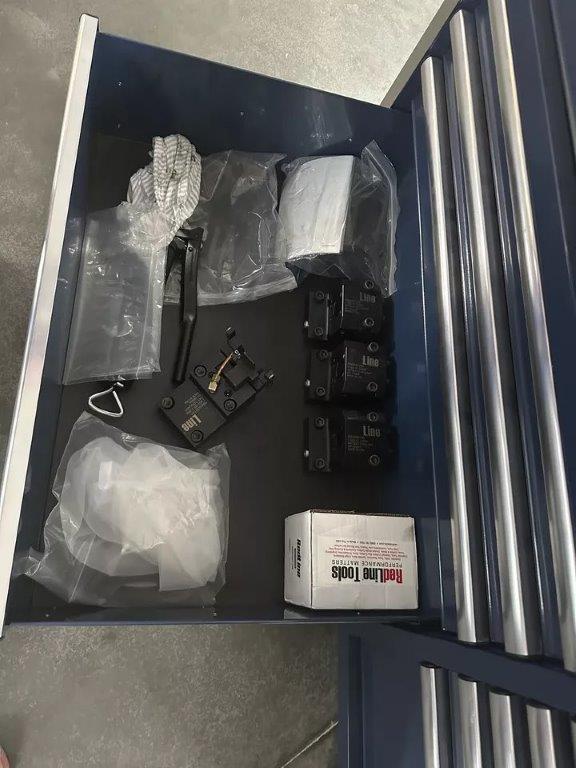

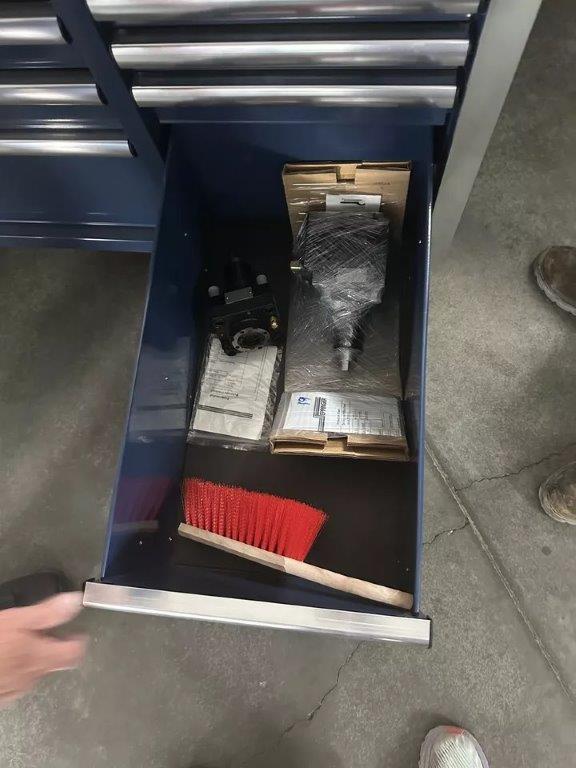

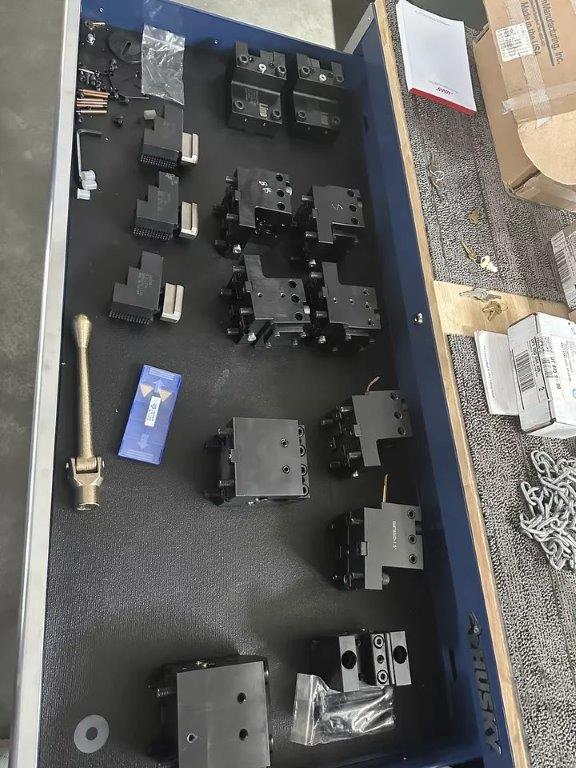

- (2) Live Holders ~ 1 Axial and 1 Radial
- Machine Weight: 14,300 LBS.
