| Specification | Description |
|---|---|
| CHUCK SIZE | 6 in. |
| MAXIMUM DIAMETER BAR CAPACITY | 1.7 in. |
| MAXIMUM SWING OVER BED | 15.7 in. |
| MAXIMUM TURNING DIAMETER / STD | 11.8 |
| MAXIMUM MACHINING LENGTH | 15.7" |
| MAIN MOTOR | 20 HP |

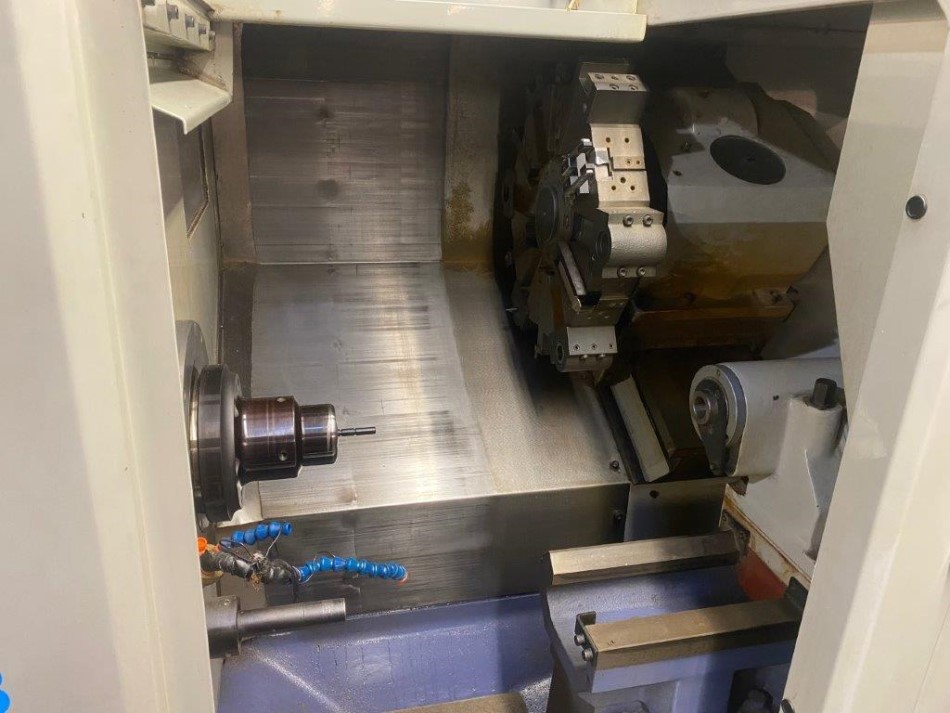

| TURRET – SERVO DRIVEN - # of STATIONS | 12 |
| TURRET INDEX TIME | 0.2 seconds |
| SPINDLE SPEED | 50 - 5000 RPM |
| SPINDLE BORE | 2.95 in. |
| SPINDLE NOSE | A2-6 |
| X & Z AXIS RAPID TRAVERSE RATES | 1181 IPM |
| X-AXIS TRAVEL | 7.6" |
| Z-AXIS TRAVEL | 16.9" |
| TAILSTOCK TAPER | MT#3 |
| DIMENSIONS | 66" x 91" x 69”" |
| WEIGHT | 7,700 LBS. TURRET |
| POWER REQUIRED | 220V / 3 Phase / 60 AMP |
Equipped With:
