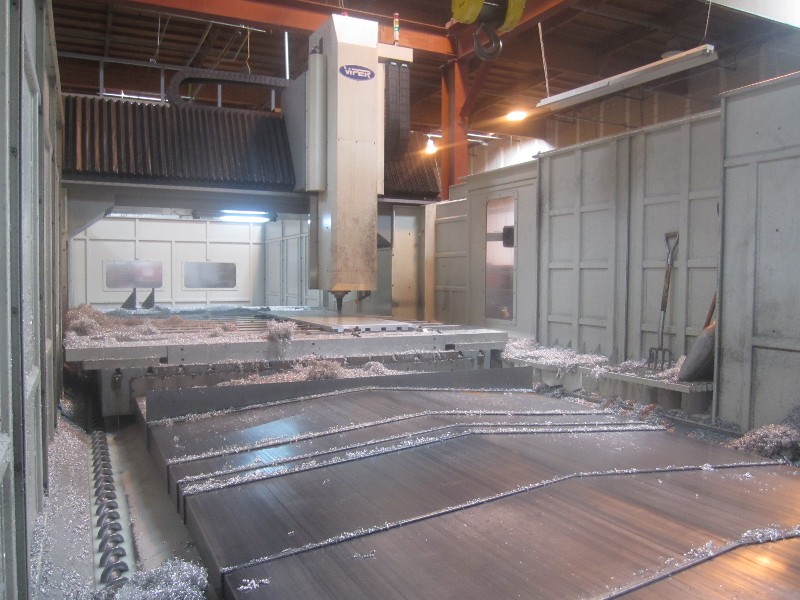

| Specification | Description |
|---|---|

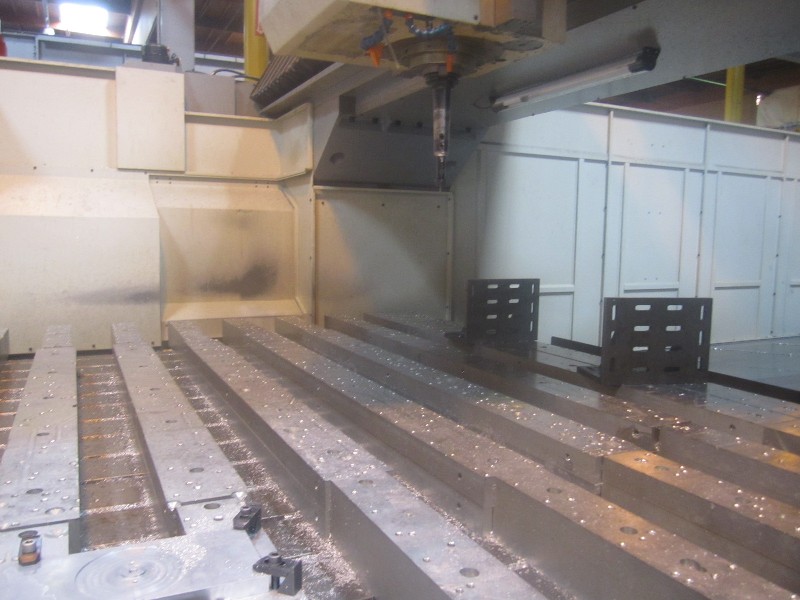

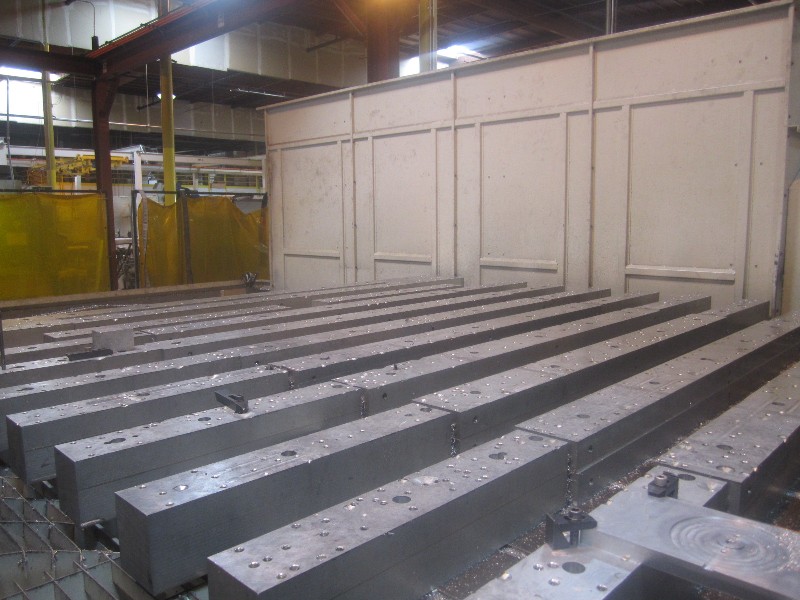

| TABLE WORKING SURFACE | 204.72" x 118.11" |
| TABLE LOAD CAPACITY | 35,273 LBS. |
| LONGITUDINAL TRAVEL (X-AXIS) | 200.79" |
| CROSS TRAVEL (Y-AXIS) | 133.86" |
| VERTICAL TRAVEL (Z-AXIS) | 42.13" EXTENDED Z |
| DISTANCE BETWEEN COLUMNS | 140.16" |
| DISTANCE SPINDLE NOSE TO TABLE TOP | |
| CUTTING FEED RATES, ALL AXES | 196 IPM |
| RAPID TRAVERSE RATE, ALL AXES | 393 IPM |
| TOOL STORAGE CAPACITY | 60 TOOLS |
| SPINDLE HORSEPOWER | 35 HP |
| SPINDLE SPEEDS RANGE | 6000 RPM / 2 SPEED GEAR BOX |
| SPINDLE TAPER | CAT-50 |
| OVERALL DIMENSIONS | 509" x 291" |
| APPROXIMATE WEIGHT - NET | 158,590 LBS |
