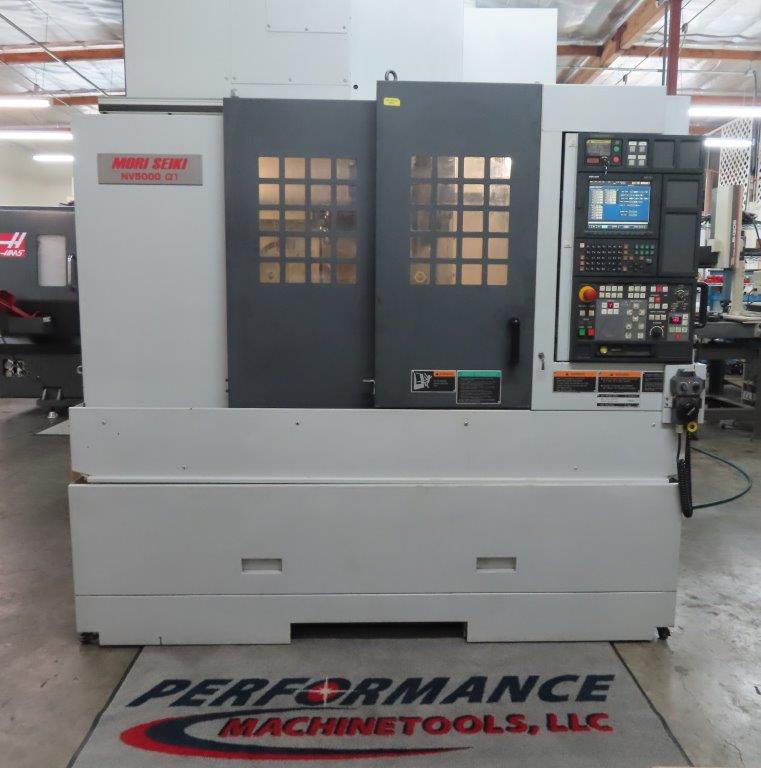

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| TABLE WORKING SURFACE | 43.3" x 23.6" |
| TABLE LOAD CAPACITY | 2,200 LBS. |
| LONGITUDINAL TRAVEL (X-AXIS) | 31.5" |
| CROSS TRAVEL (Y-AXIS) | 20" |
| VERTICAL TRAVEL (Z-AXIS) | 20" |
| SPINDLE NOSE TO TABLE | 5.9"- 26" |
| RAPID TRAVERSE RATE, X-Y | 1653 IPM |
| TOOL STORAGE CAPACITY | 30 ARM TYPE |
| SPINDLE HORSEPOWER | 25 / 30 HP |
| SPINDLE SPEEDS RANGE | 20,000 RPM |
| SPINDLE TAPER | BT-40 |
| WAY SYSTEM | LINEAR |
| OVERALL DIMENSIONS | 97" x 107" x 103" |
| APPROXIMATE WEIGHT - NET | 14,3000 LBS. |
| POWER | 220V / 3PH / 33 KVA / 50HZ |
EQUIPPED WITH:
