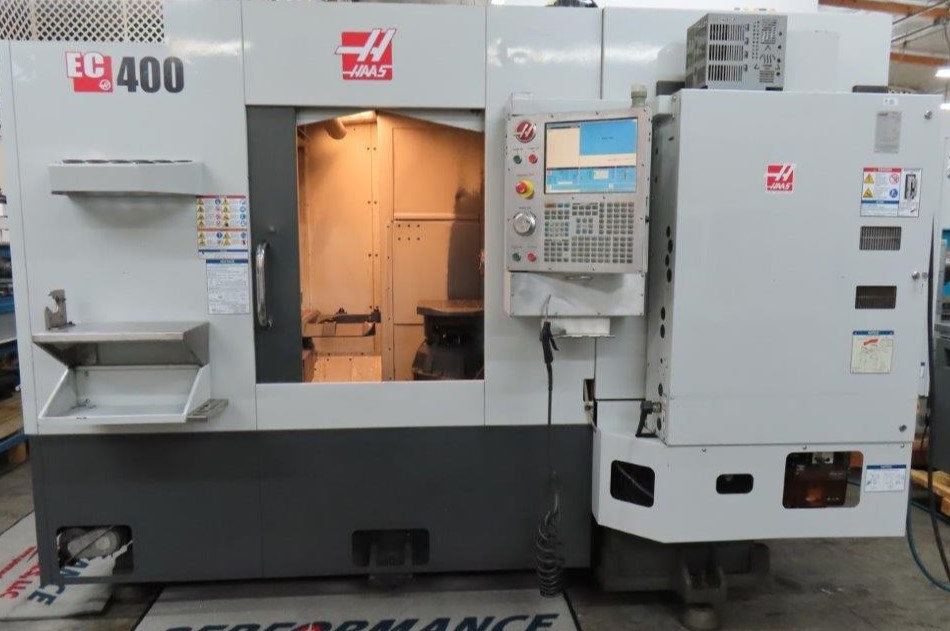

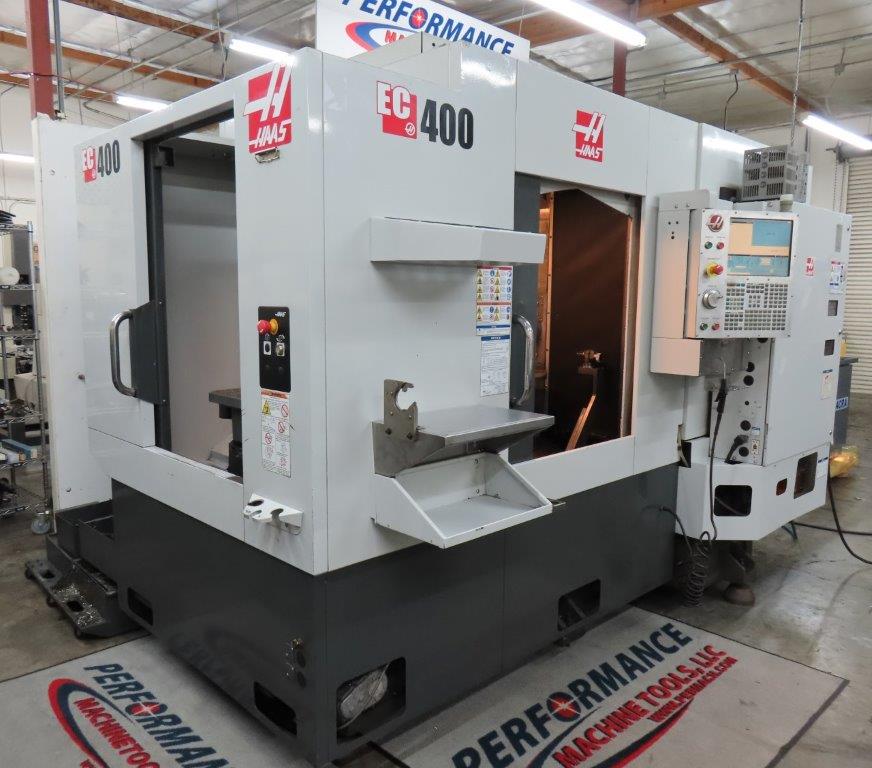

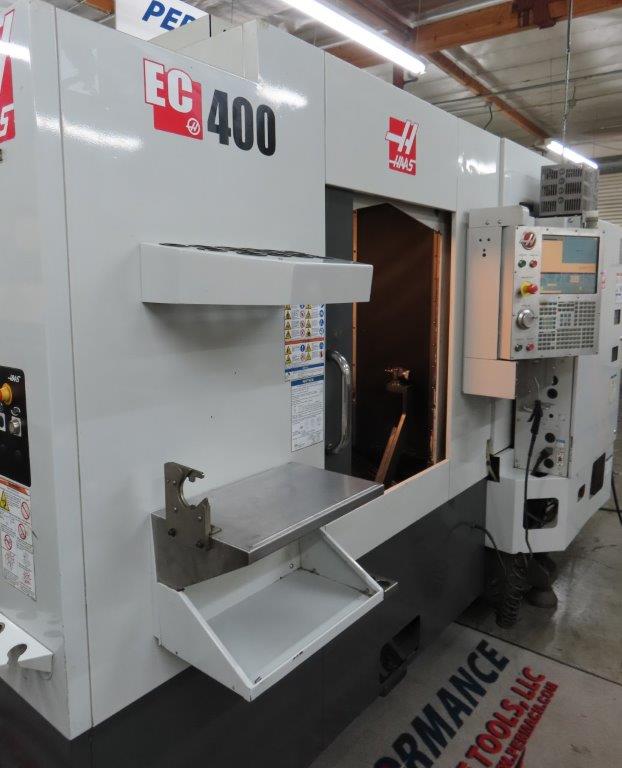

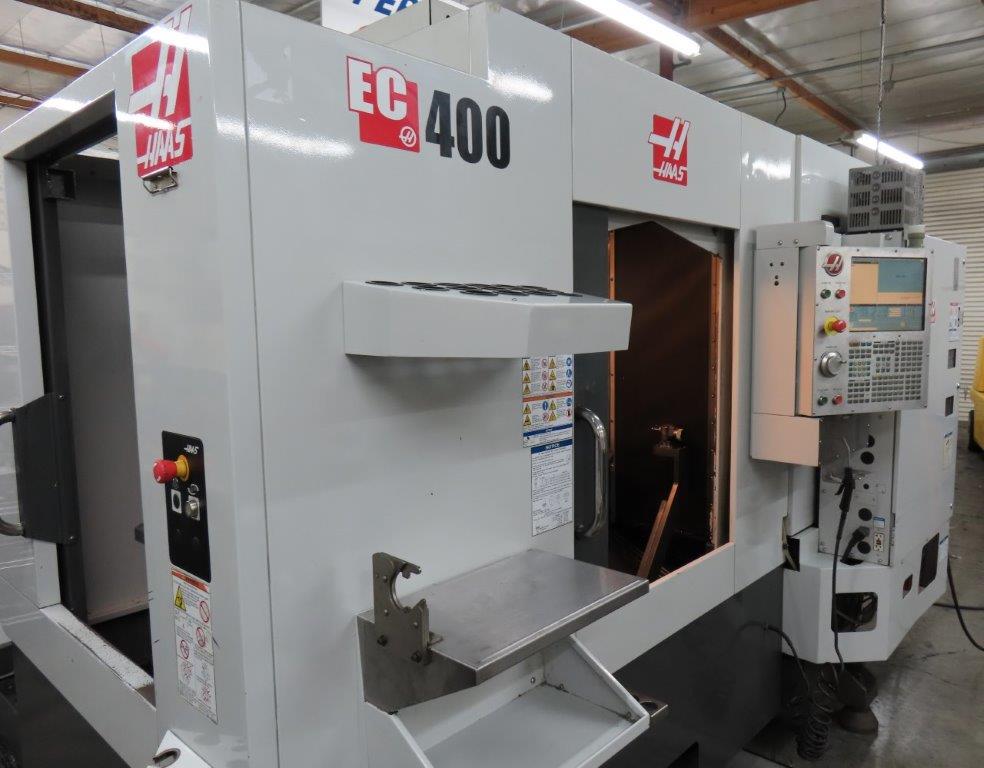

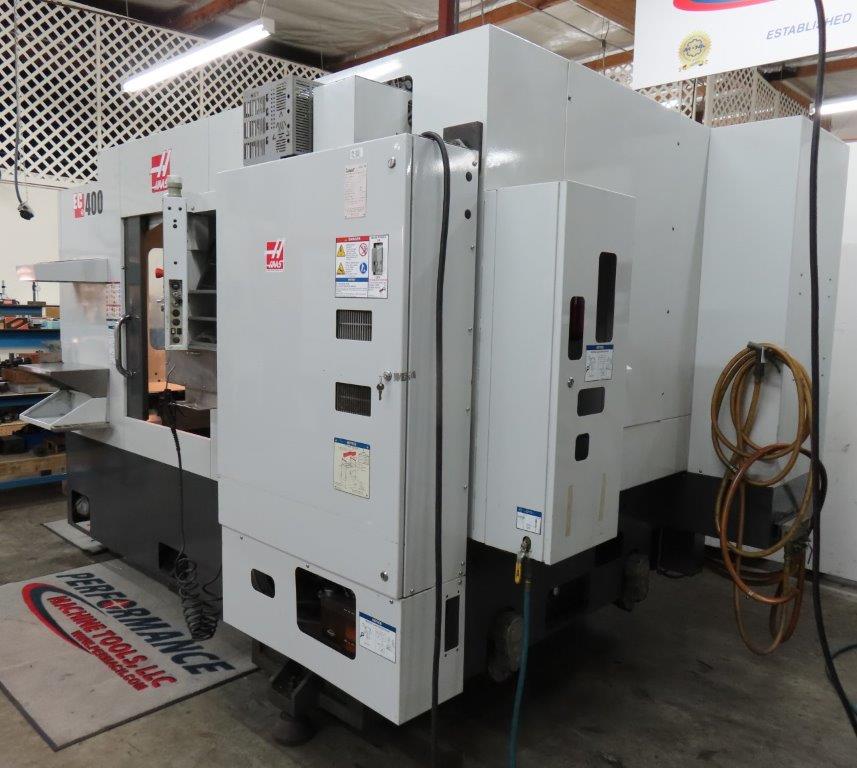

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|

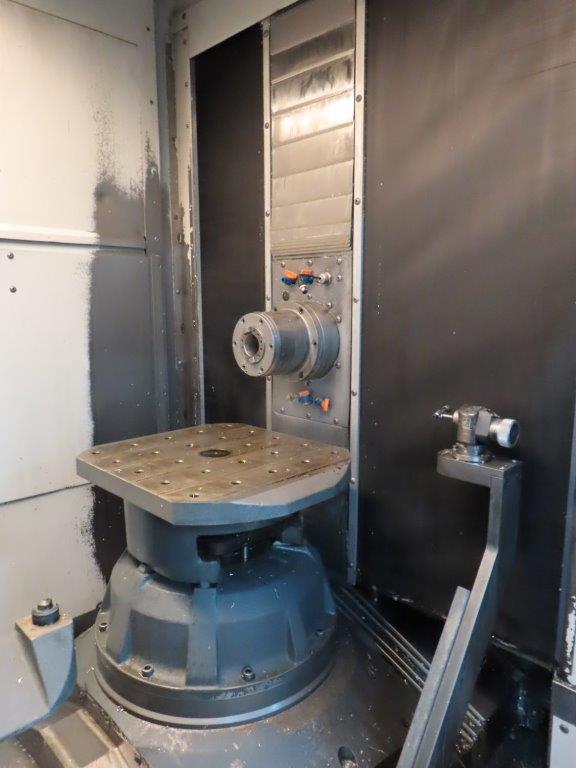

| PALLET SIZE | 15.75" x 15.75" |
| PALLET INDEXING | 1 DEGREE |
| NUMBER OF PALLETS | 2 |
| X, Y, Z AXIS TRAVELS | 20" x 20" x 20" |
| Max Pallet Load | 880 LBS |
| Pallet Change Time | 15 SECONDS |
| SPINDLE SPEED | 12,000 RPM / Direct Drive |
| SPINDLE TAPER | CAT- 40 |
| MAIN MOTOR | 30 HP |
| RAPID TRAVERSE RATE | 1000 IPM |
| FEED RATES | 500 IPM |
| Spindle Nose to pallet center | 3.9" - 23.9" |
| Table Top to Spindle Center |
2.1" - 22.1" |

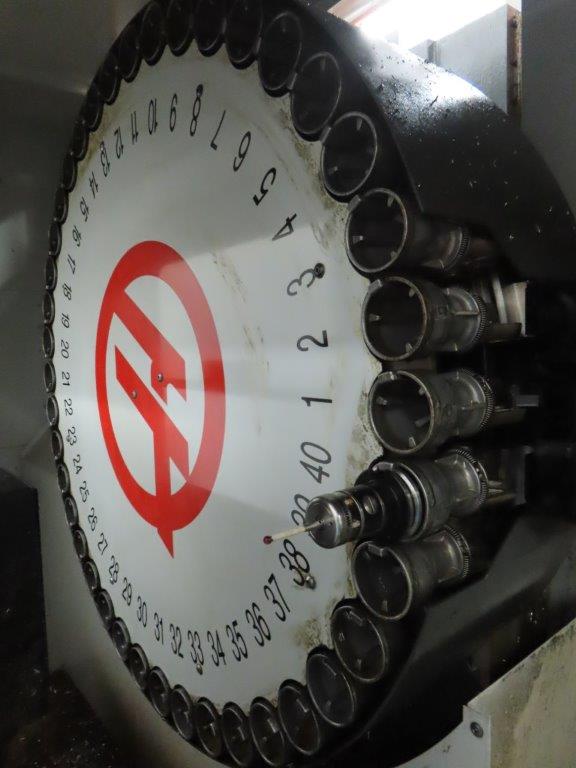

| TOOL STORAGE | 40 |
| TOOL CHANGE TIME | 2.8 SEC T-T |
| MAXIMUM TOOL DIAMETER | 2.5" |
| Max Tool Diameter adjacent pocket empty: | 5" |
| Max Tool Length | 12" |
| Max Tool Weight | 12 LB |
| TOTAL FLOOR SPACE REQ | 121" x 160" |
| MACHINE WEIGHT | 20,000 LBS |
| POWER | 220V / 3 PHASE / 50KVA |
EQUIPPED WITH:
