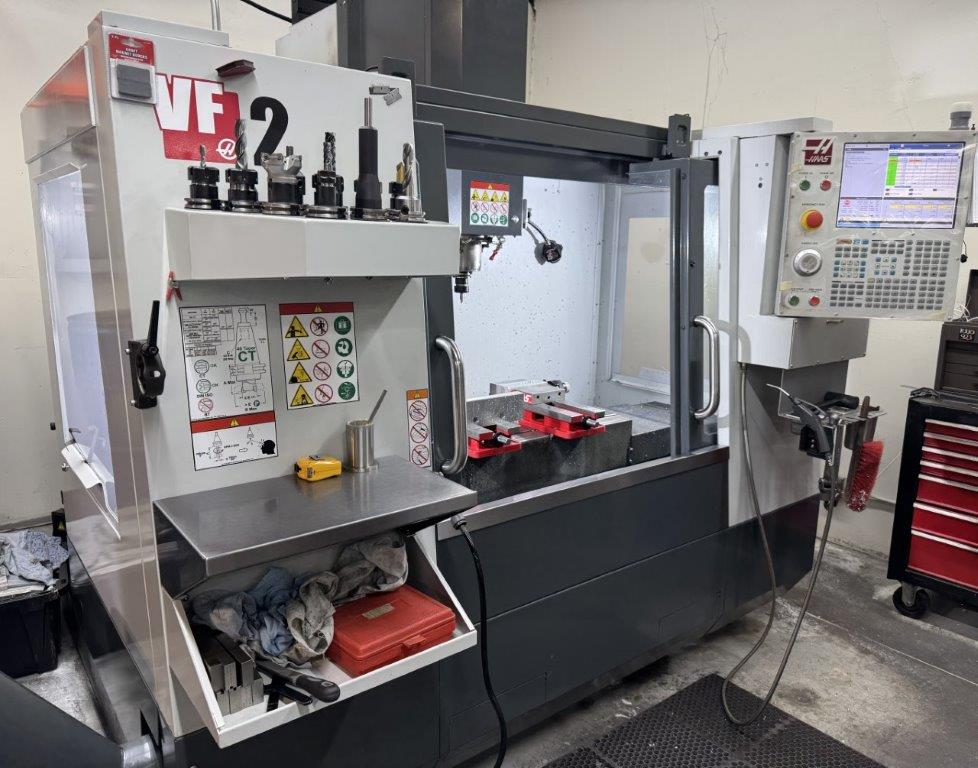

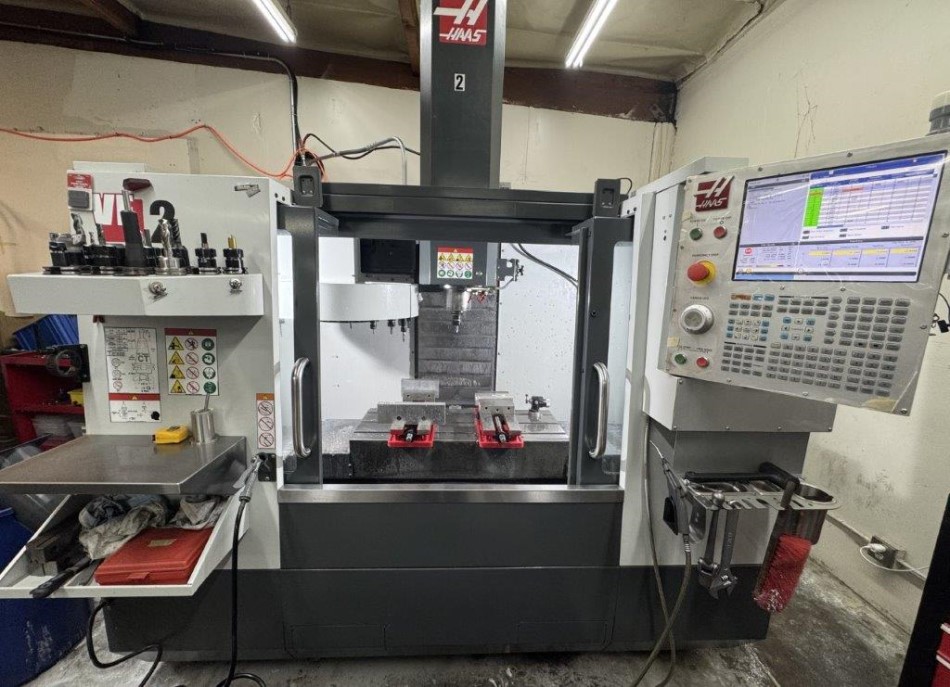

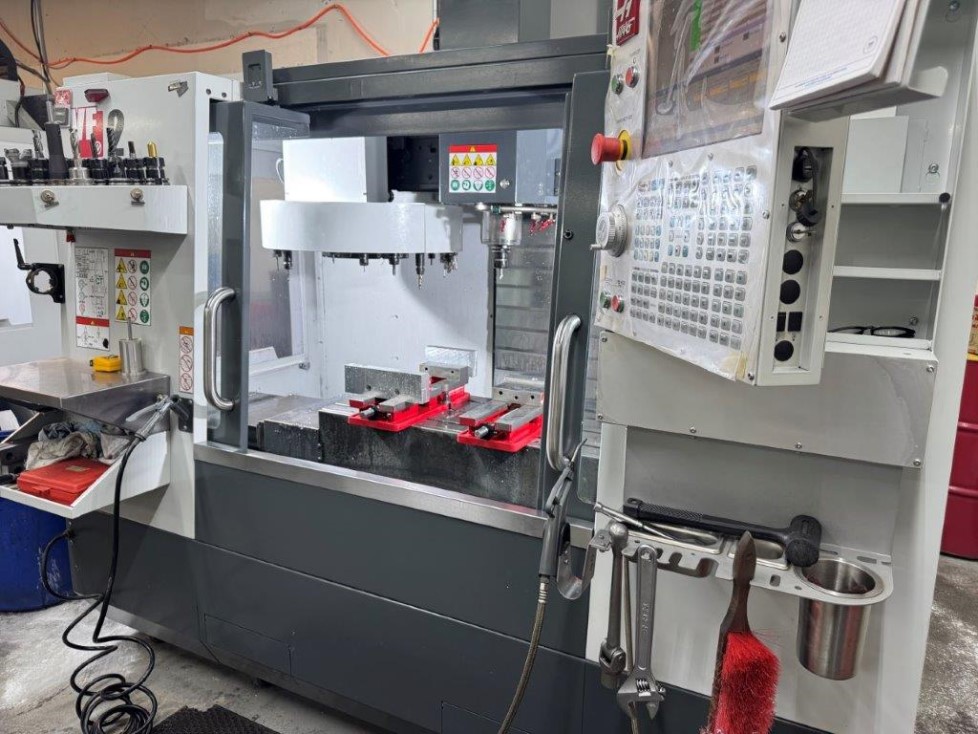

HAAS VF-2 CNC VERTICAL MACHINING CENTER - YEAR: 8-2021
Stock Number: 612
Mfg: HAAS
Click to view larger photo
| SPECIFICATIONS: |
| TABLE SIZE |
36 in. x 14 in. |
| MAXIMUM TABLE LOAD |
3000 LBS. |
| SPINDLE NOSE TO TABLE TOP |
4 in. - 24 in. |
| X-AXIS TRAVEL |
30 in. |
| Y-AXIS TRAVEL |
16 in. |
| Z-AXIS TRAVEL |
20 in. |
| RAPID TRAVERSE RATE - ALL AXES |
1000 IPM |
| CUTTING FEED RATE |
0.1 - 500 IPM |
| SPINDLE SPEEDS |
8,100 RPM |
| SPINDLE TAPER |
CAT-40 |
| SPINDLE MOTOR |
30 HP (MAX RATING) |
| TOOL CHANGER CAPACITY |
20 |
| MAXIMUM TOOL WEIGHT |
12 LBS. |
| WEIGHT |
7800 LBS |
EQUIPPED WITH:
- RIGID TAPPING (SYNCHRONOUS TAPPING WITH BUILT IN TAP CYCLES)
- PROGRAMMABLE COOLANT NOZZLE

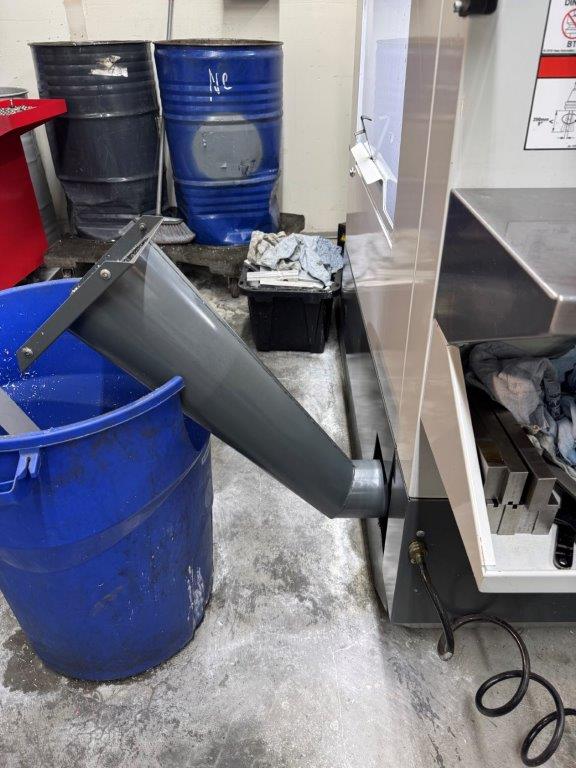

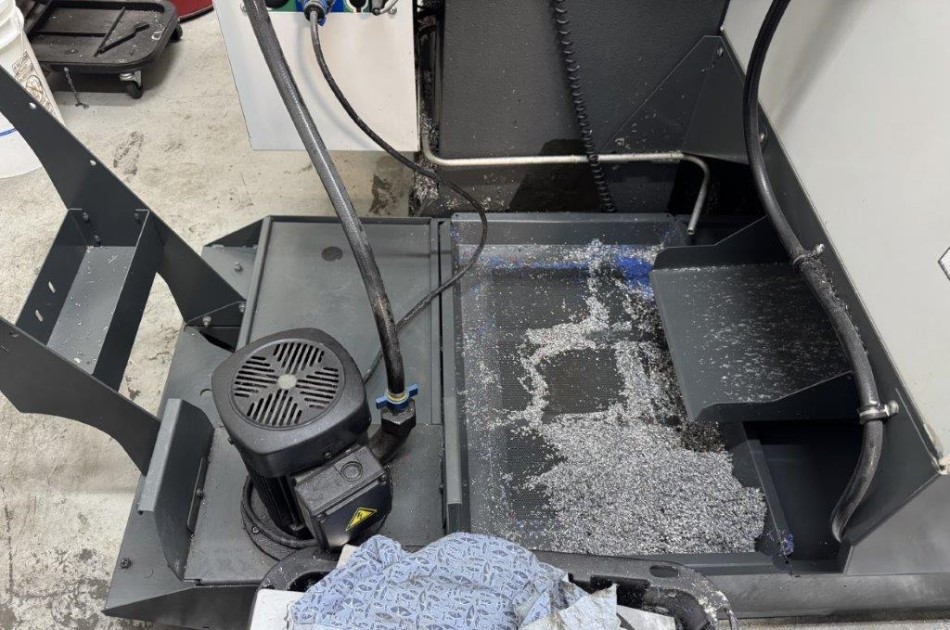

- CHIP AUGER
- WIPS, WIRELESS INTUITIVE PROBE PACKAGE, RENISHAW
- VISUAL PART PROGRAMMING SYSTEM
- SPINDLE ORIENTATION
- USER DEFINABLE MACROS
- COORDINATE ROTATION AND SCALING
- HIGH SPEED MACHINING
- REMOTE JOG HANDLE
- TOOL STORAGE RACK
- 55 GALLON COOLANT TANK

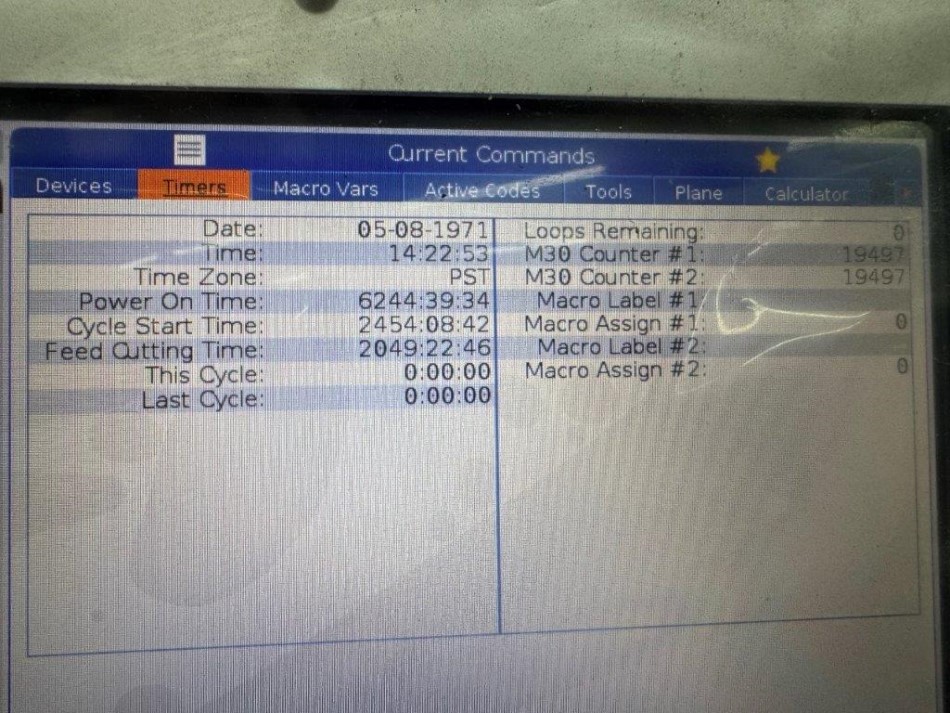

- Hours: Power On: 6244 / Cycle Start: 2454 / Feed Cutting: 2049
|
