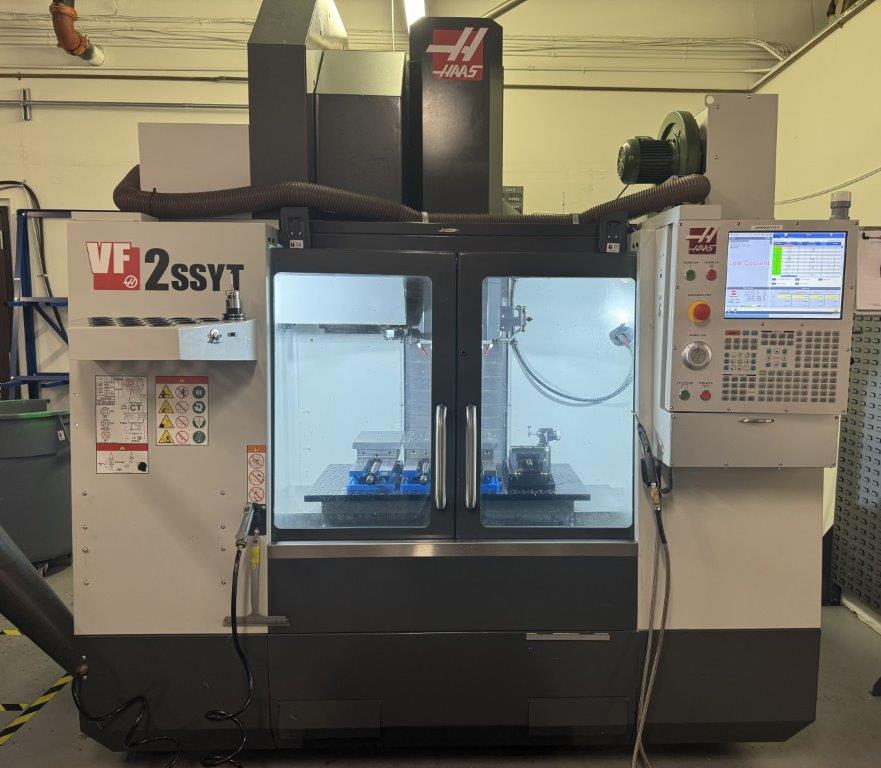

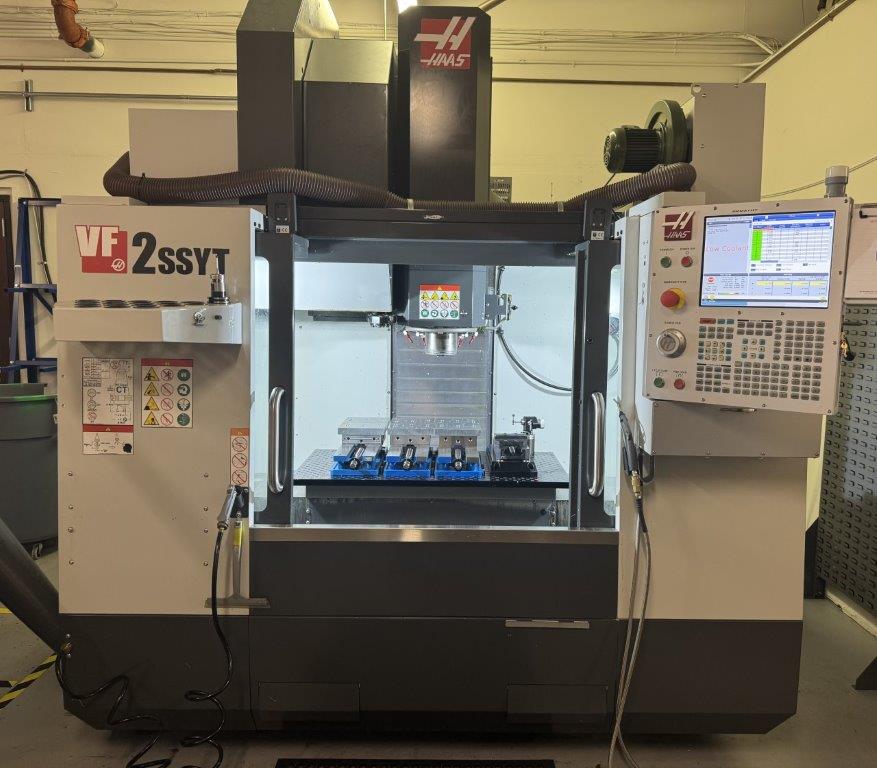

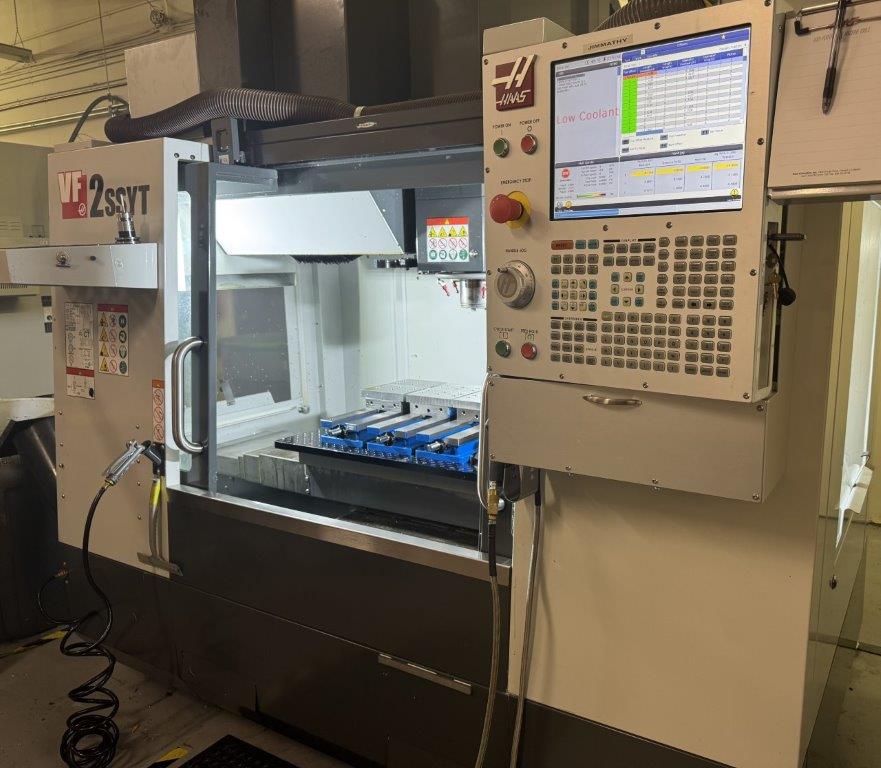

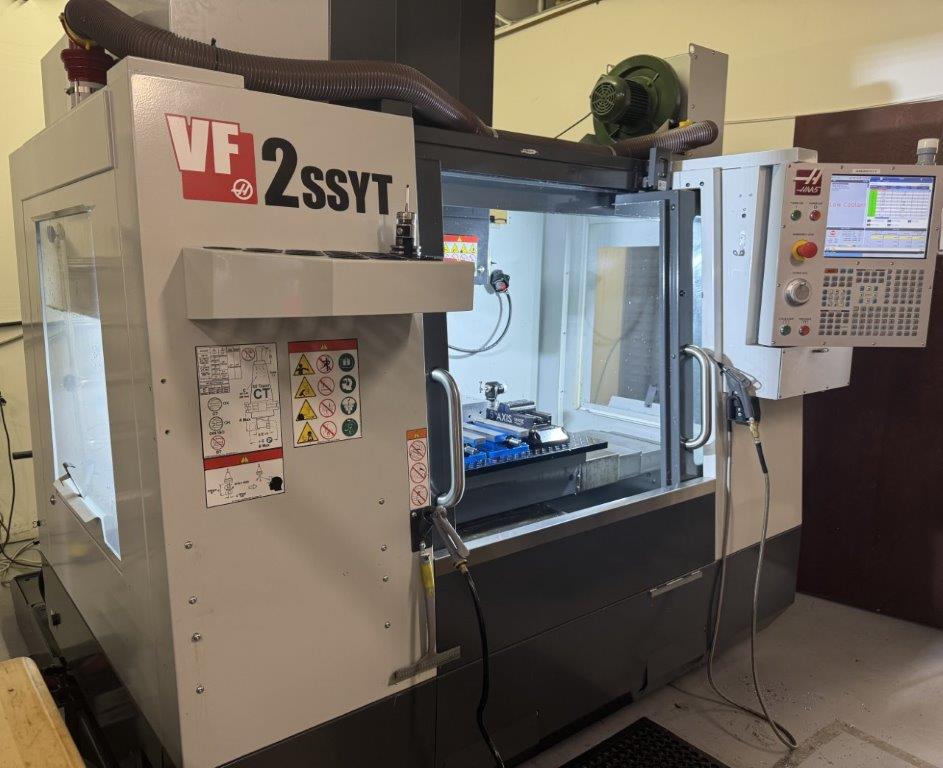

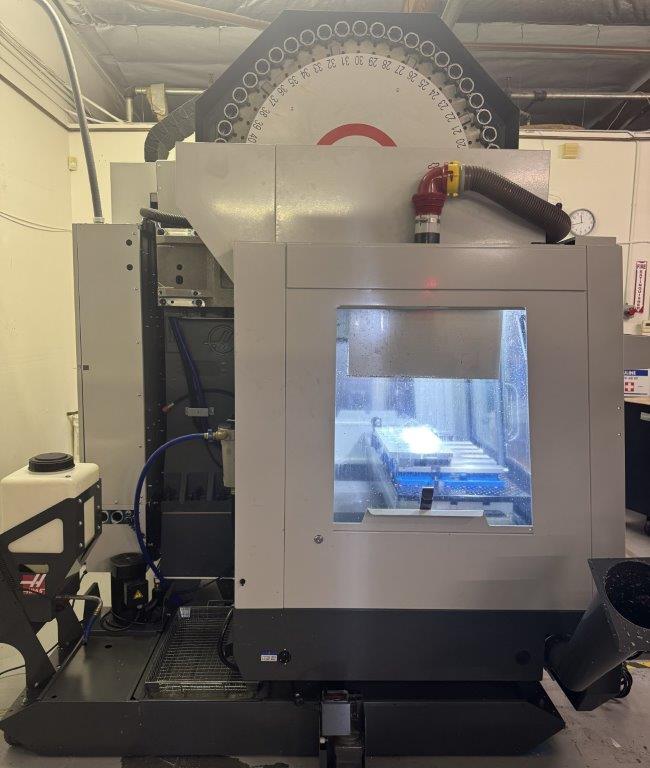

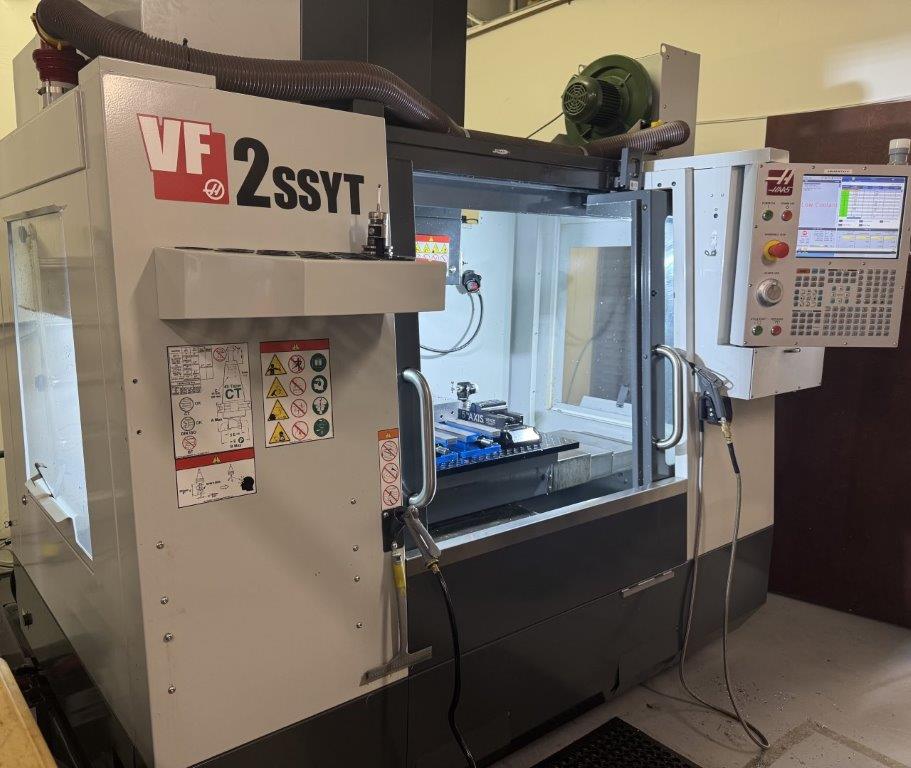

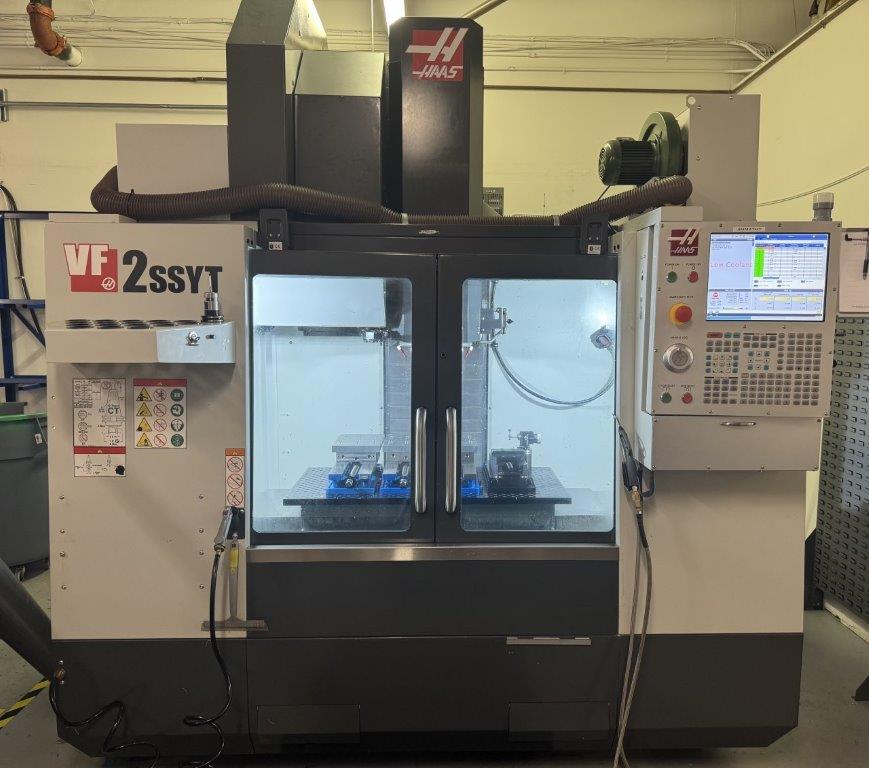

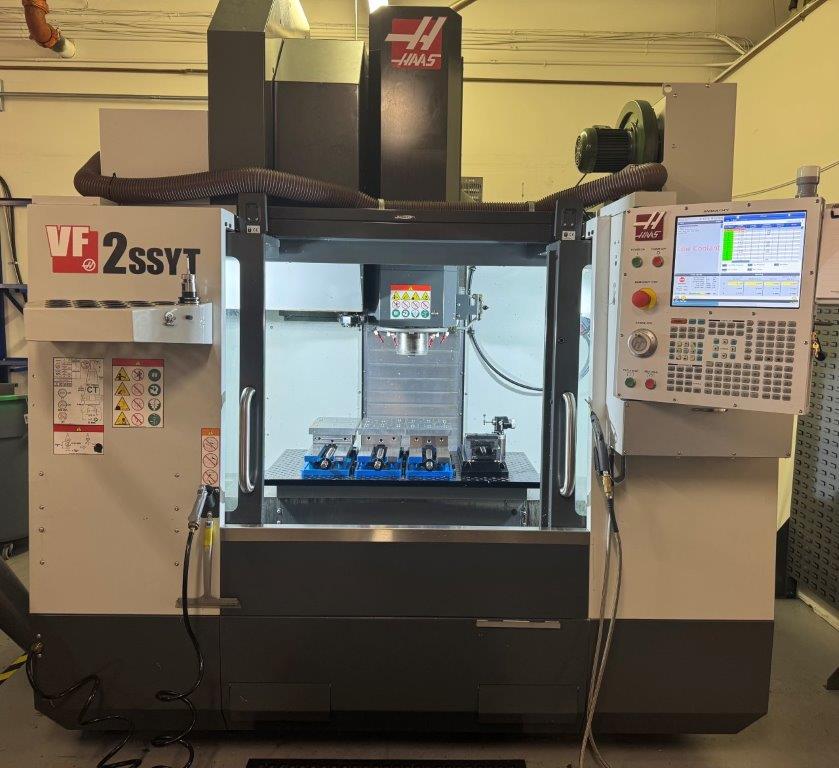

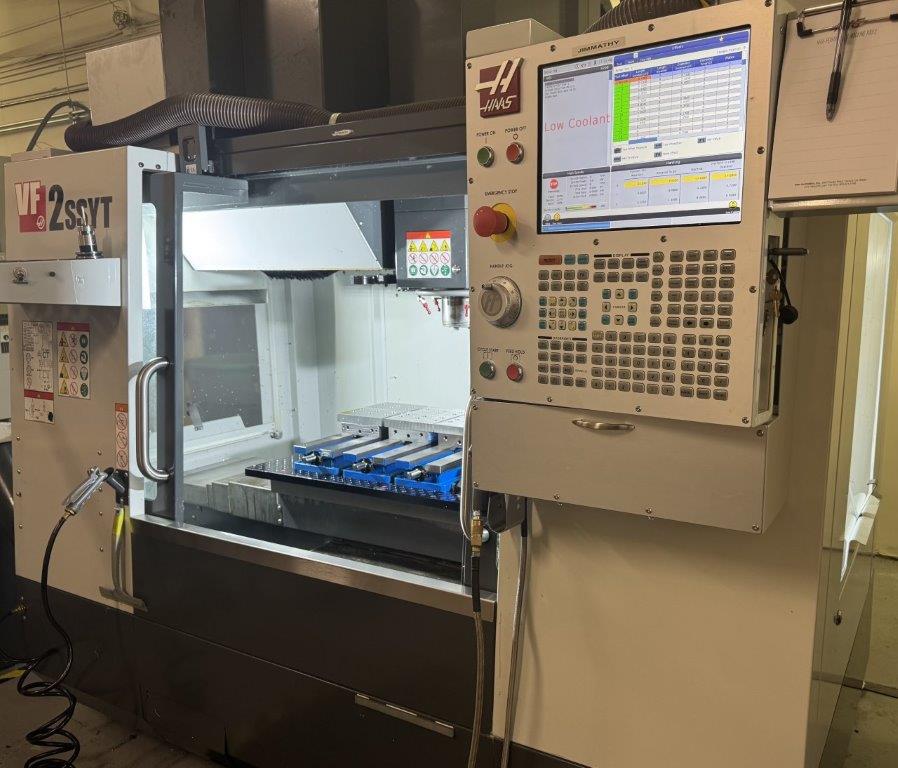

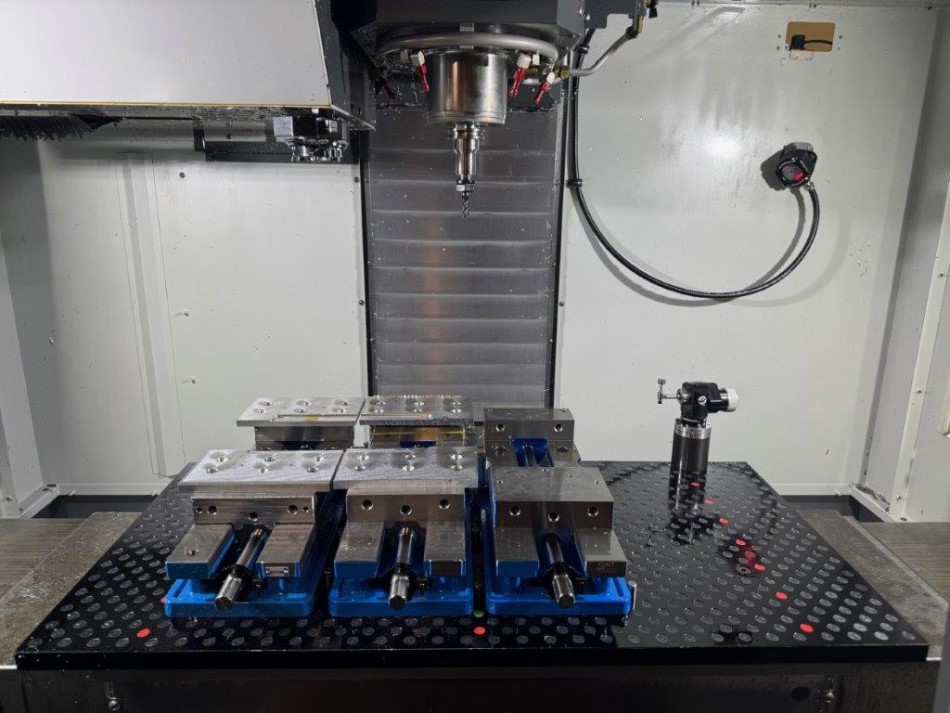

HAAS VF-2SSYT VERTICAL MACHINING CENTER - Year: 2023
Stock Number: 616
Mfg: HAAS
Click to view larger photo
| SPECIFICATIONS: |
| TRAVELS X, Y, Z |
30 in. x 20 in. x 20 in. |

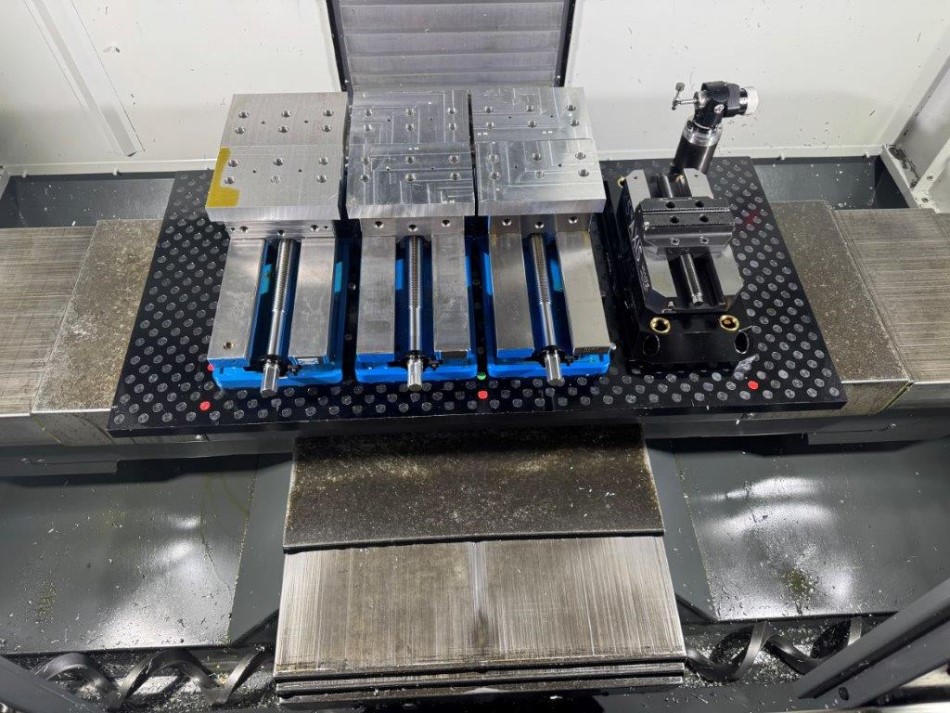

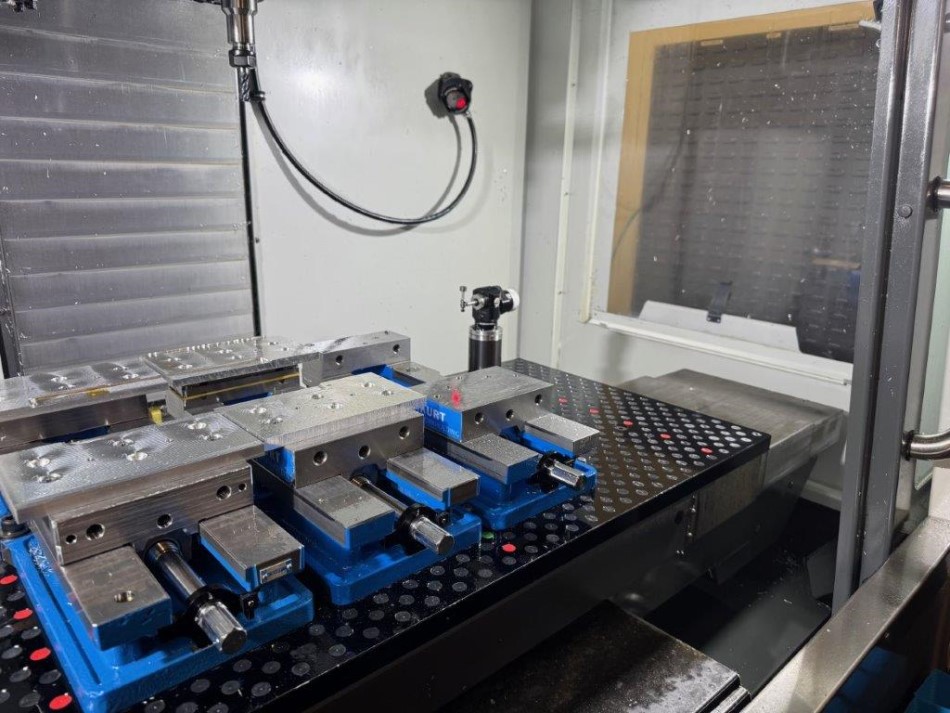

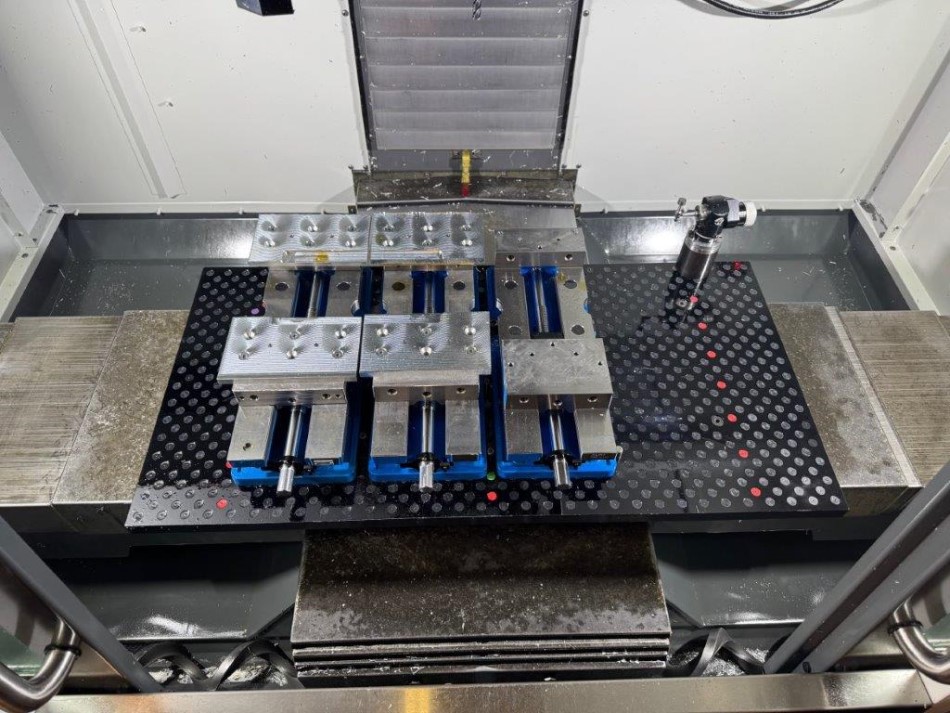

| TABLE WORKING SURFACE |
36 in. x 18 in. |
| TABLE LOAD CAPACITY |
1,500 LBS. |
| FEED RATES, ALL AXES |
833 IPM |
| RAPID TRAVERSE RATE, ALL AXES |
1400 IPM |
| SPINDLE NOSE TO TABLE |
4 in. - 24 in. |
| TOOL CHANGER ARM STYLE |
50 STATION |
| SPINDLE HORSE POWER |
30 HP |
| SPINDLE SPEEDS RANGE |
12,000 RPM / INLINE DIRECT DRIVE |
| SPINDLE TAPER |
#CAT-40 |
| OVERALL DIMENSIONS |
88 in. x 92 in. x 104 in. H |
| APPROXIMATE WEIGHT-NET |
8,100 LBS |

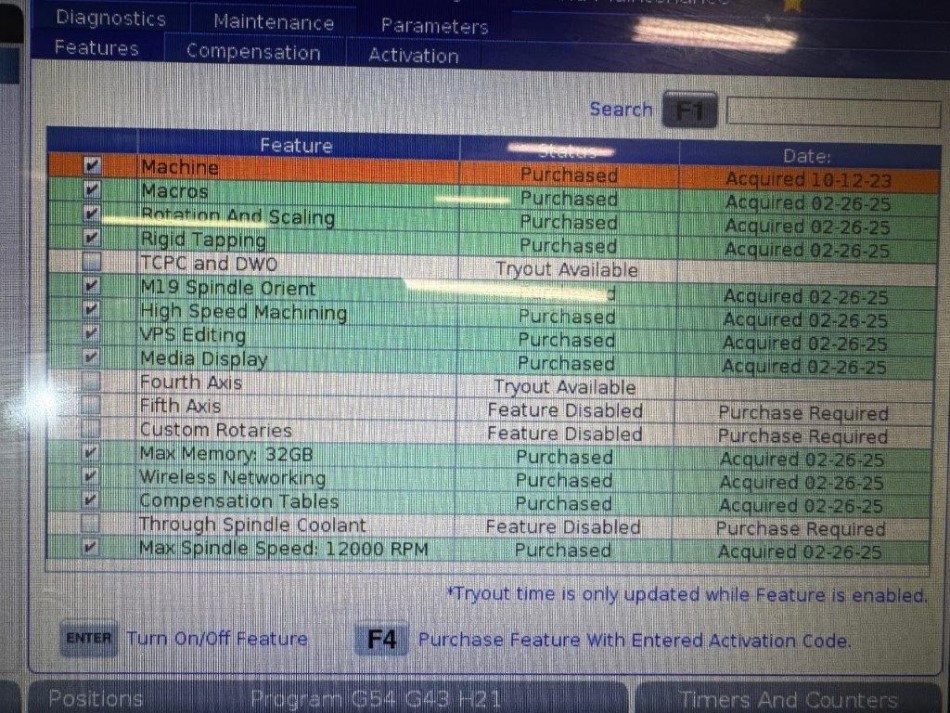

EQUIPPED WITH:

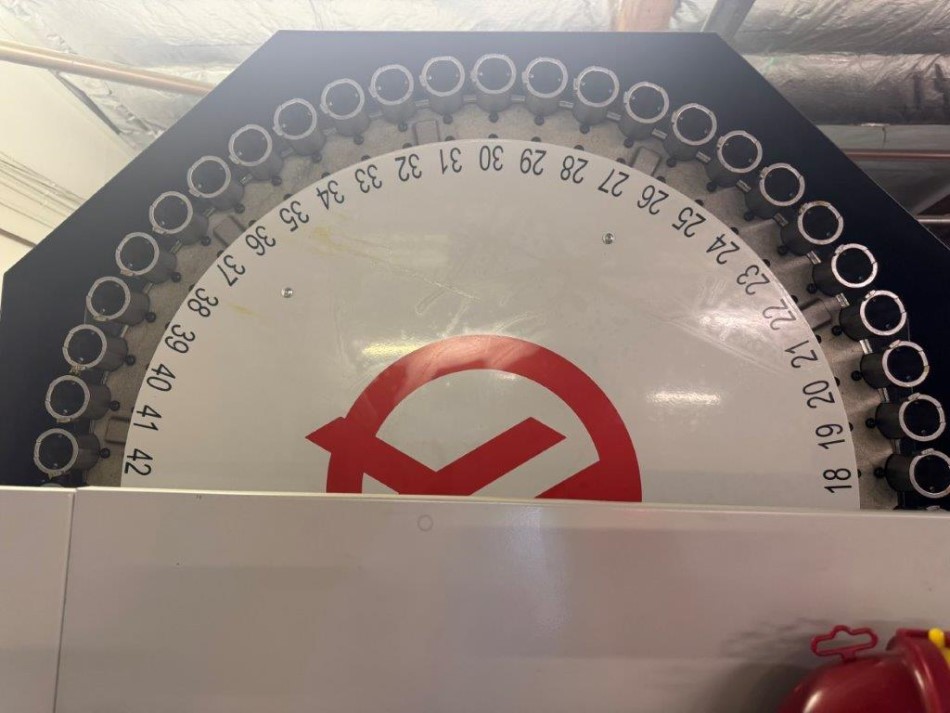

- 50 STATION TOOL CHANGER

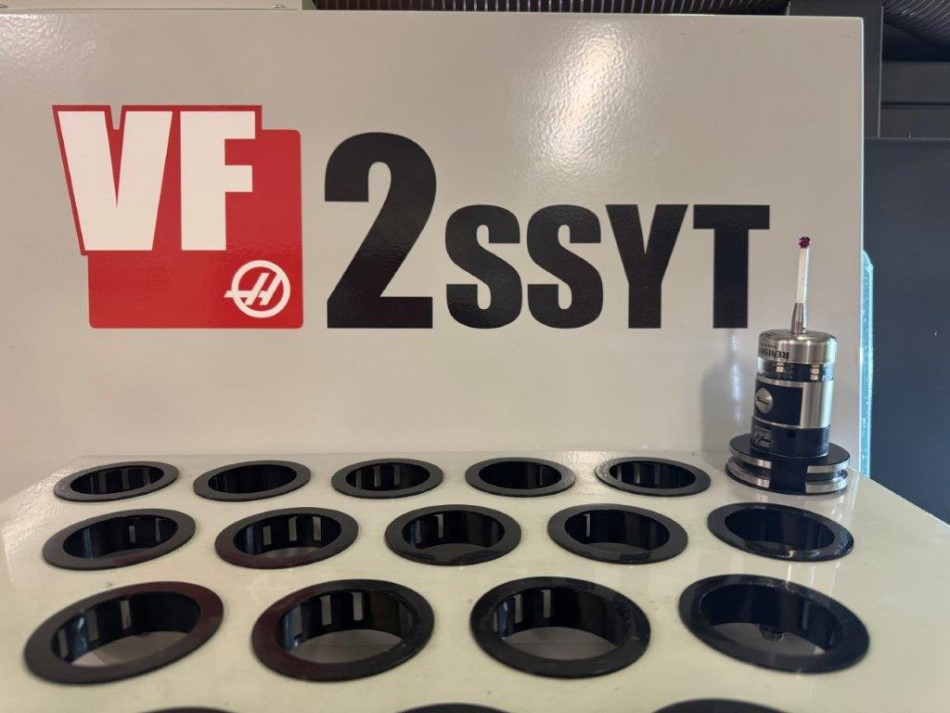

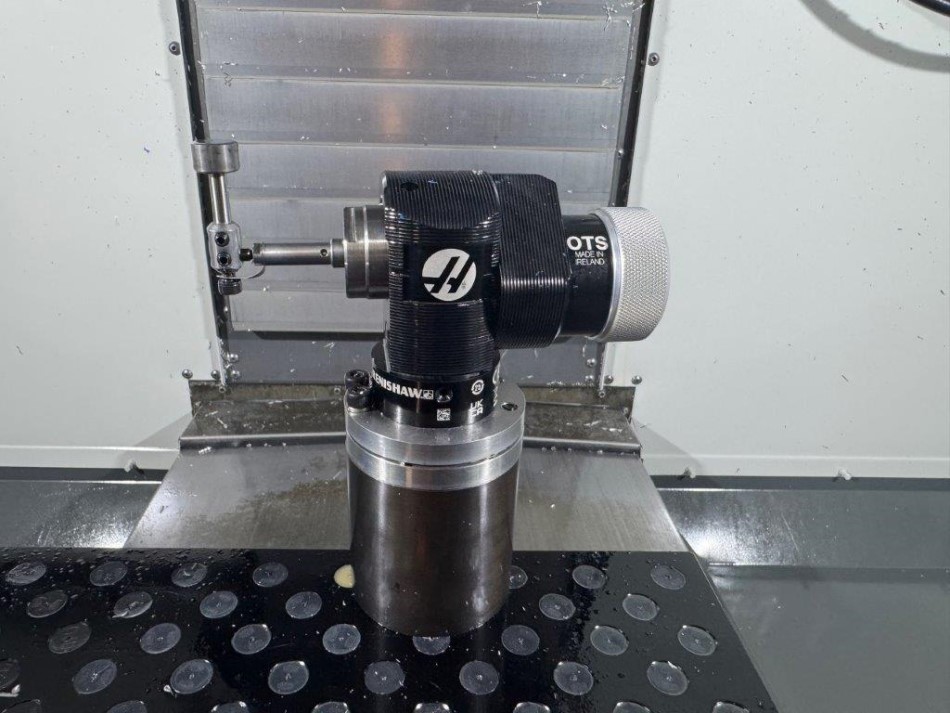

- WIPS ~ WIRELESS INTUITIVE PROBE SYSTEM
- SPINDLE ORIENTATION M19
- USER DEFINABLE MACROS
- VISUAL PART PROGRAM SYSTEM
- COORDINATE ROTATION and SCALING
- PROBE RISER BLOCK
- HIGH SPEED MACHINING
- RIGID TAPPING

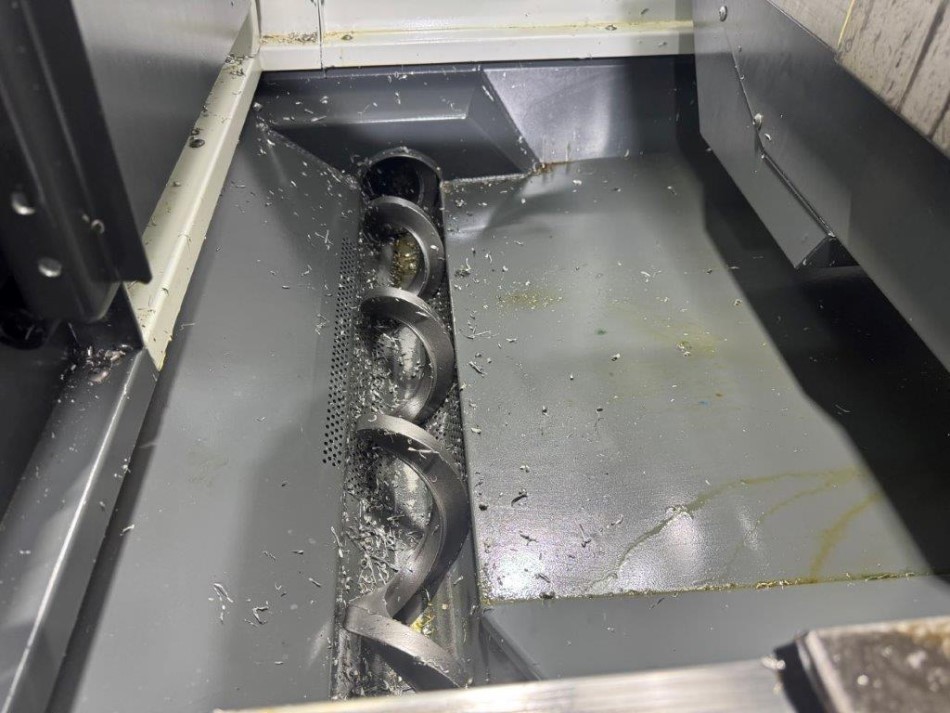

- CHIP AUGER
- PROGRAMMABLE COOLANT NOZZLE
- REMOTE JOG HANDLE
- COMPENSATION TABLES

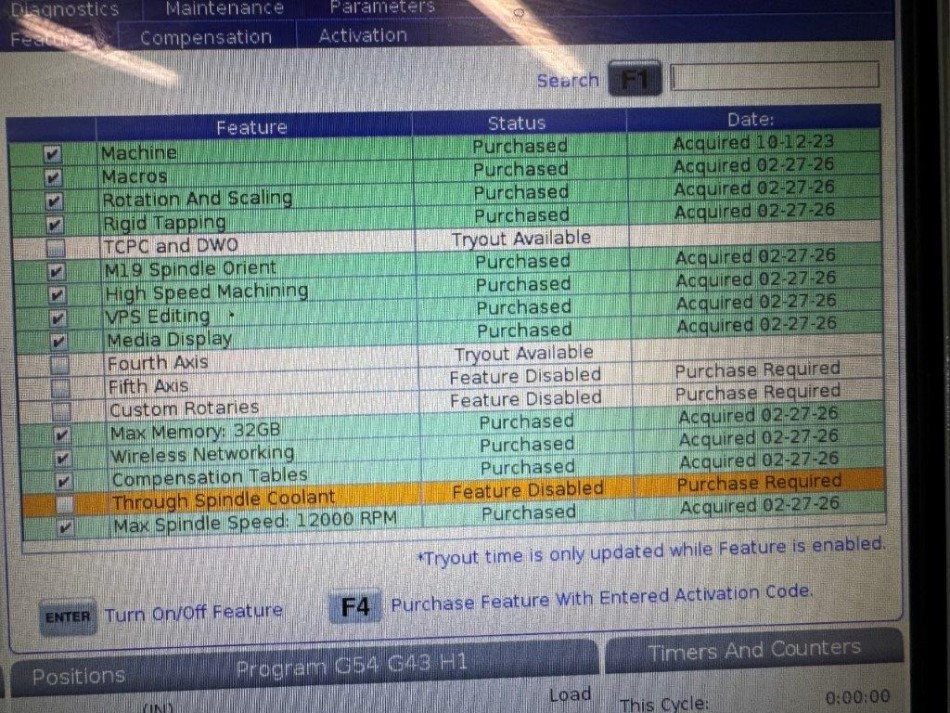

- 32 GB MEMORY

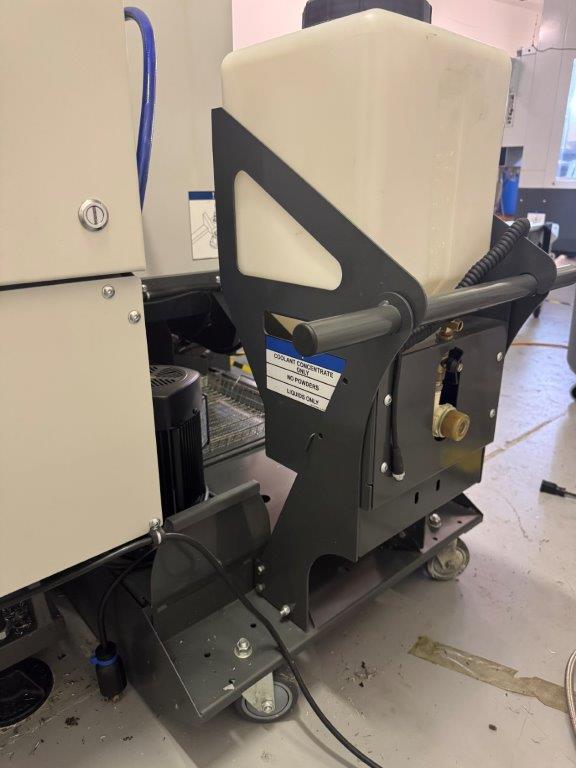

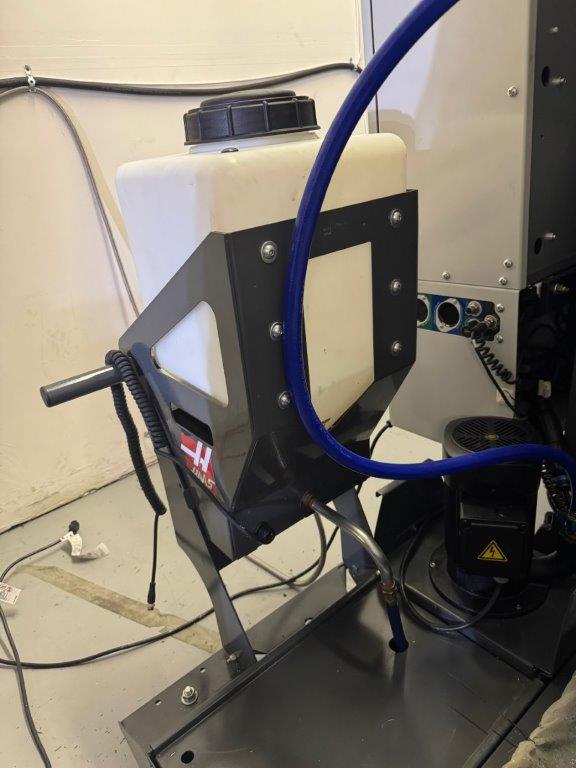

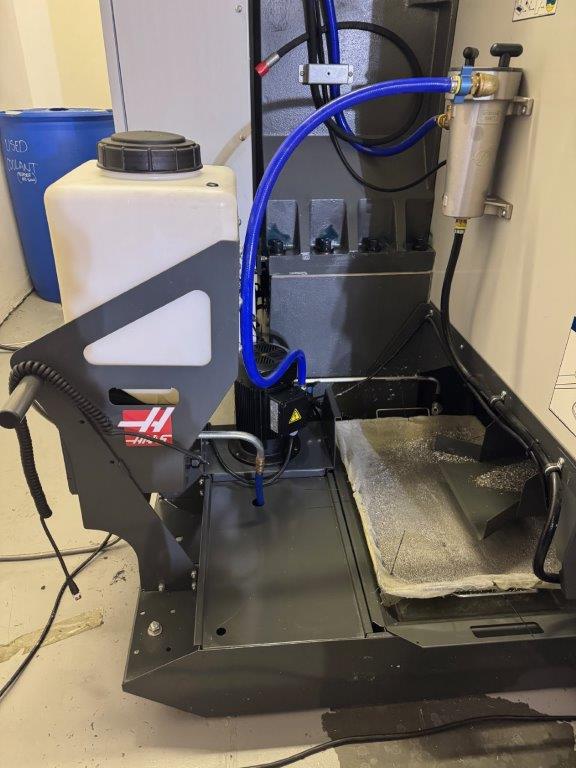

- COOLANT TANK with 55 GALLON CAPACITY

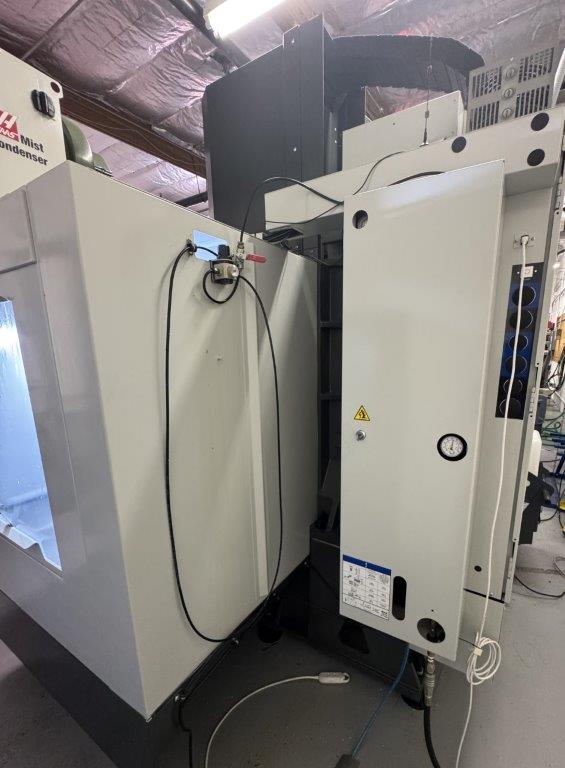

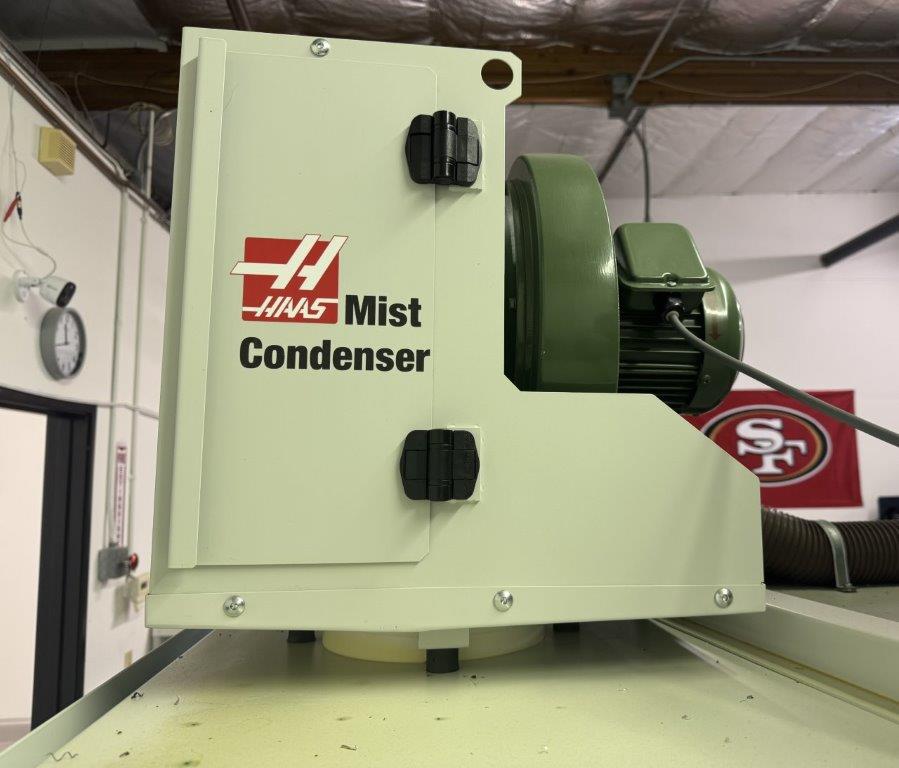

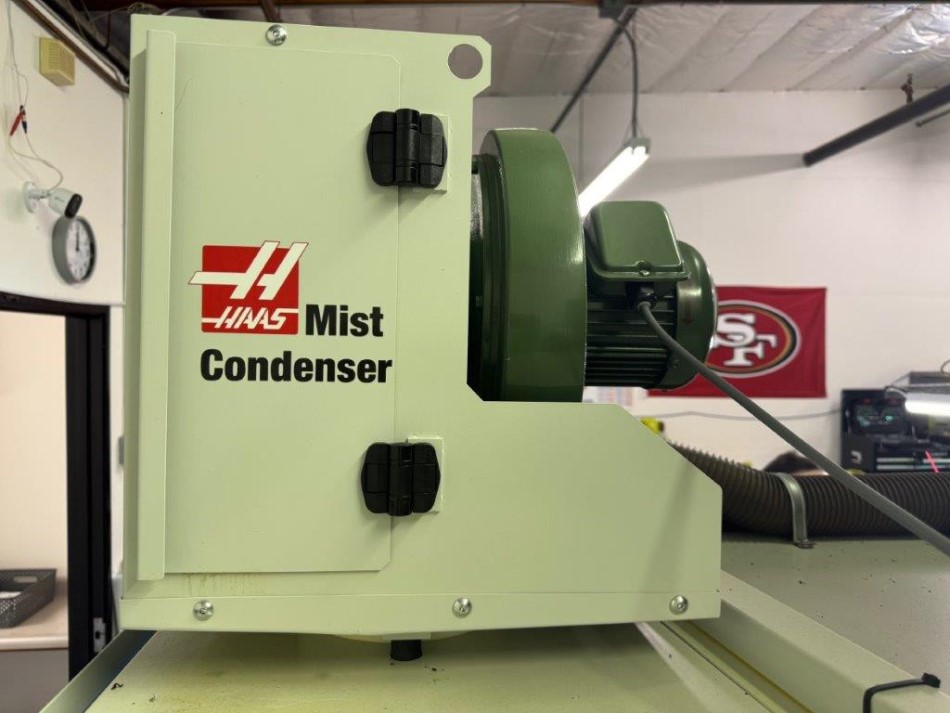

- MIST CONDENSOR
- WIRELESS NETWORKING and MEDIA DISPLAY

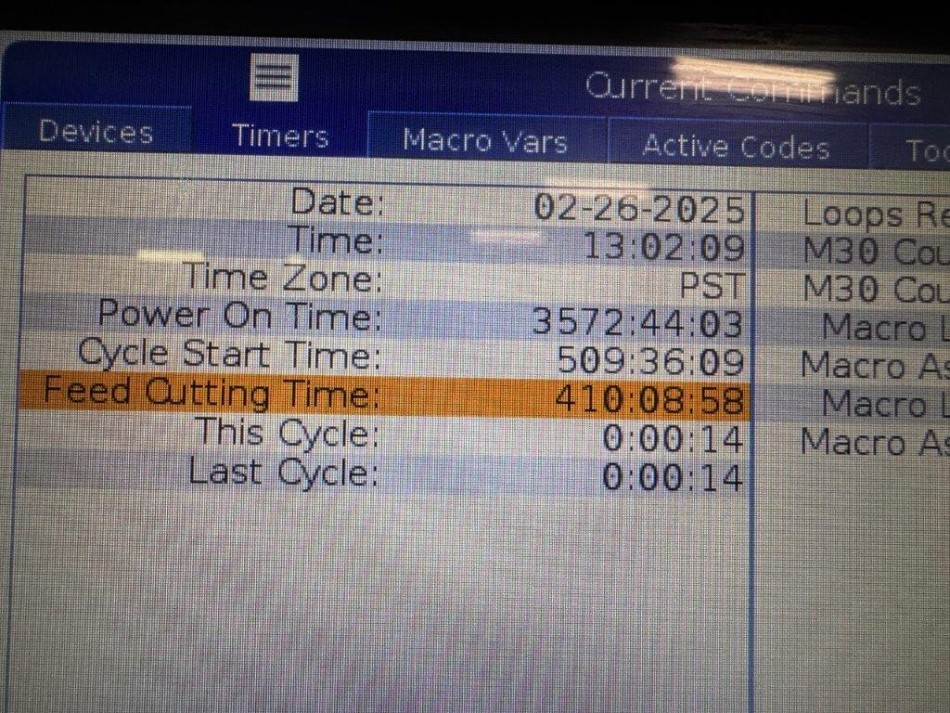

- HOURS: Power on 3572 / Cycle Start 509 / Feed Cut 410
|
