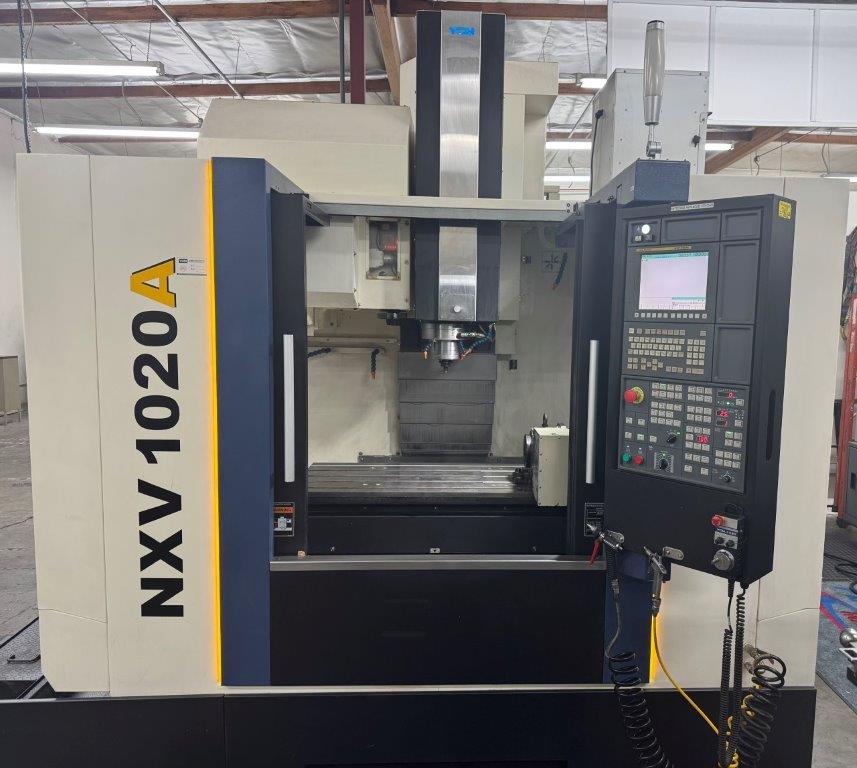

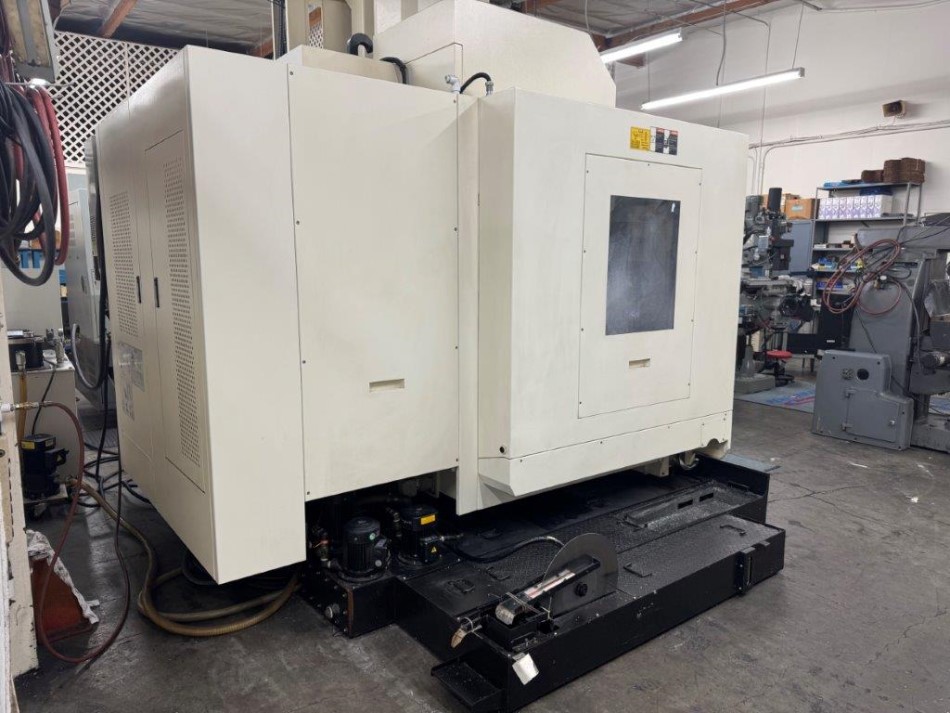

YCM NXV-1020A VERTICAL MACHINING CENTER. YEAR: 2014

YCM NXV-1020A VERTICAL MACHINING CENTER. YEAR: 2014

Stock Number: 626

Mfg: YCM



Click to view larger photo

SPECIFICATIONS:
TABLE WORKING SURFACE 44" x 20.47"
TABLE LOAD CAPACITY 1,100 LBS.
LONGITUDINAL TRAVEL (X-AXIS) 40.16 in.
CROSS TRAVEL (Y-AXIS) 20.47 in.
VERTICAL TRAVEL (Z-AXIS) 21.26 in.
FEED RATES, ALL AXES 787 IPM
RAPID TRAVERSE RATE, ALL AXES 1890 IPM
SPINDLE NOSE TO TABLE TOP 5.5" – 26.77"
TOOL CHANGER ARM STYLE 24
TOOL CHANGE TIME 1.7 Sec T-T / 3.5 Sec C-C
SPINDLE HORSEPOWER 25 HP (Fanuc AT8/12000i AC Motor)
SPINDLE SPEEDS RANGE 12,000 RPM / BIG PLUS
SPINDLE DRIVE DIRECT DRIVE
SPINDLE TAPER CAT-40
WAY SYSTEM LINEAR GUIDEWAY
FLOOR SPACE DIMS 124" x 120" x 118"
APPROXIMATE WEIGHT 11,795 LBS.
POWER 208V / 3 PH / 31 KVA / 100 Amps
AIR REQUIREMENTS 16 CFM at 85 PSI

EQUIPPED WITH:

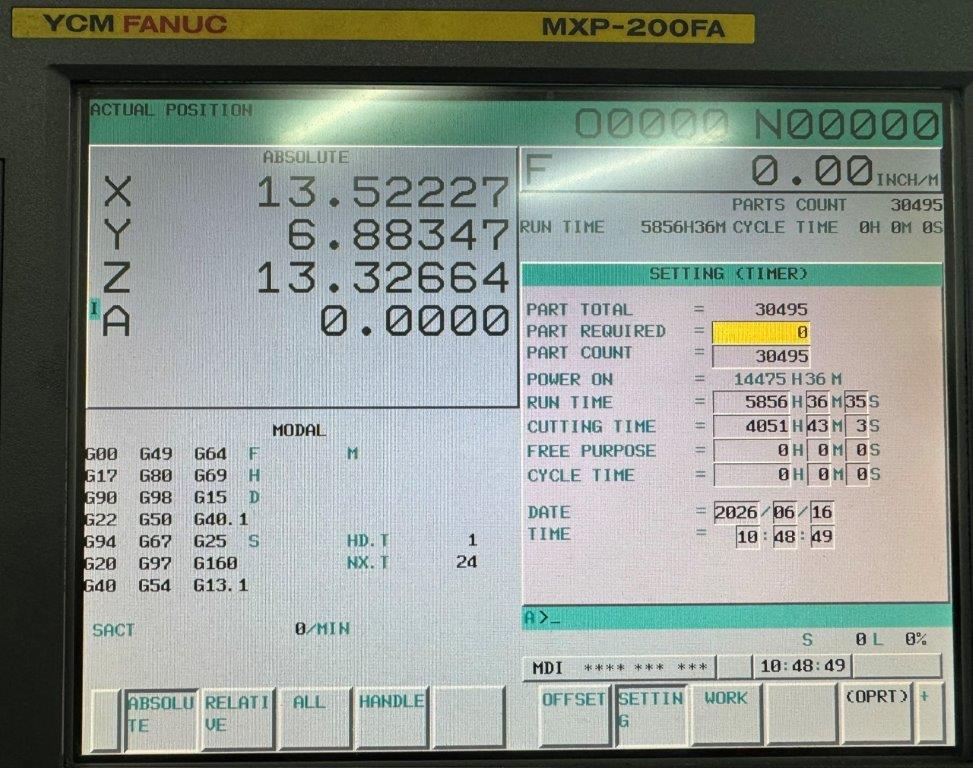

  • FANUC MXP-200FA CNC CONTROL: AICC II CONTOUR, 200 BLOCK LOOK AHEAD, 2MS
  • PROCESSING SPEED, CUSTOM MACRO B and SKIP, 10.4” COLOR LCD MONITOR, PCMCIA SLOT

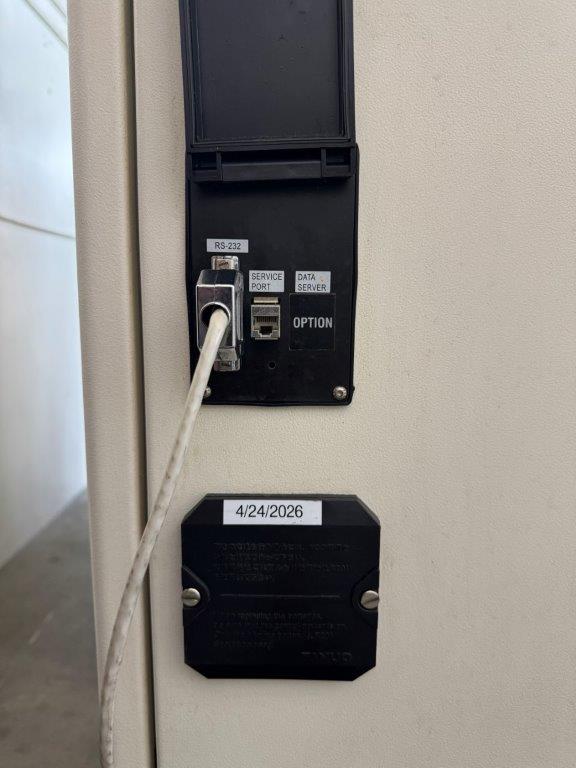

  • FOR FLASH MEMORY and MODEM CARD, 1280 METERS MEMORY, RS-232 and ETHERNET
  • RIGID TAPPING & HELICAL INTERPOLATION

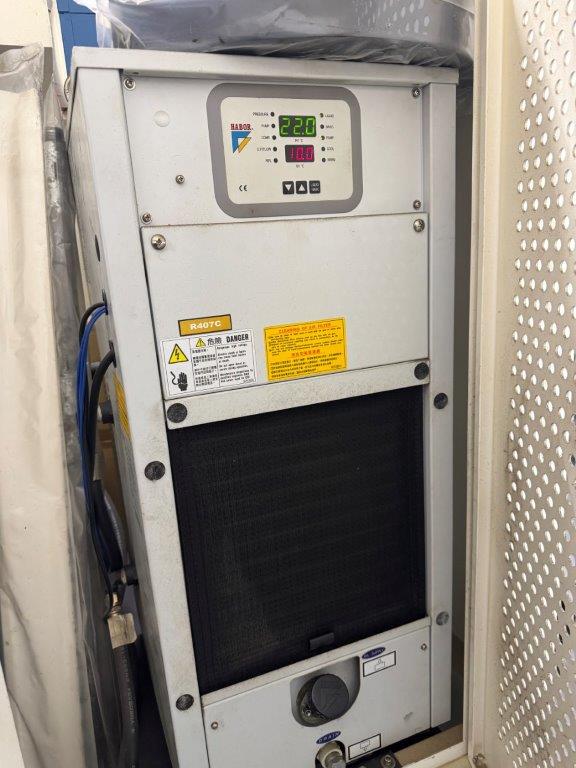

  • SPINDLE CHILLER
  • CHIP AUGER
  • RIGID TAPPING

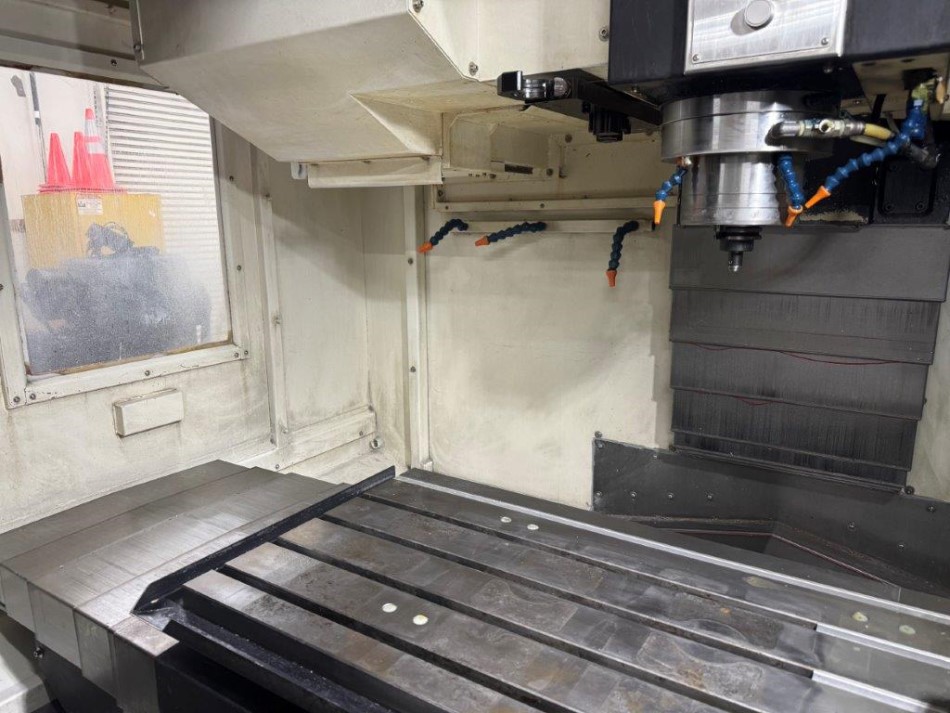

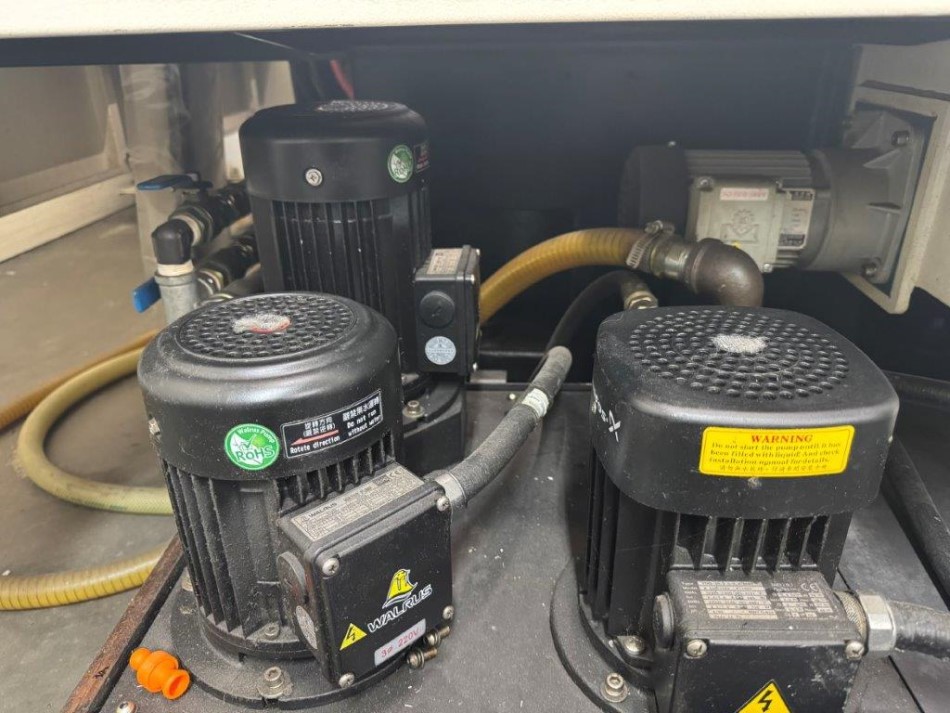

  • FLOOD COOLANT / COOLANT TANK WITH 80 GALLON CAP
  • OIL SKIMMER
  • WORK LIGHT

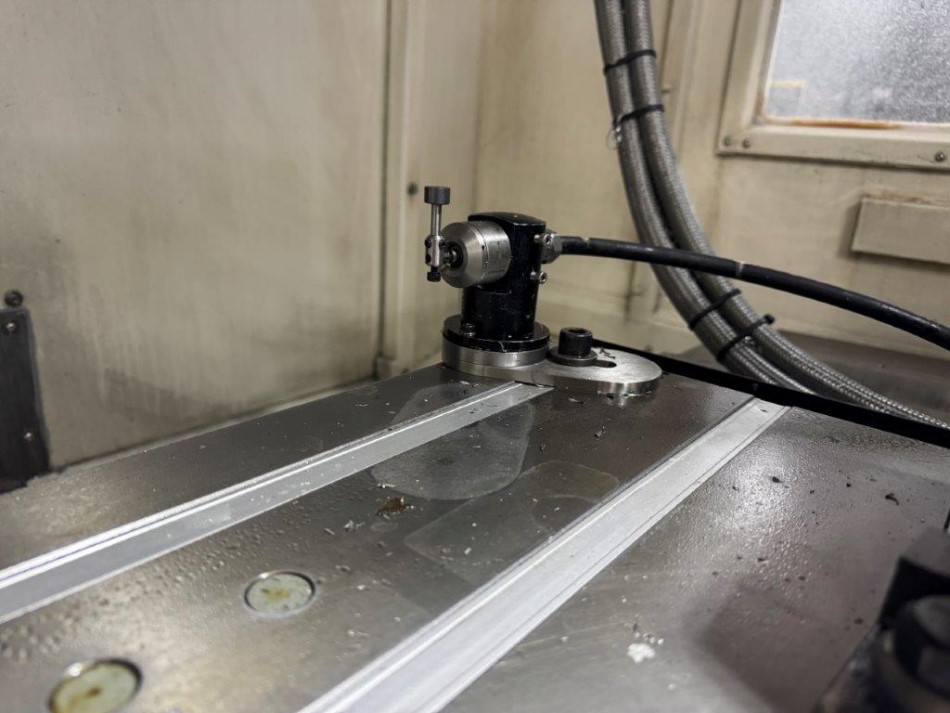

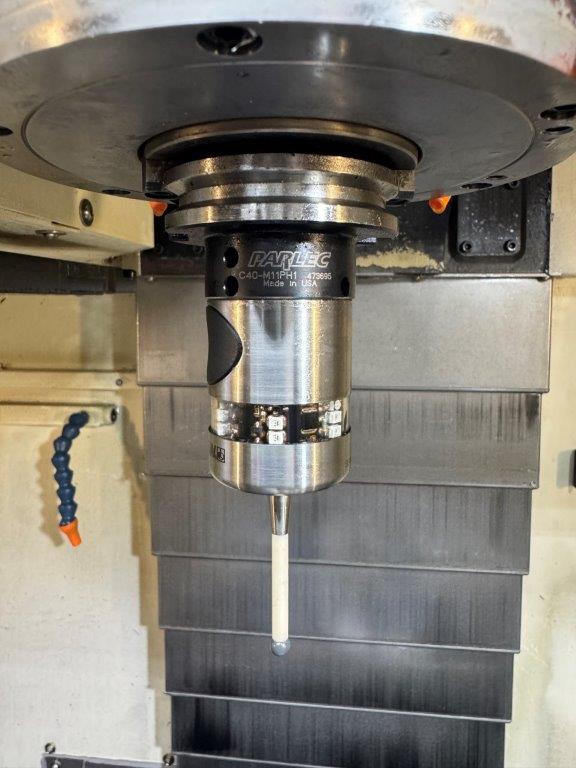

  • RENISHAW PART PROBE and TOOL PROBE

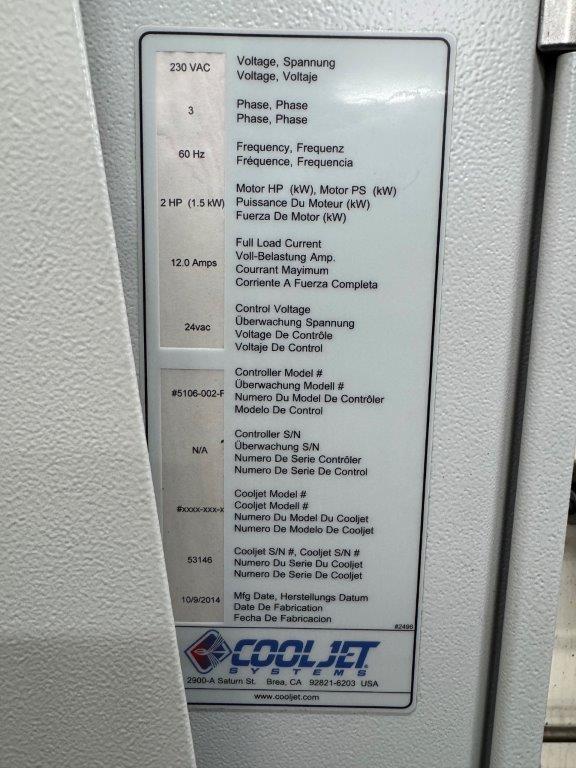

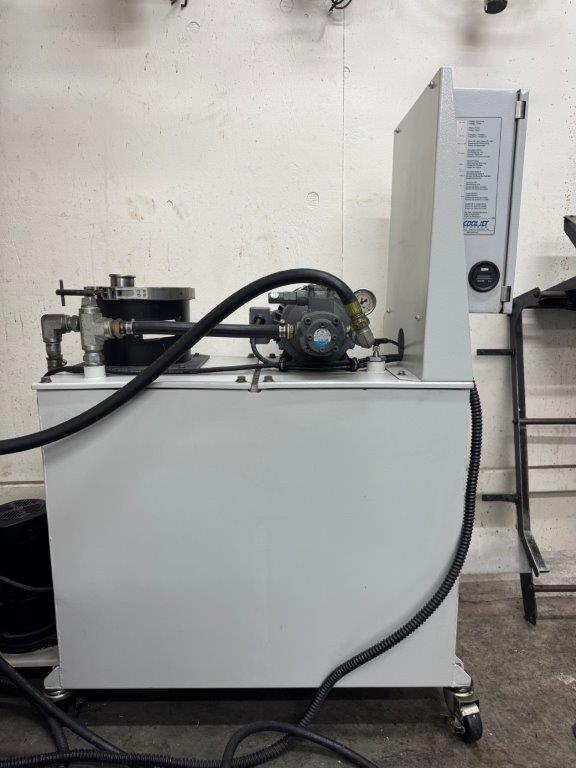

  • COOL JET COOLANT THRU SPINDLE SYSTEM at 330 PSI

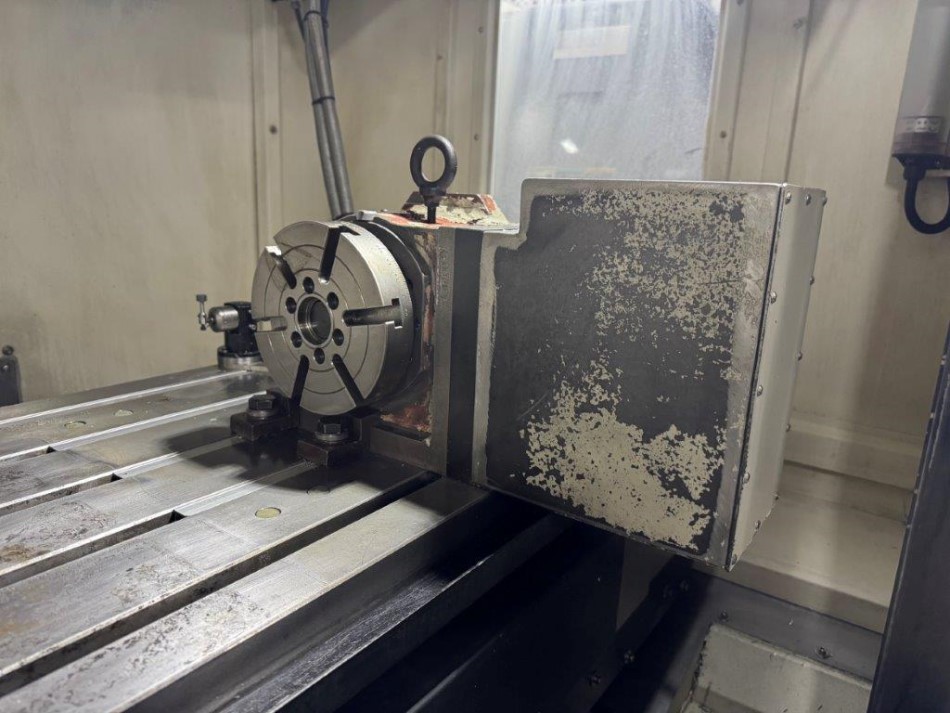

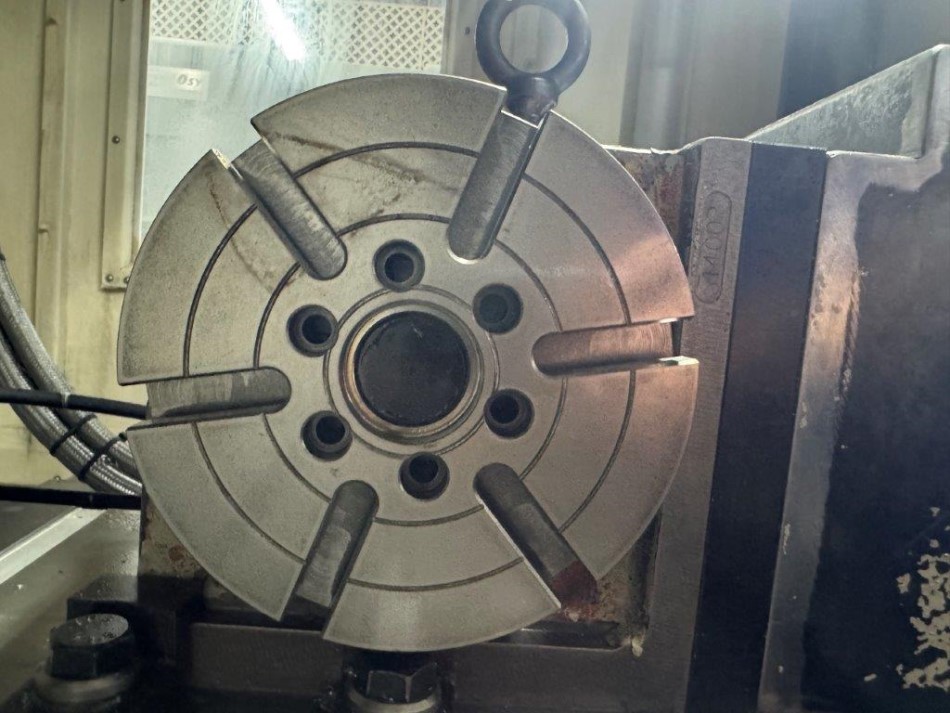

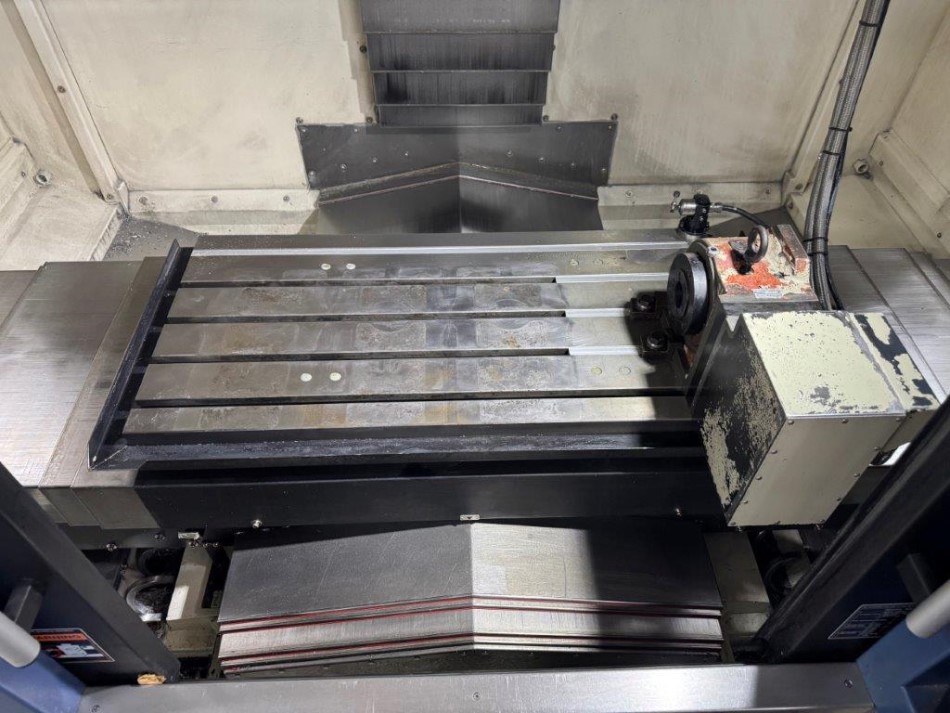

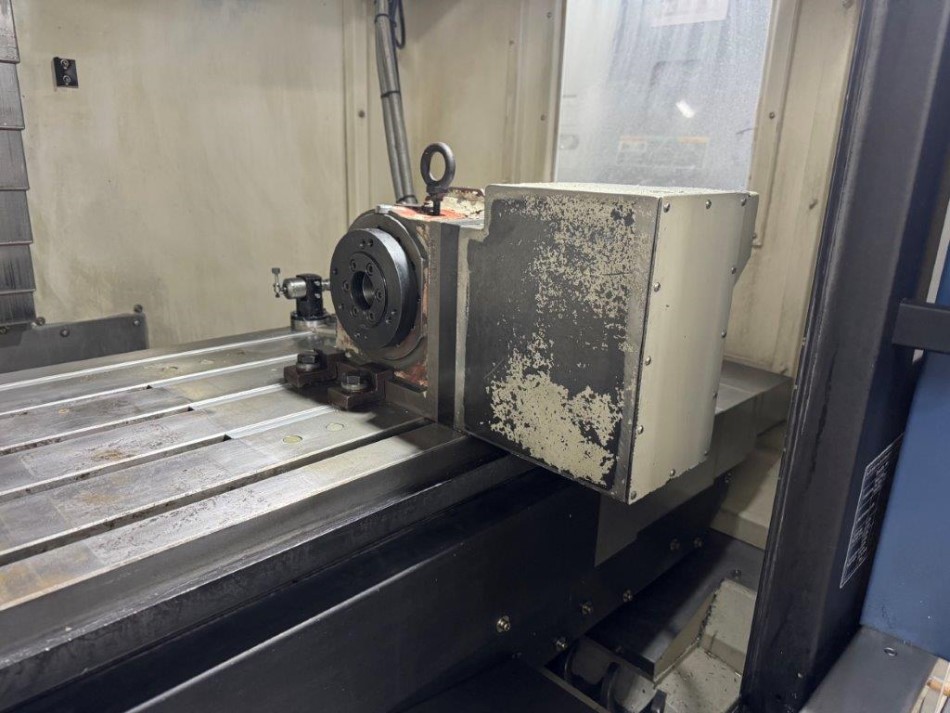

  • YUASA 4th AXIS ROTARY TABLE, 7”. Installed on Machine
