| SPECIFICATIONS | DESCRIPTION |
|---|---|

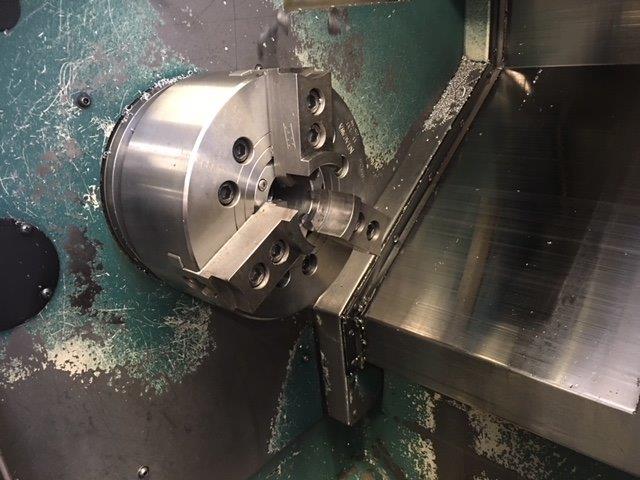

| CHUCK ZISE | 8" |
| SWING | 15.75" |
| SWING OVER SADDLE | 11.01" |
| MAXIMUM MACHINING DIAMETER | 11" |
| DISTANCE BETWEEN CENTERS | 18" |
| SPINDLE NOSE | A2-5 |
| HOLE THRU SPINDLE | 2.4" |
| BAR CAPACITY | 2.00" |
| X AXIS TRAVEL | 6.39" |
| Z AXIS TRAVEL | 13.39" |
| RAPID TRAVERSE RATES X/Z | 630 / 945 IPM |
| SPINDLE SPEEDS | 50-4500 RPM |

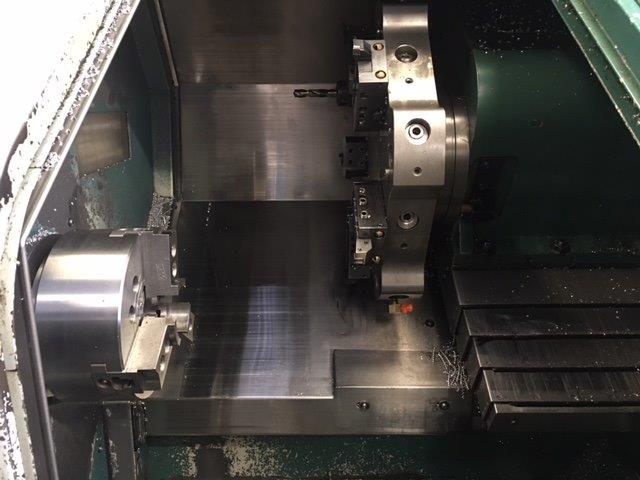

| TURRET TOOL POSITIONS - VDI | 10 |
| MAIN MOTOR DRIVE | 20HP |
| WEIGHT | 6,000 LBS. |
| DIMENSIONS | 83" x 60" x 68" |
| POWER | 220V / 3 PHASE / 60HZ |
