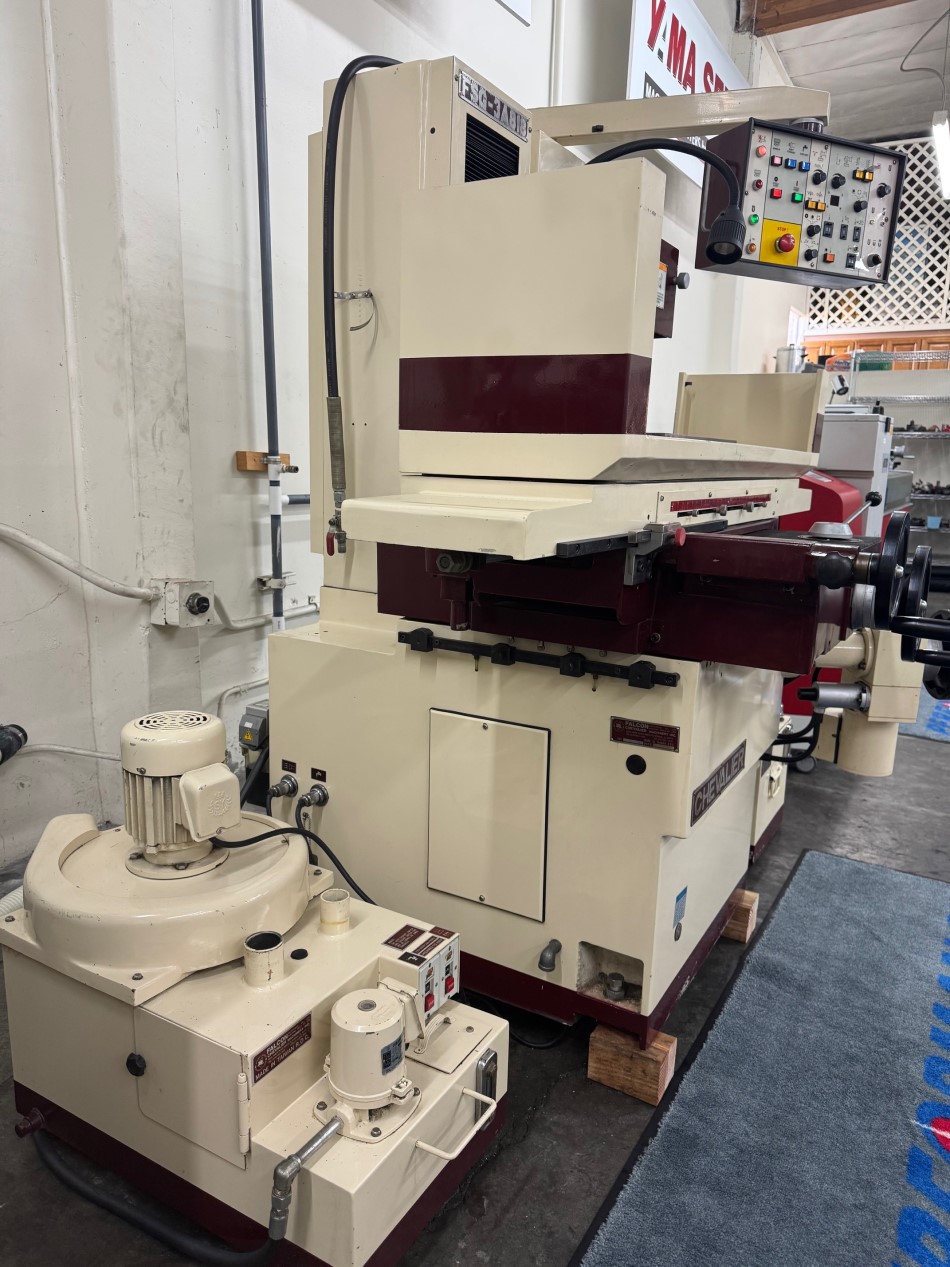

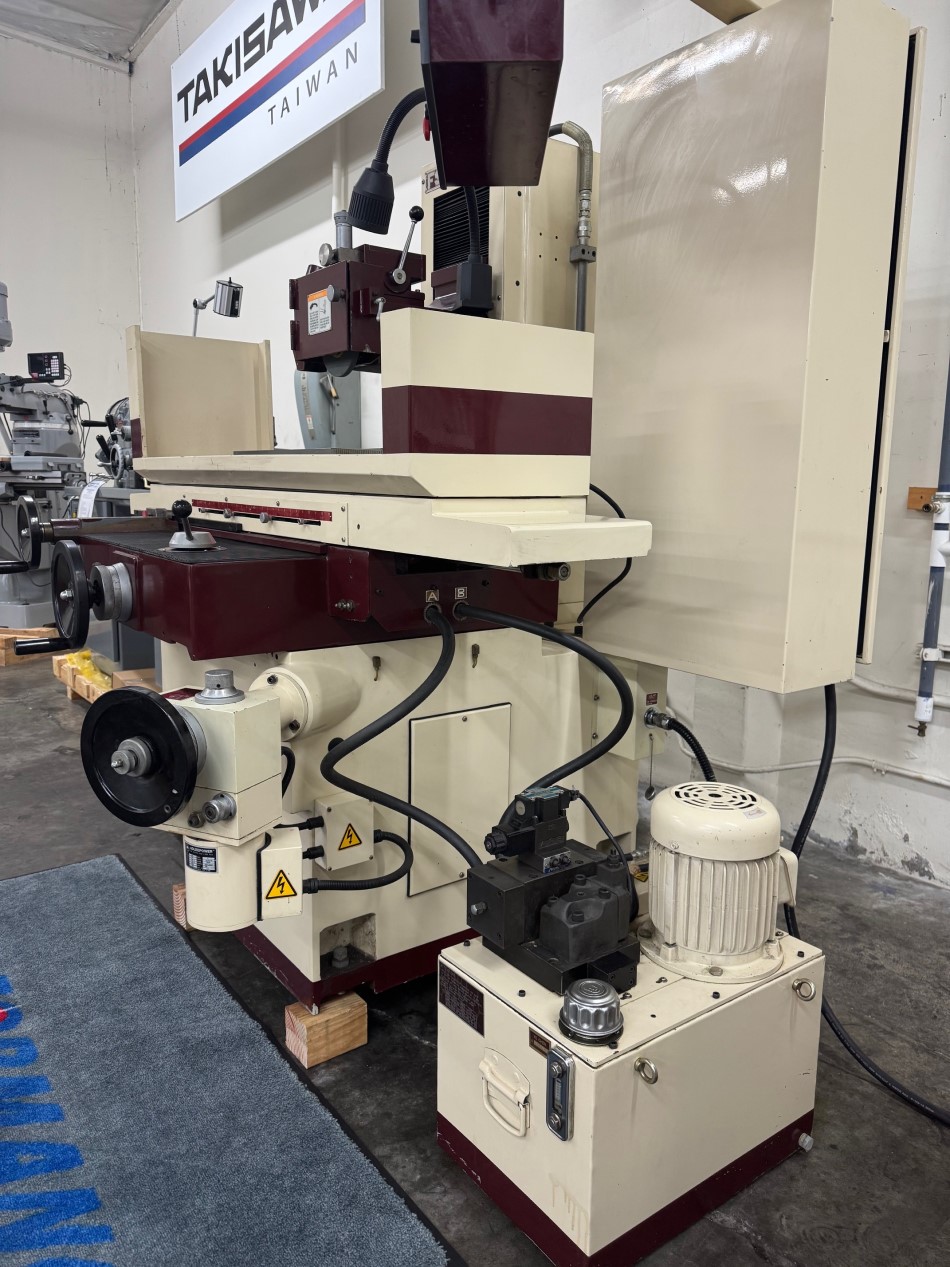

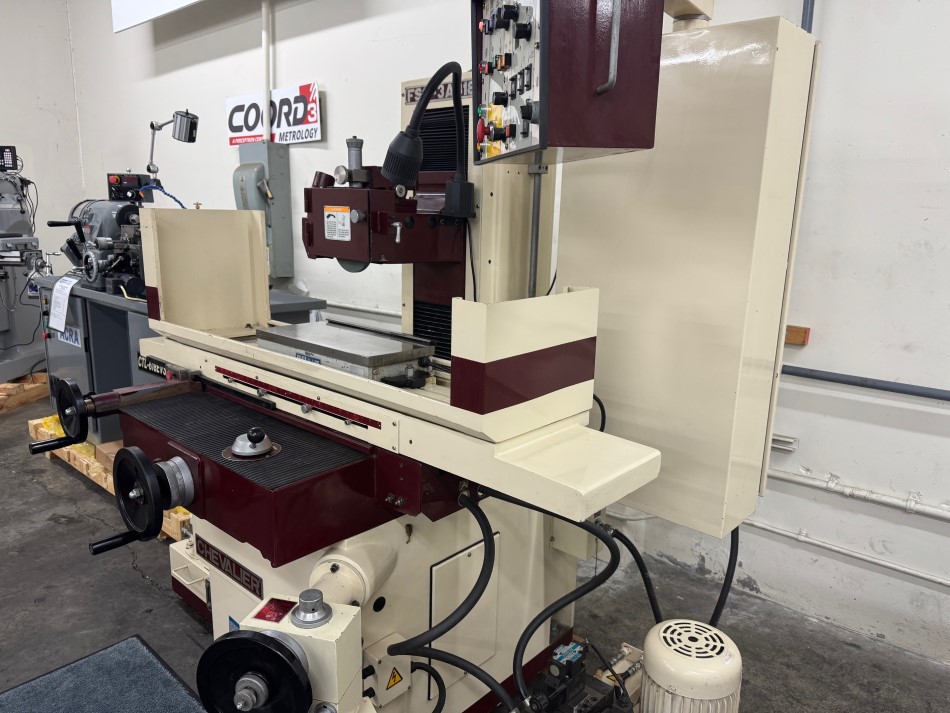

Click to view larger photo
| SPECIFICATIONS: | |
|---|---|
| MAXIMUM GRINDING LENGTH | 18" |
| MAXIMUM GRINDING WIDTH | 8" |
| MAXIMUM TABLE TRAVEL | |
| LONGITUDINAL | 21" |
| CROSSFEED | 9-1/2" |
| MAXIMUM DISTANCE BETWEEN SPINDLE CENTER TO TABLE SURFACE | 18" |

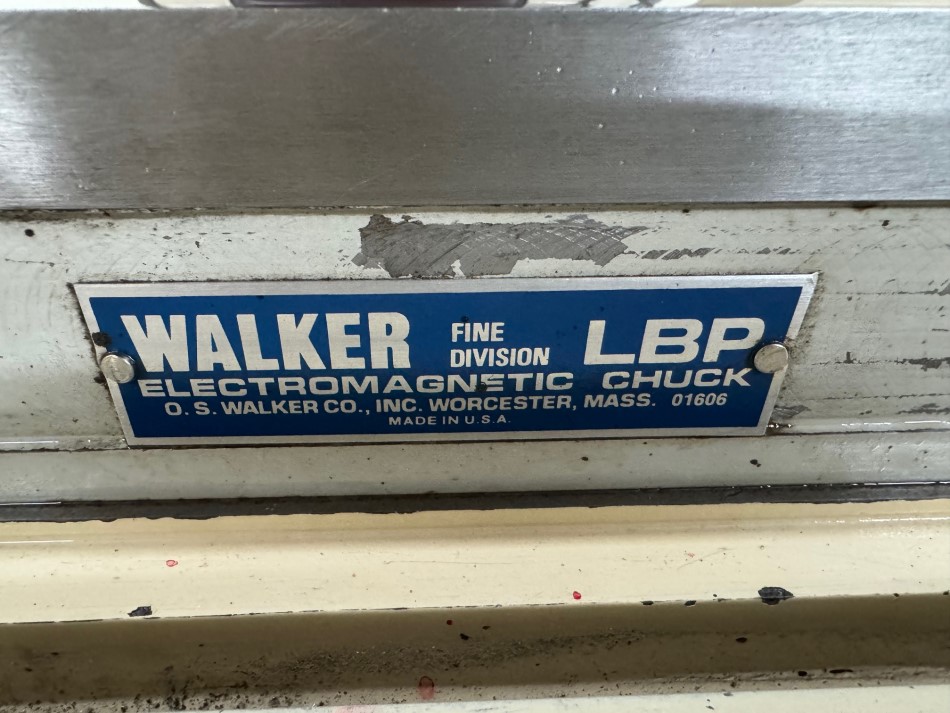

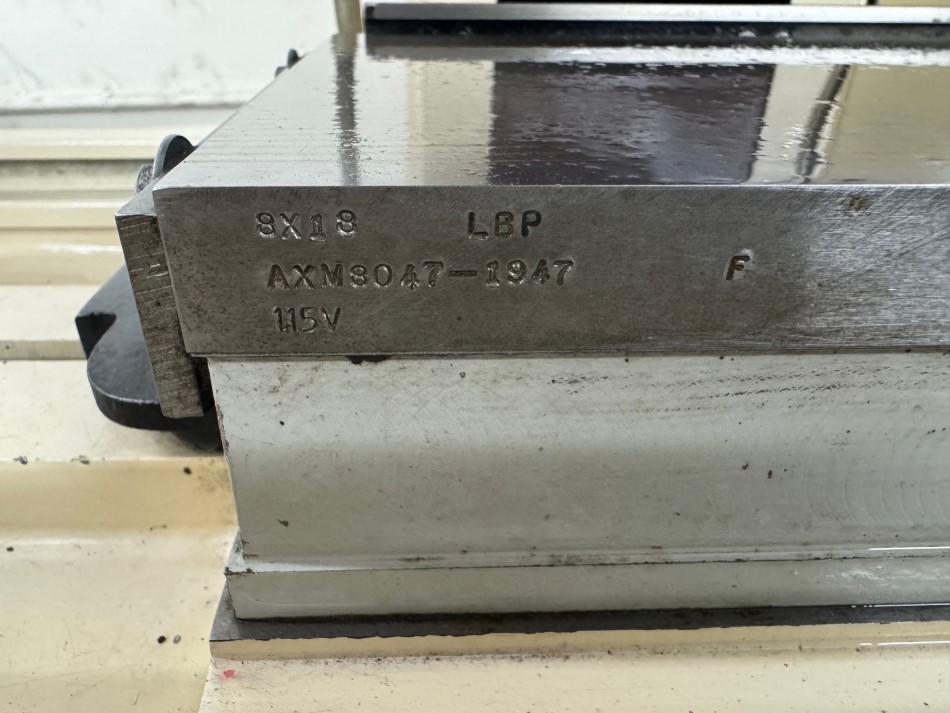

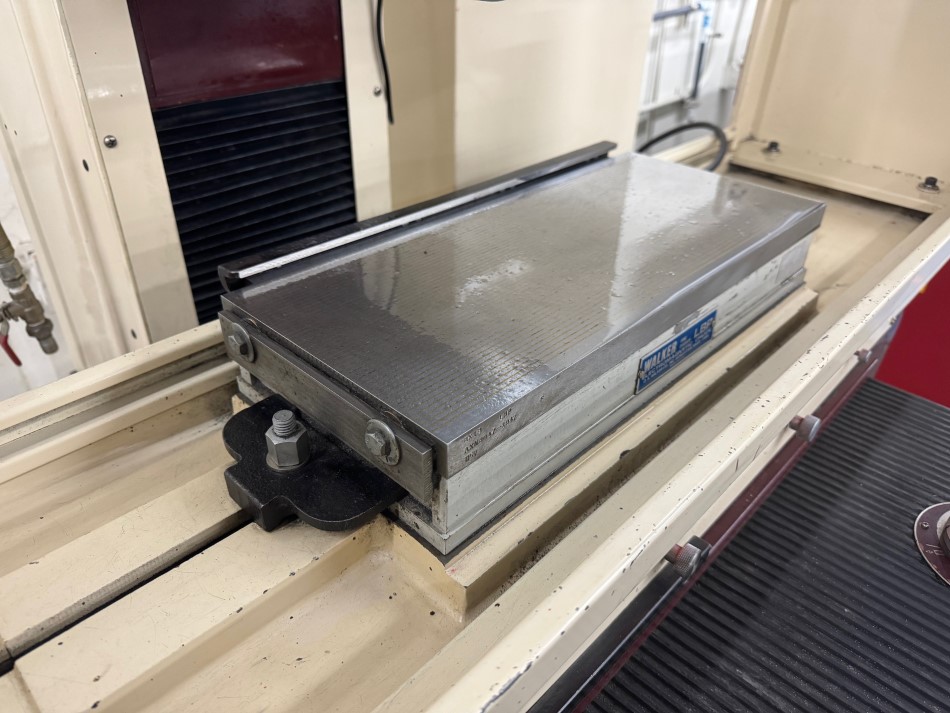

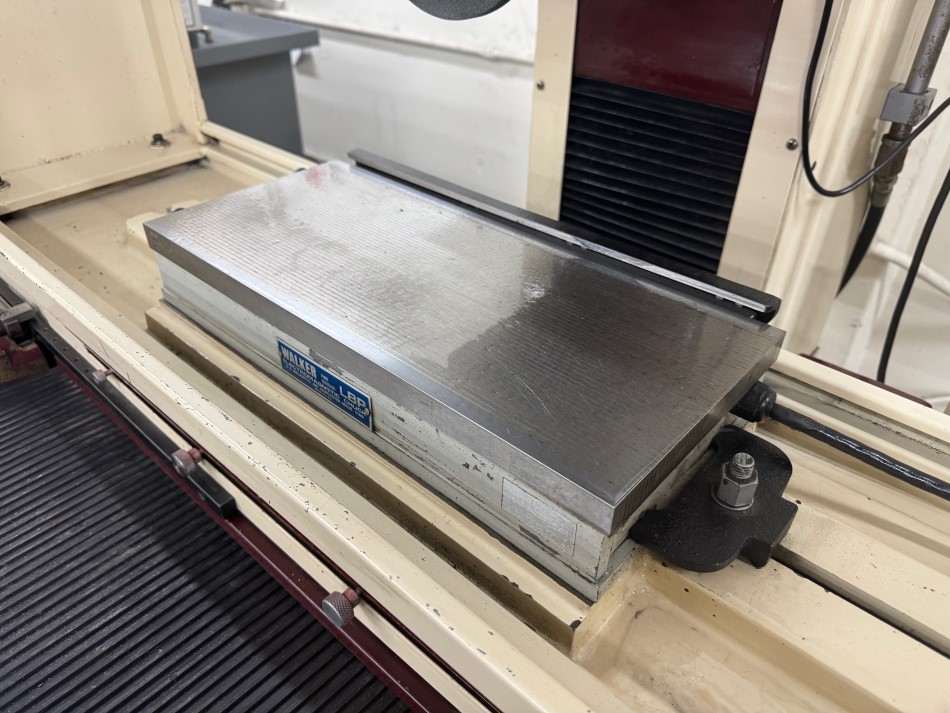

| SUITABLE MAGNETIC CHUCK SIZE | 8" x 18" |
| TABLE FEED SPEEDS | |
| LONGITUDINAL | MANUAL OR 16-82 FPM |
| CROSSFEED (INTERMITTENT) | MANUAL OR 0.04"-0.4" |
| SPINDLE AND MOTOR | |
| DIRECTLY DRIVEN | 2 HP/ 3PH/ 3450 RPM |
| HYDRAULIC PUMP MOTOR | 1 HP/3PH/1720 RPM |

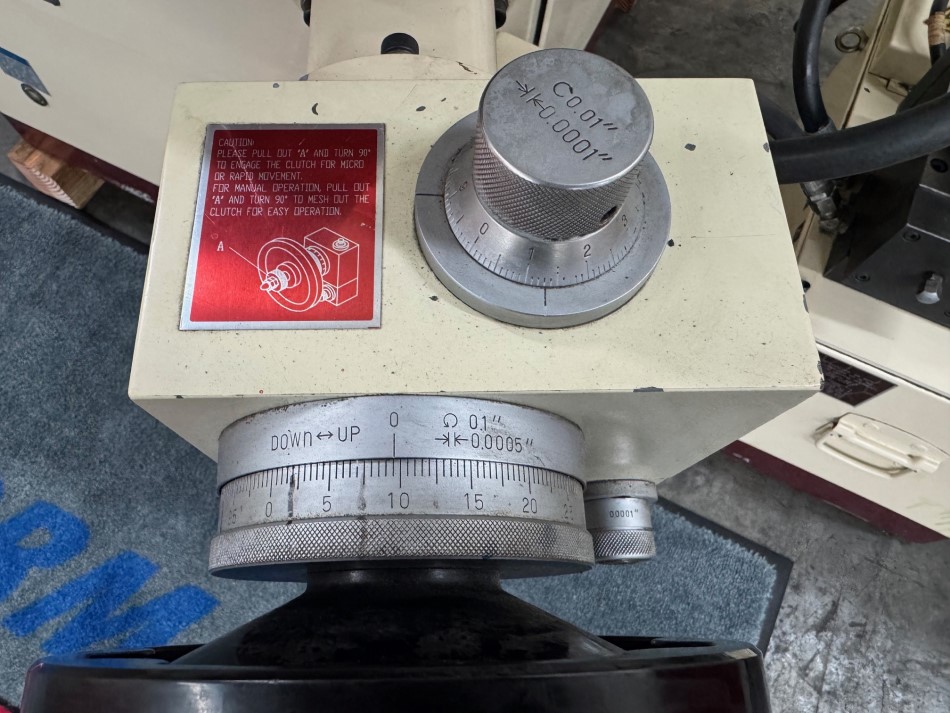

| DOWNFEED HANDWHEEL | |
| PER GRADUATION | 0.0005" |
| PER GRADUATION (MICROFEED) | 0.0001" |
| CROSSFEED HANDWHEEL | |
| PER GRADUATION | 0.001" |
| PER REVOLUTION | 0.200" |

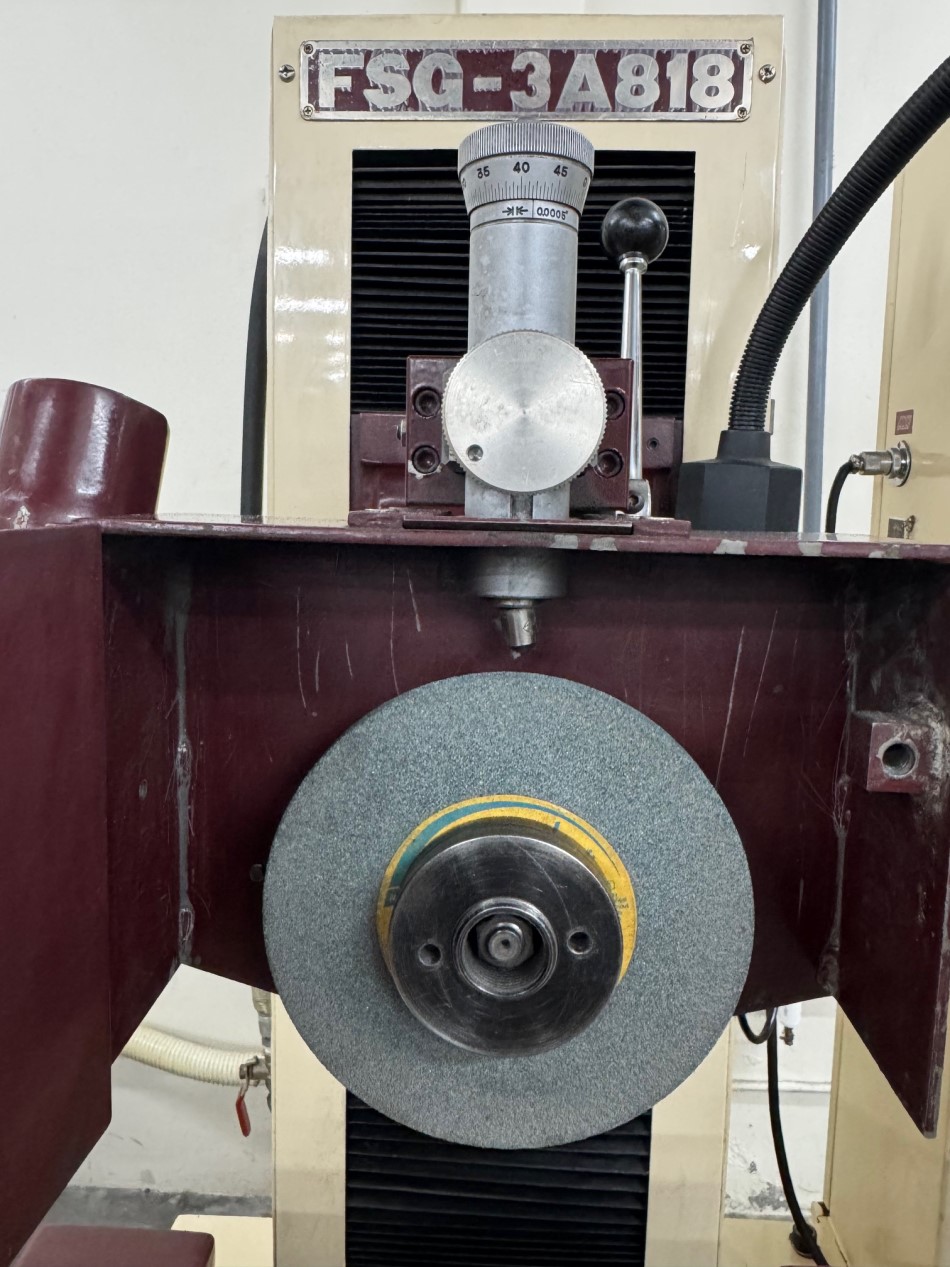

| GRINDING WHEEL SIZE | |
| DIAMETER | 8" |
| WIDTH | 1/2" |
| HOLE SIZE | 1-1/4" |
| POWER | 230V / 3 PHASE |
| WEIGHT | 2910 LBS. |
| ACCESSORIES INCLUDED: | |
| ONE GRINDING WHEEL & HUB | SPLASH GUARD & NOZZLE |
| MICRO DOWNFEED DEVICE (0.0001") | AUTOMATIC LUBRICATOR |
| LED MACHINE LAMP | TOOL BOX AND TOOLS |
EQUIPPED WITH:
FEATURES:
