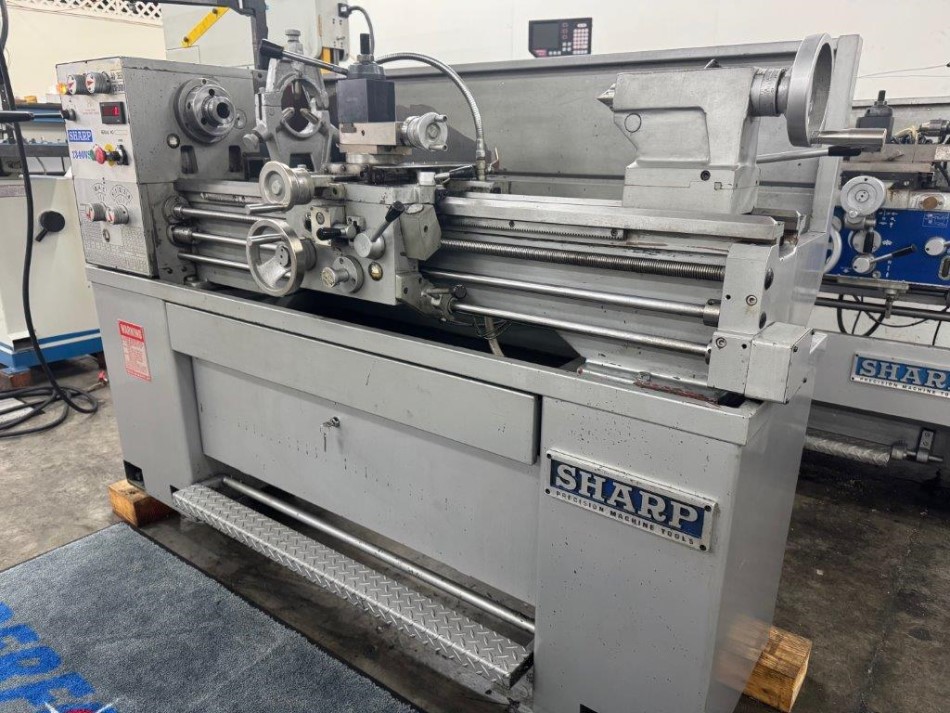

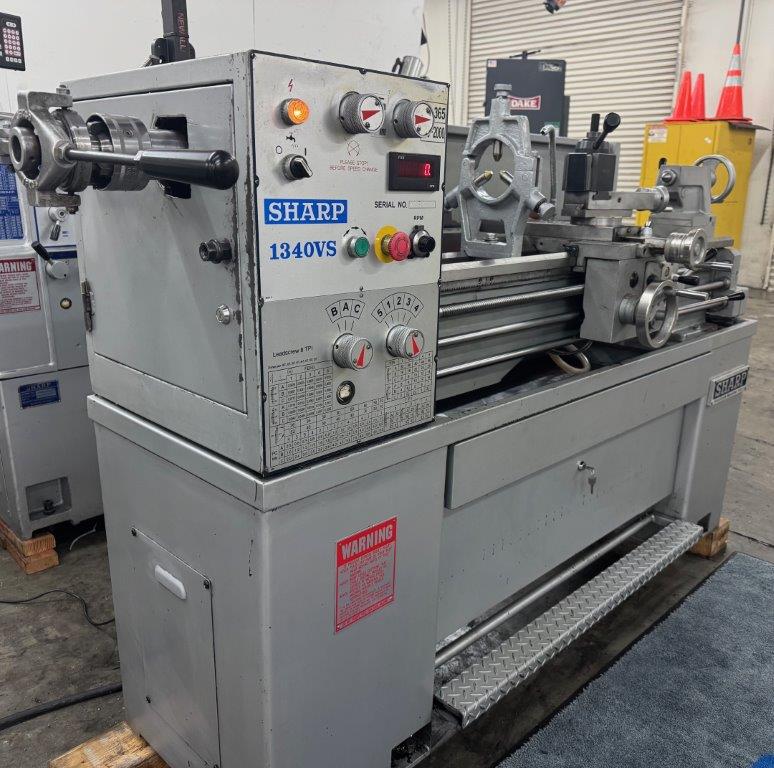

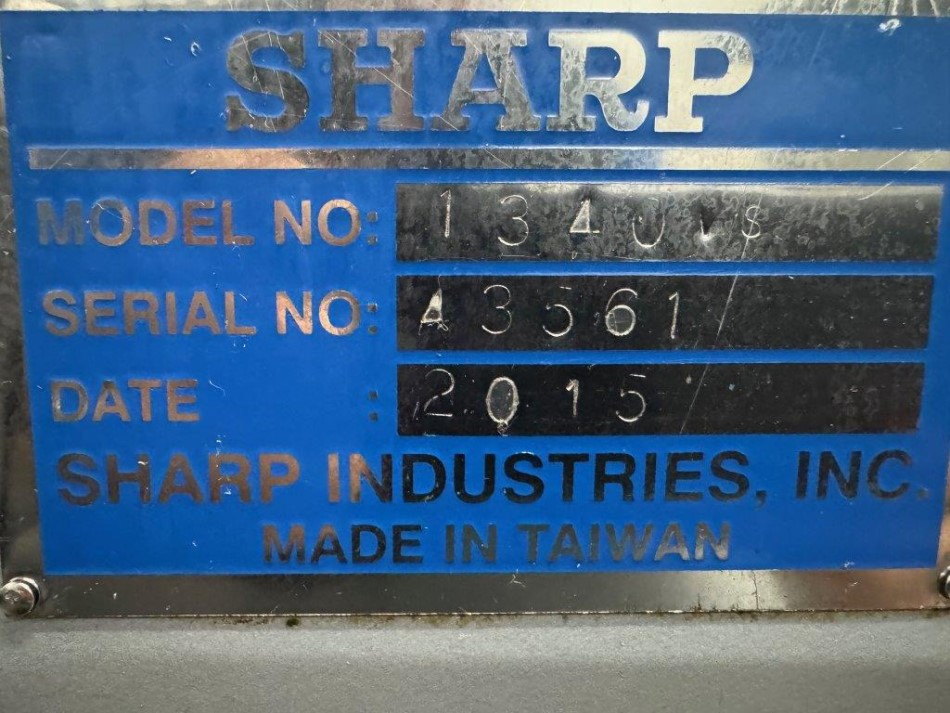

SHARP 1340VS VARI-SPEED ENGINE LATHE - YEAR: 2015
Stock Number: 621
| SPECIFICATIONS: |
| CAPACITY |
13" X 40" |
| SWING IN GAP |
18 1/2" |
| BED WIDTH |
7 1/2" |
| SPINDLE NOSE |
D1-4 CAMLOCK |
| SPINDLE SPEEDS – VARIABLE |
40-2,000 RPM |
| SPINDLE BORE |
1 9/16 |
| CROSS SLIDE TRAVEL |
6 3/4" |
| TAILSTOCK |
|
| QUILL TRAVEL |
4" |
| QUILL DIAMETER |
1 9/16" |
| QUILL TAPER |
3MT |

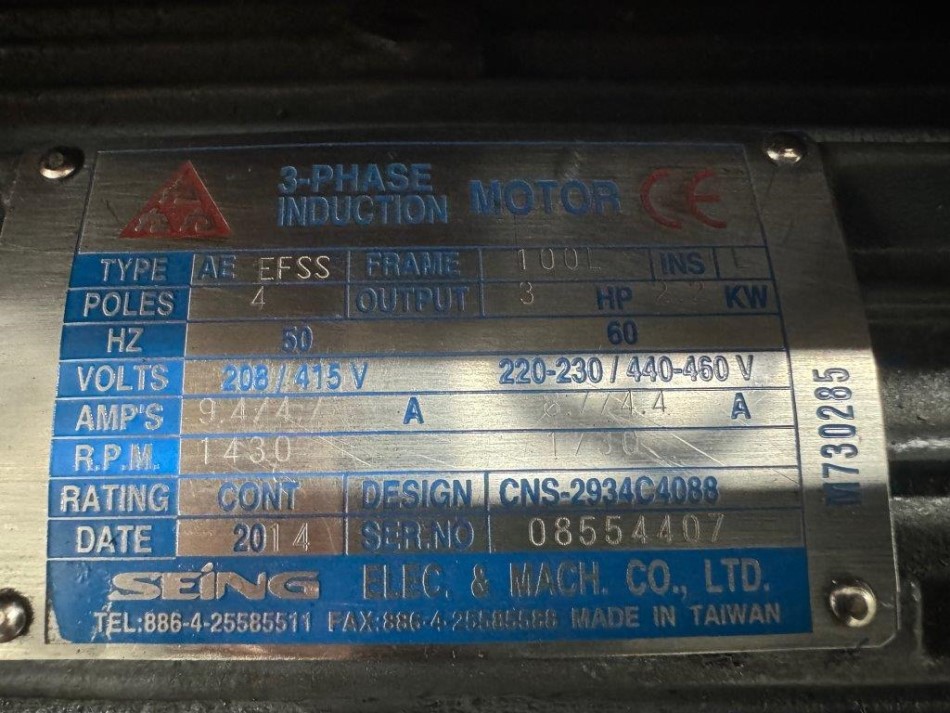

| SPINDLE MOTOR |
3 HP |
| NET WEIGHT |
1,550 LB |

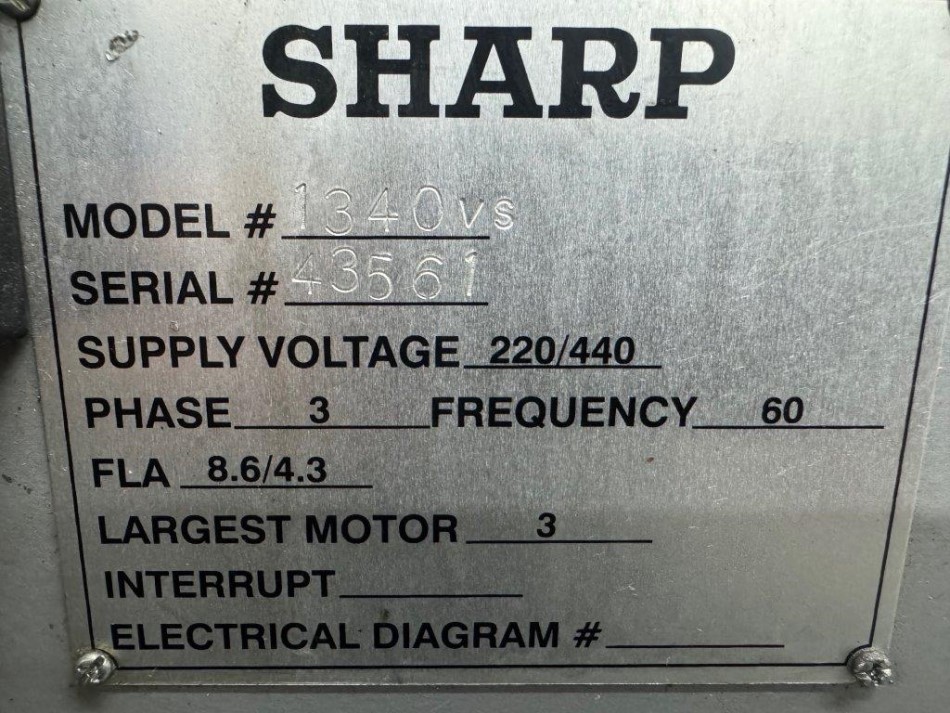

| VOLTAGE |
208-240/ 3 Phase |
FEATURES:
- BXA QUICK CHANGE TOOLPOST & 5 HOLDERS

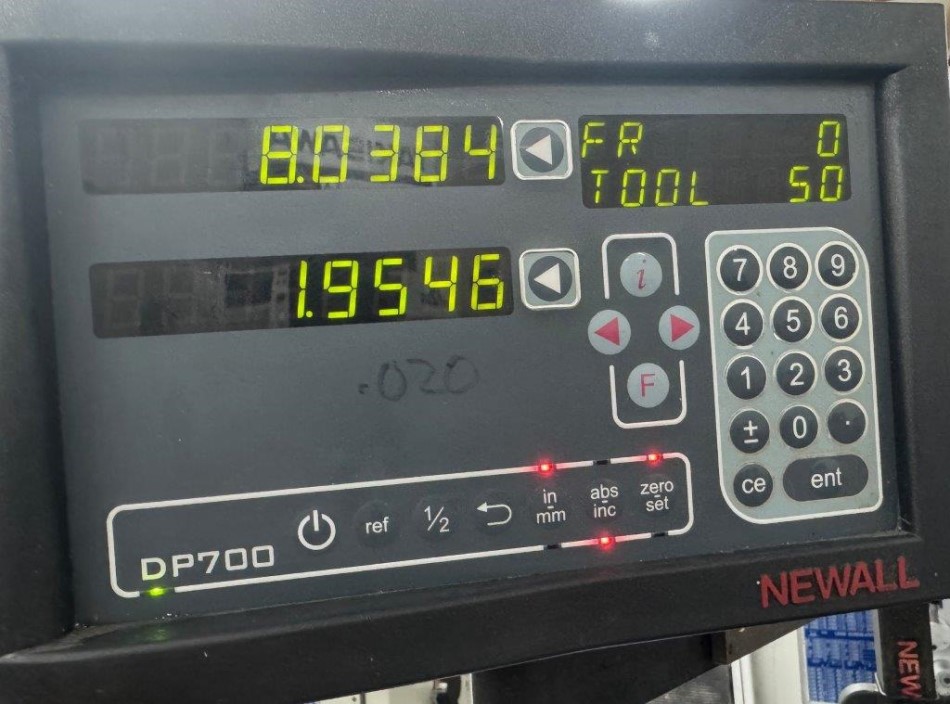

- NEWALL C-80 2 AXIS DRO SYSTEM

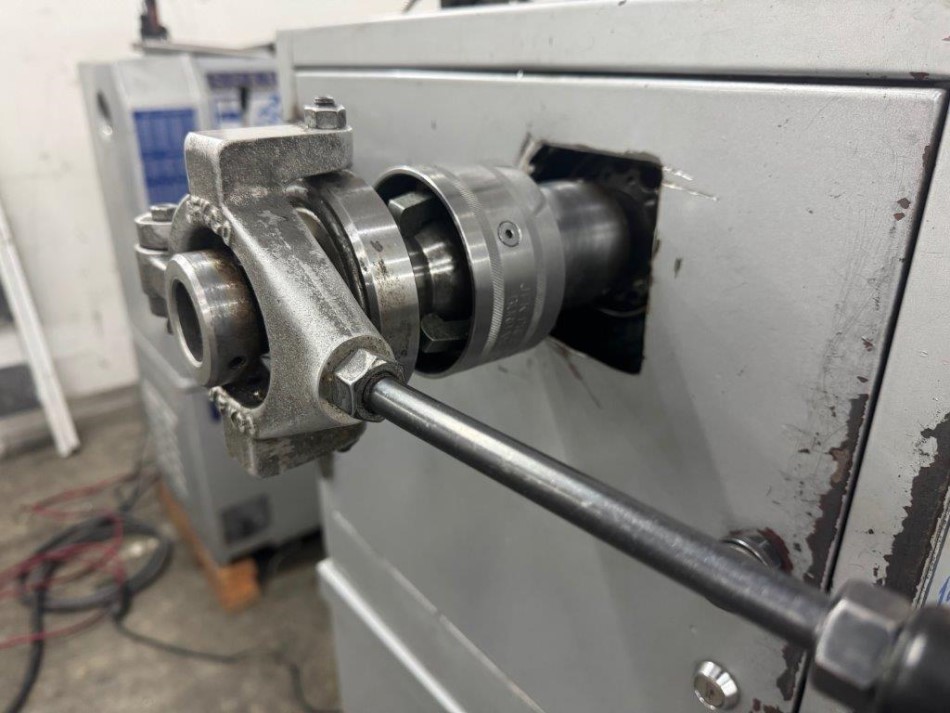

- 5C LEVER STYLE COLLET CLOSER
- INCH/METRIC DIALS AND THREADING
- REAR SPLASHGUARD
- WORKLIGHT
- FLOOD COOLANT

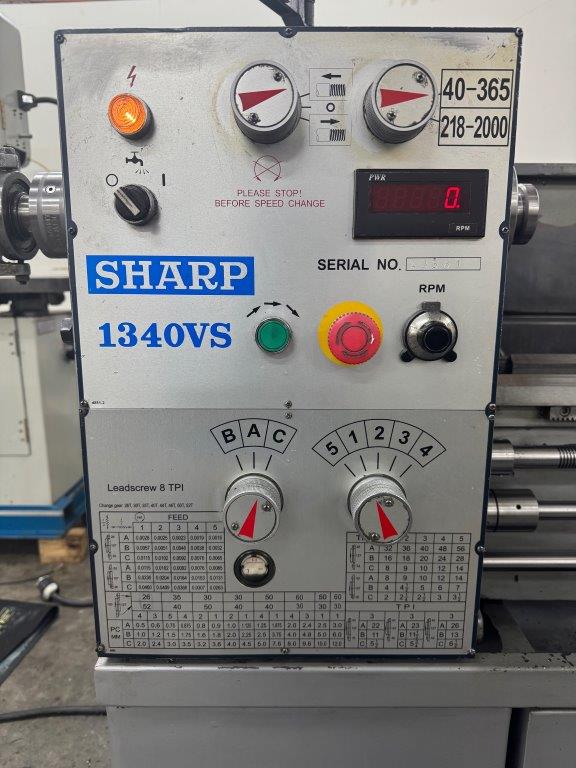

- VARI-SPEED SPINDLE DRIVE – 2 RANGES + AC INVERTER
- 8” 3 JAW CHUCK

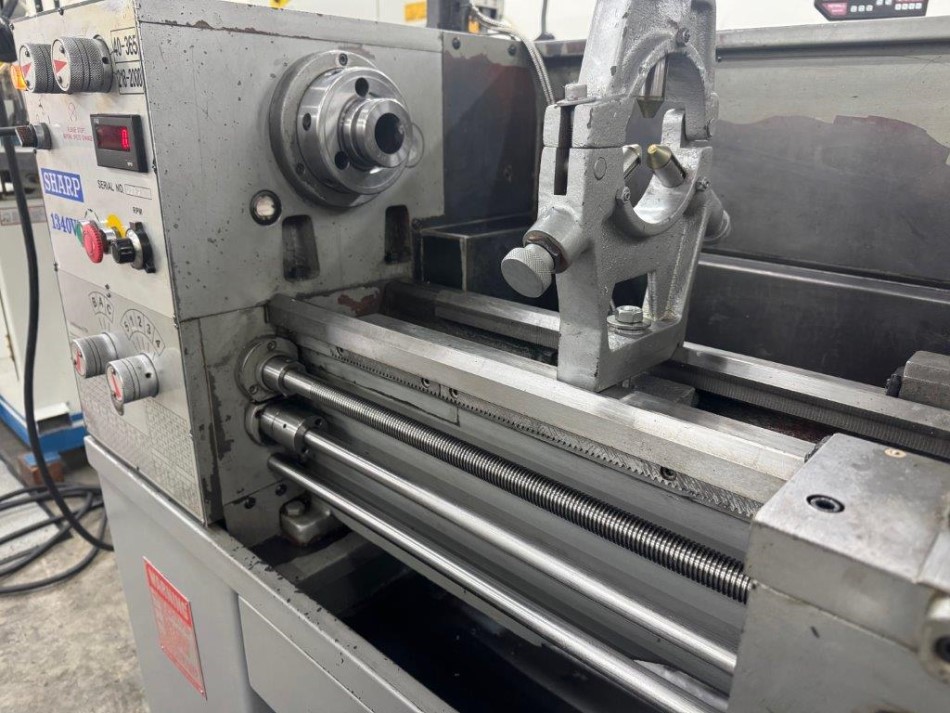

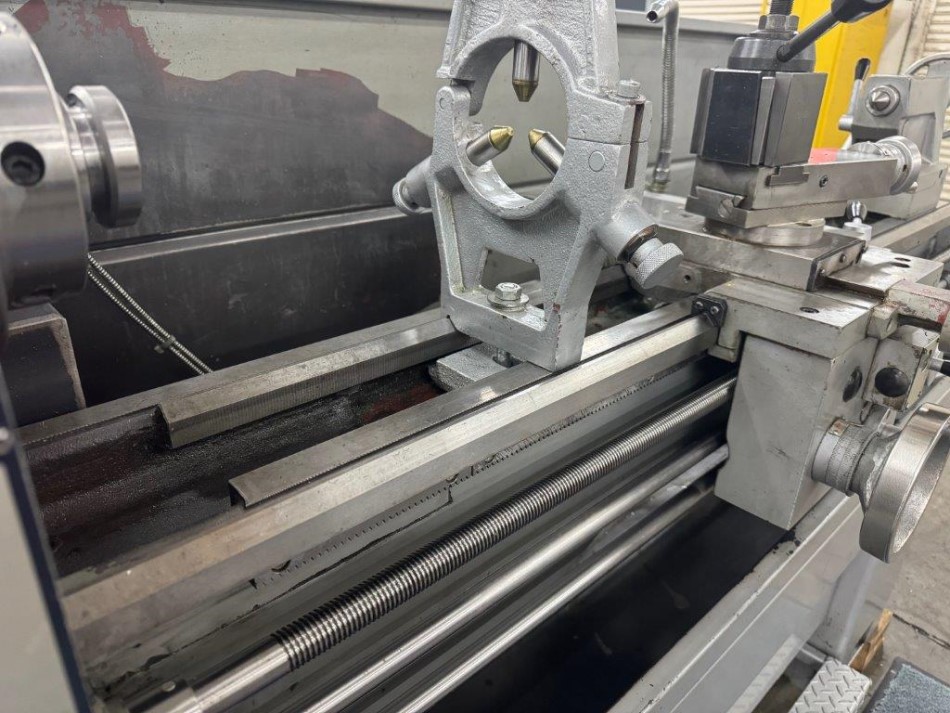

- STEADY REST
- FOOT BRAKE
- CENTERS
- AC INVERTER ALLOWS SINGLE OR 3 PHASE ELECTRICAL POWER
- PULL OUT CHIP PAN

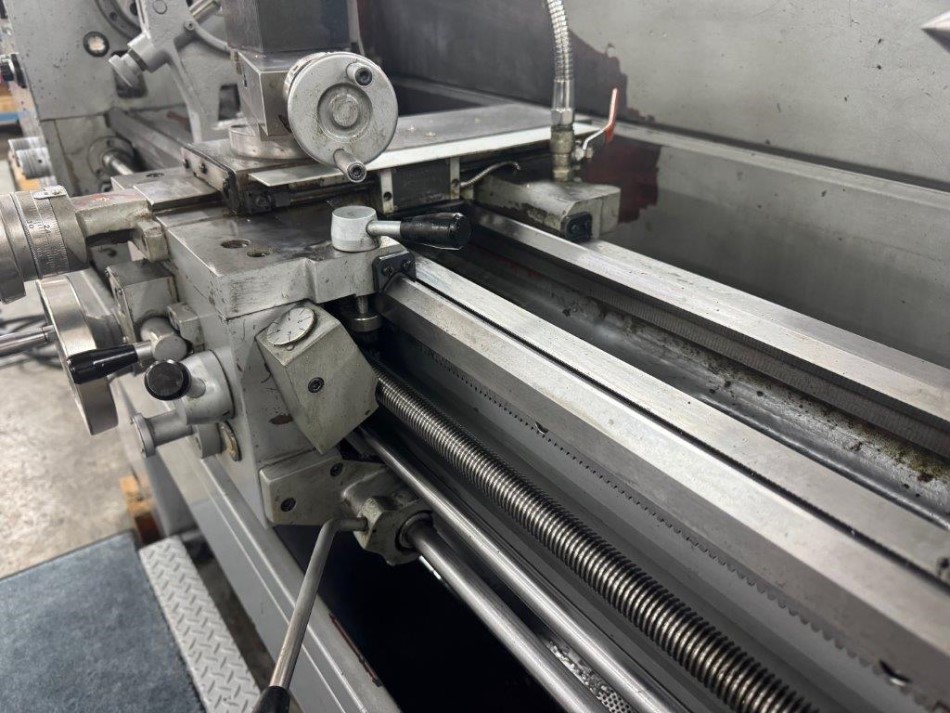

- MICRO CARRIAGE STOP
