TRAK DPM BED MILL with ProtoTRAK MX3 CONTROL - YEAR: 1995
Stock Number: 615
Mfg: TRAK DPM
Click to view larger photo
| SPECIFICATIONS: |

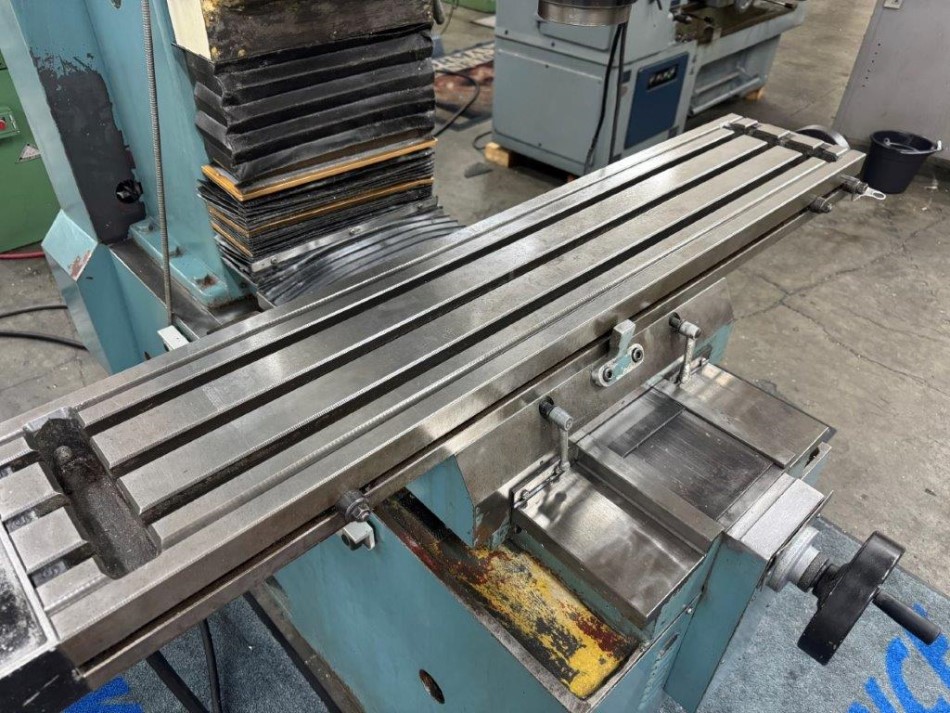

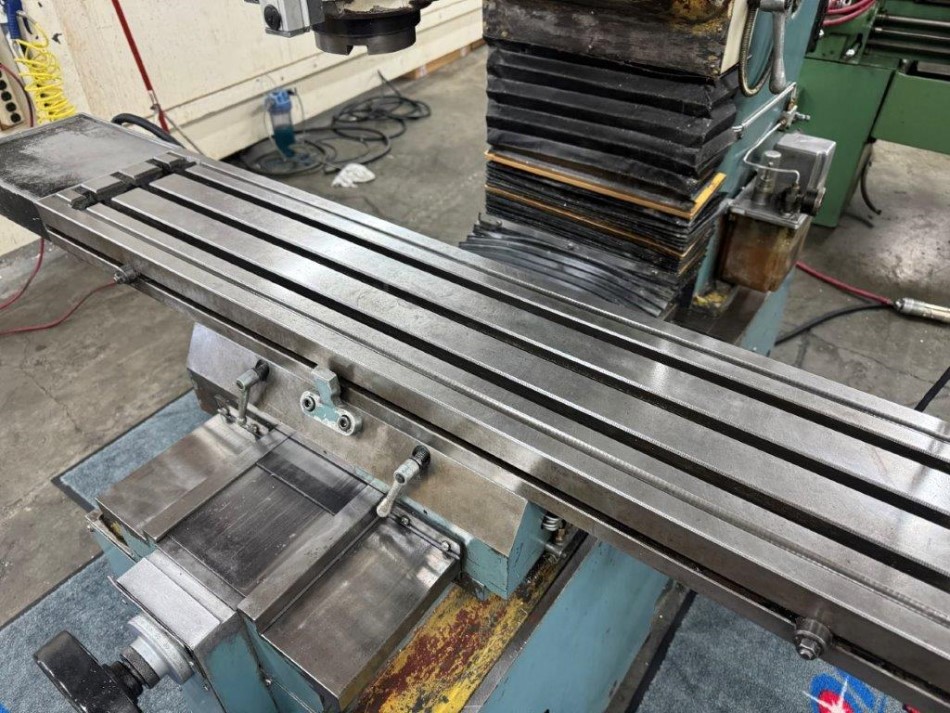

| TABLE SIZE |
10" x 50" |
| T-SLOTS (WIDTH x NO. x PITCH |
5/8" x 3" x 2-9/16" |
| TRAVEL (X, Y, Z) |
31" x 17" x 23.5" |
| QUILL DIAMETER |
3 15/16" |
| SPINDLE TAPER |
#40 |
| SPINDLE SPEED RANGE |
70-4200 RPM |
| SPINDLE NOSE TO TABLE |
0-24" |
| SPINDLE CENTER TO COLUMN FACE |
17.3" |
| MAXIMUM QUILL TRAVEL |
5" |
| HEAD SWIVEL RIGHT AND LEFT |
90 DEGREE |
| QUILL FEED PER REV. IN AUTO FEED |
0.002, 0.004, 0.006 inch/rev |

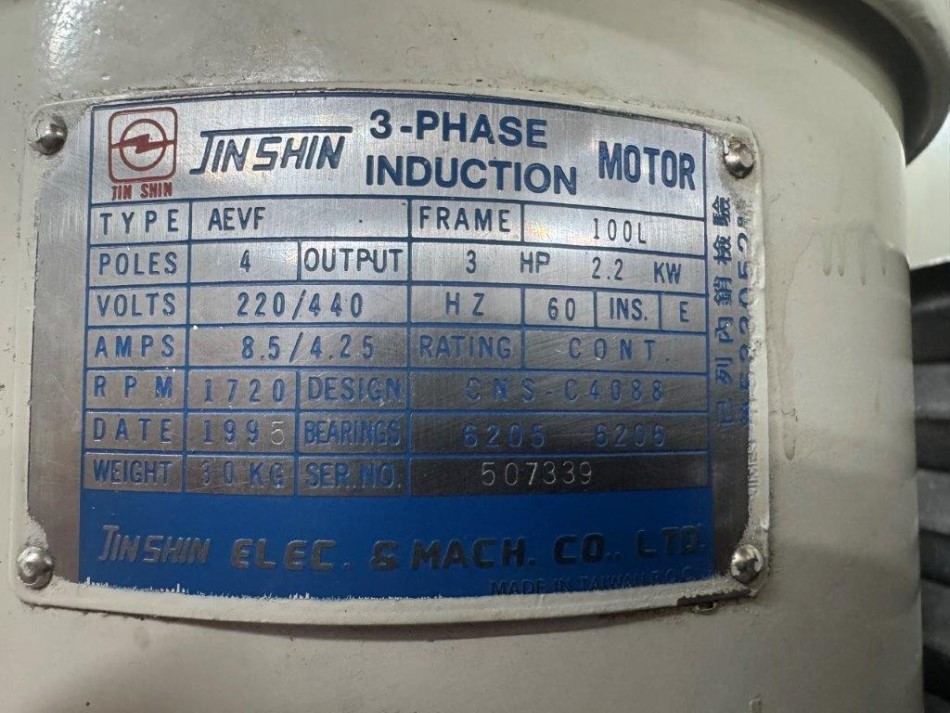

| SPINDLE MOTOR |
3 HP |
| POWER REQUIREMENTS |
50 HZ/60 HZ; 3 PHASE; 220V; 8.6 AMP |
| MAXIMUM WEIGHT ON TABLE |
1320 LB |
| MACHINE WEIGHT |
4070 LB |
| WAY SURFACE |
DOVETAIL X-AXIS; SQUARE WAYS Y AND Z-AXIS |
EQUIPPED WITH:
- PROTOTRAK MX3 CONTROL WITH CONVERSATIONAL PROGRAMMING
- PRECISION GROUND BALLSCREWS IN THE TABLE AND SADDLE ENSURE SMOOTH
- ACCURATE CONTOURS WITHOUT BACKLASH
- ONE-PIECE BED THAT CONTACTS THE FLOOR IN SIX PLACES FOR RIGIDITY AND STABILITY
- SOLID ONE-PIECE RAM COUNTERBALANCED FOR EASY POSITIONING
- AUTO LUBRICATION SYSTEM TO WAYS AND BALLSCREWS MEEHANITE CASTING
- WAY COVERS ON THE RAM AND SADDLE

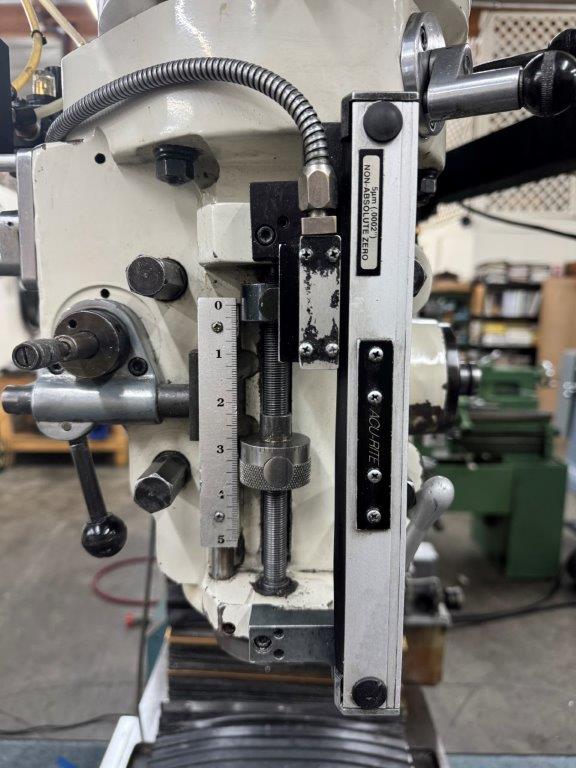

- Z-AXIS GLASS SCALE ON THE QUILL (ACU-RITE)
- PUSH BUTTON AUTOMATIC POWER DRAWBAR
- REMOTE HANDHELD START STOP SWITCH
- FLOOD COOLANT SYSTEM WITH RESERVOIR IN BASE
